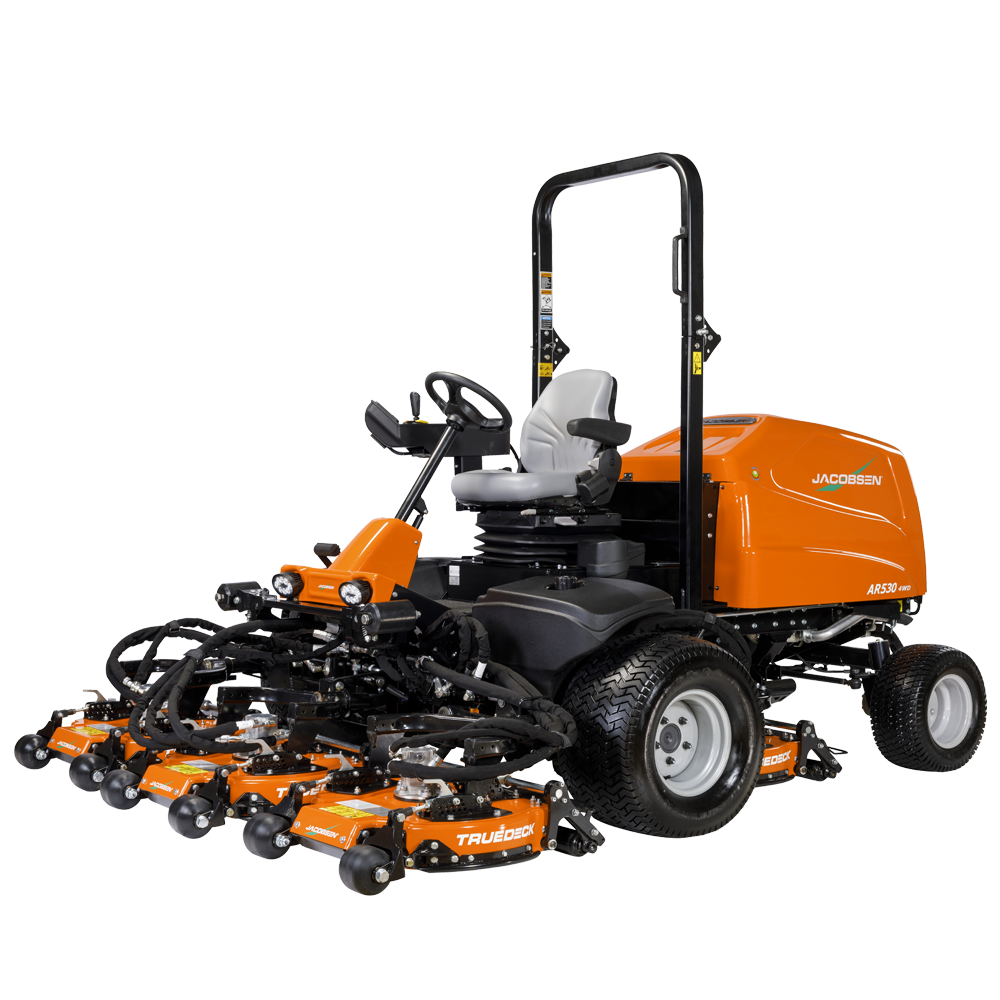

AR530

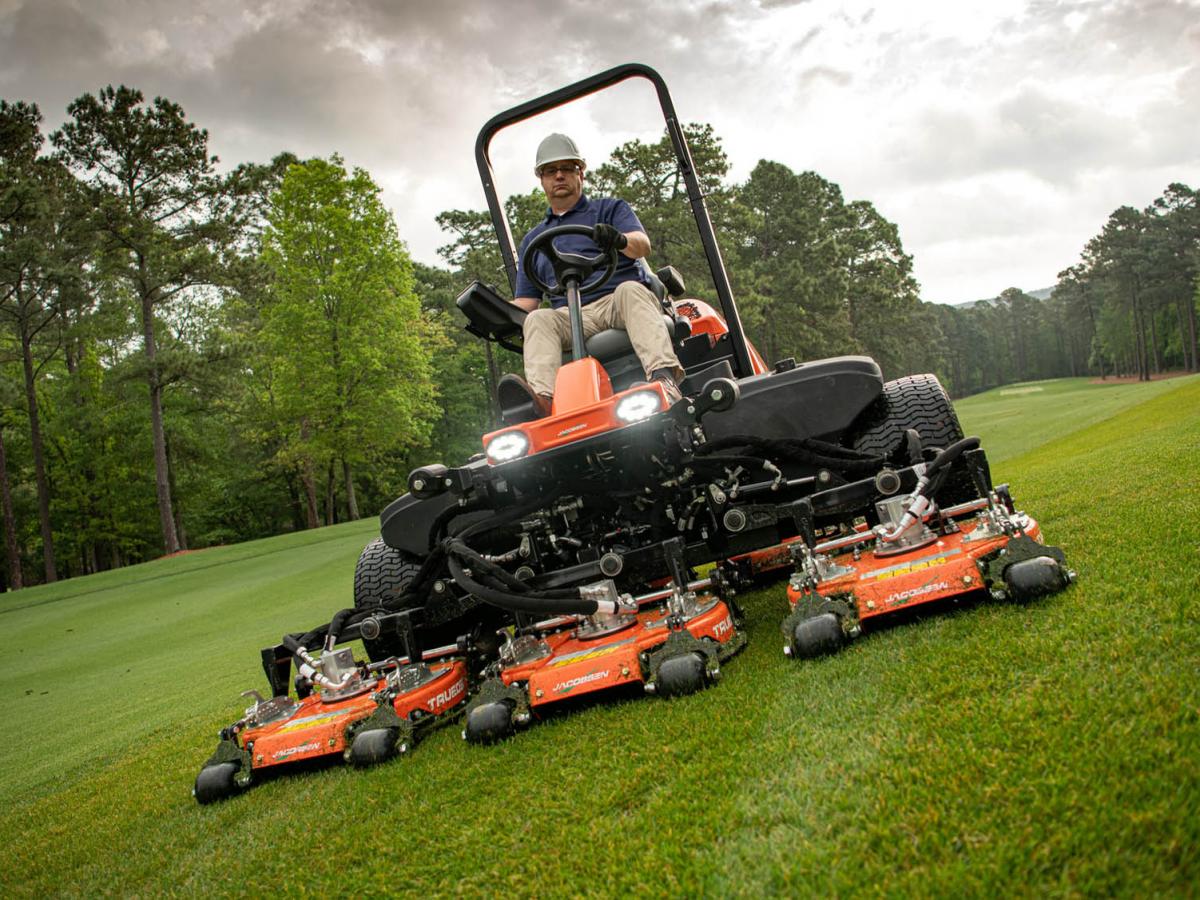

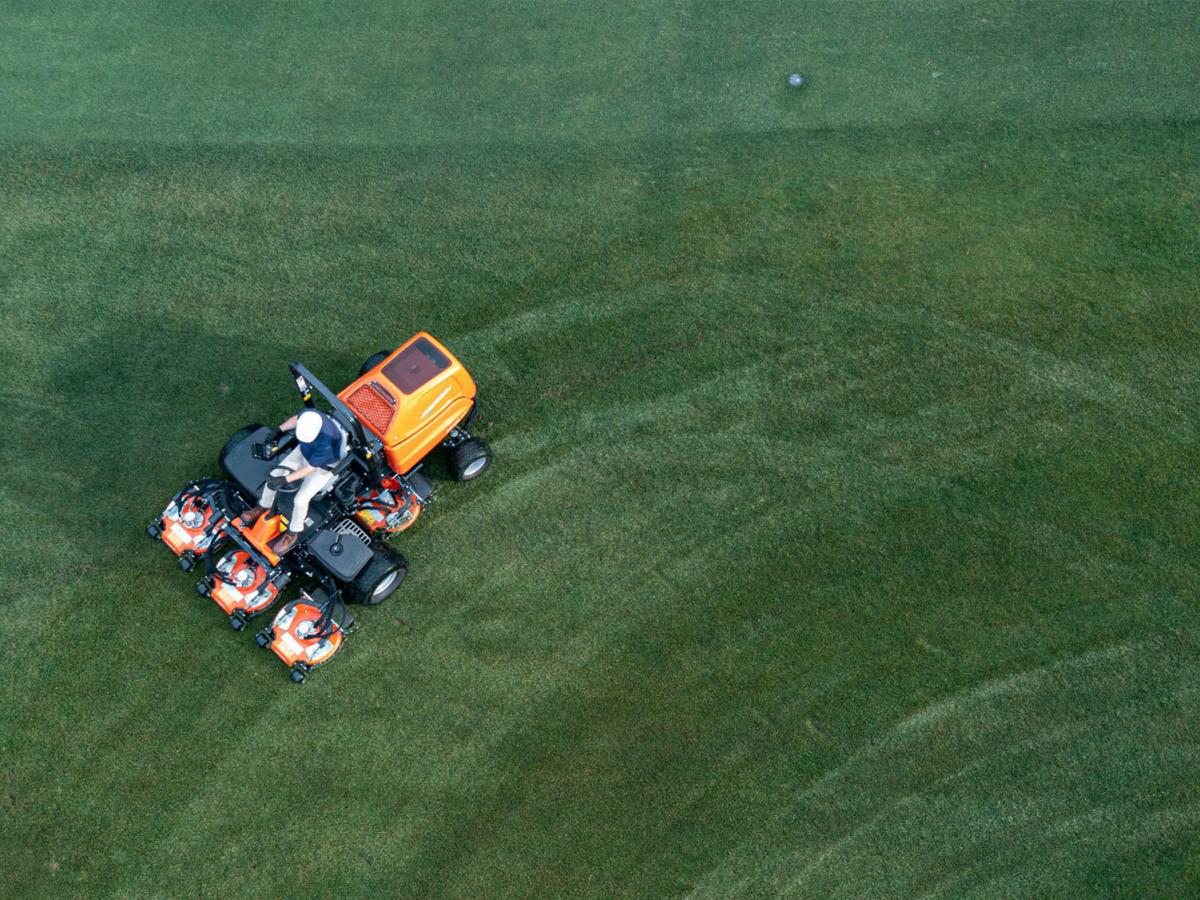

Re-designed from the ground up, the AR530 articulated golf course rough mower is built to give you the best. Improved cut quality, sidehill climbing performance, and operator comfort give you Jake’s Signature Cut Trusted by Generations wherever you need it.
KEY FEATURES
KEY ATTRIBUTES
DECKS AND CUTTING UNITS
TRACTION, BRAKES AND SPEED
WEIGHT AND DIMENSIONS
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 90″ (2.3 m) |
| MOWER HEIGHT OF CUT | 0.75 – 4.5″ (19 – 114 mm) in 0.25″ (6 mm) increment |
| TRANSPORT SPEED | 12 mph (19.3 kph) |
| FUEL / BATTERY CAPACITY (+RUN TIME) | 17 gal. (64.2 L) |

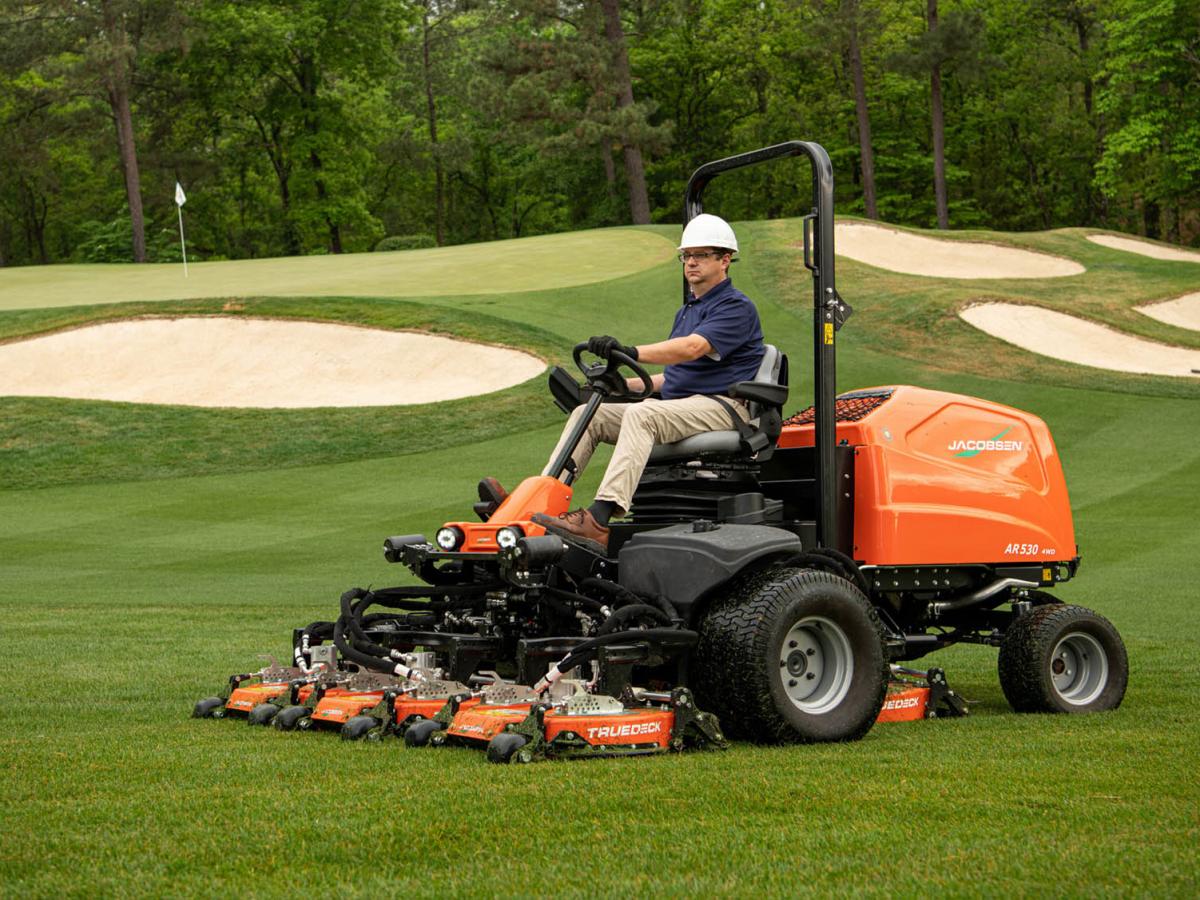

| MOWER ENGINE | Kubota 50.2 HP (37.4 kW) Diesel |
| CUTTING CAPACITY | Up to 5.66 acres/hr at 7 mph (2.29 ha/hr at 11.26 kph) (no overlaps or stops) |
| MOWER WARRANTY | 2 Years |
DECKS AND CUTTING UNITS
| DECKS AND CUTTING UNITS | |
|---|---|

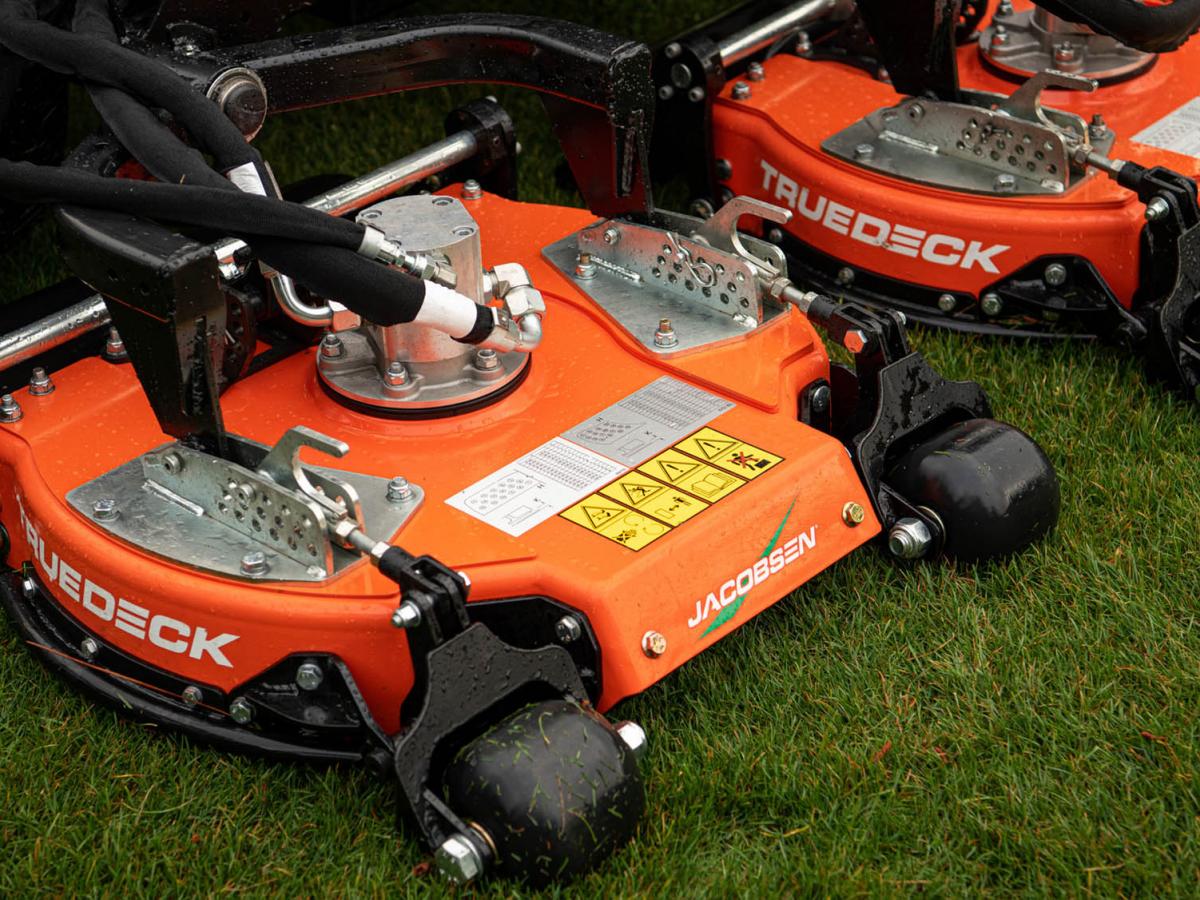

| NUMBER AND SIZE | 5 x TRUEDECK™ 23″ (58.4 cm) rotary cutting units. Equipped for rear-discharge chute and smooth rear roller. Mulching baffle, non-striping rear roller and rear roller scrapers available. |
| BLADE MATERIAL | 5 x 22.4″ (56.8 cm) heat treated alloy combo blades |
| DECK LIFT/LOWER | Hand operated, joystick controlled hydraulic lift system |
| WEIGHT TRANSFER | Adjustable hydraulic weight transfer – automatic electronic activation at operator controls with mow switch. Selectable through control console |
| DECK CONSTRUCTION | 10-gauge, heavy duty modular deck construction |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| TRACTION DRIVE | PSureTrac II™ AWD, a unique parallel hydrostatic system, servo-controlled variable displacement hydro; four high-torque wheel motors; 2WD transport and reverse |
| DECK DRIVE | Fixed displacement, self-lubricating with 1″ (2.54 cm) diameter shaft; double sealed bearings |
| HYDRAULIC SYSTEM | 10 gal. (37.9 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter, 40 gpm. Side-by-side radiator/hydraulic oil cooler |
| SERVICE BRAKES | Dynamic through traction system |
| PARKING BRAKES | No-Maintenance, Integrated Wet Parking Brake |
| STEERING | Rear wheel, hydrostatic power steering with tilt adjustable steering wheel |
| MOWING SPEED | 7 mph (11.3 kph) |
| REVERSE SPEED | 8.7 mph (14 kph) |
| TIRES |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | 3451 lbs. (1565 kg) full fluids |
| LENGTH | 137.5″ (3.49 m) |
| HEIGHT (ROPS UP) | 91.6″ (232.6 cm) |
| WHEEL BASE | 63″ (1.6 m) |
| TRANSPORT WIDTH | 88.6″ (2.25 m) |
| WORKING WIDTH | 95.3″ (2.42 m) |
| FLUID CAPACITIES | – |
