STARTRACSCISSOR LIFT

STARTRAC SCISSOR LIFT

STARTRAC SCISSOR LIFT

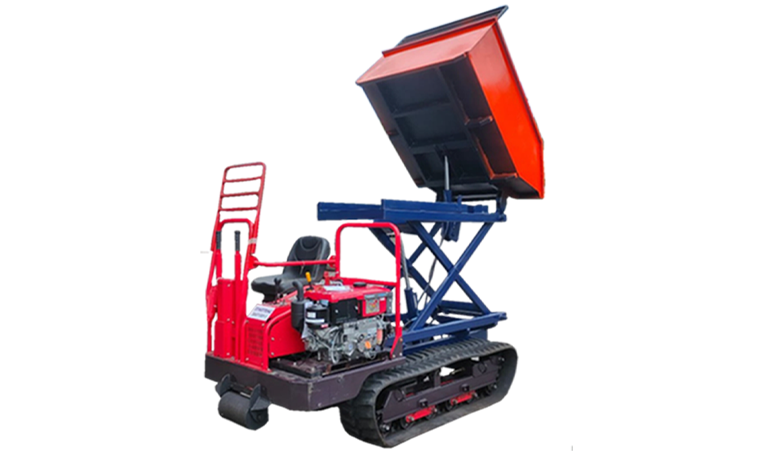

Startract STARTRAC SCISSOR LIFT adalah alat atau mesin yang berfungsi sebagai pengumpul buah sawit pada area pekebunan sawit (infeiled sawit). Pengoprasian mudah dan tahan di segala kondisi lapangan.

DESCRIPTIONSPECIFICATION
BUCKET
MODEL Scissor Lift Hydraulic Dump
Bucket Capacity 750 Kgs
Bucket Material Mild Steel
Bucket Size ( L x W x H ) 1660 x 1180 x 660mm
Dumping Height 1670mm
Engine
Model Yanmar TF85MRE-DI
Motor Model Water -cooled Horizontal 4 Stroke Diesel Motor
Starter System Manual and Electrict Start
Power 8.5HP / 2200
Fuel Capacity 10.5 Liter
Oil Capacity 2.2 Liter
Battery 12Volt 70AH
Track, Speed & Dimension
Crawler Size (Width x Pitch x Link ) 350mm x 72 x 54
Crawler type Rubber with solid steel forged links
Travel Speed 4-5km/h
Ground Clearance 550mm
Ground Clearance with Roller 200mm

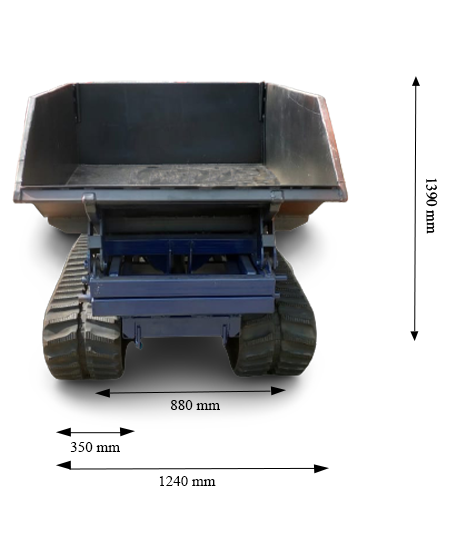

Overall Size ( L x W x H ) 2580 x 1240 x 1390
Overall Weight 1138Kgs
Jenis Keterangan
Nama Produk HOWARD ROTAVATOR B16
Fungsi Produk Pengolahan Tanah
Model 105, 125, 155 dan 180
Maksimal Kedalaman Kerja 16 CM
Lebar Kerja 105 sampai 108 CM
Jumlah Pisau 24, 30, 36 dan 42
Berat 270 sampai 340 Kg
Traktor HP 25 sampai 55 HP
