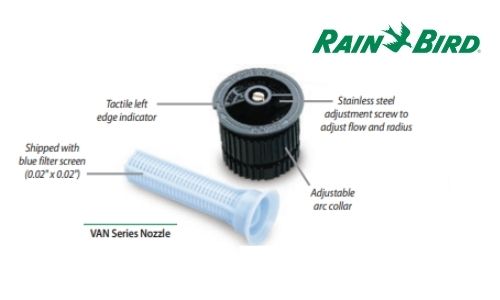

RAIN BIRD VAN SERIES NOZZLES
Variable Arc Nozzles
Rain Bird This low-cost, reliable, and flexible connection prevents heads or pipes from breaking when run over by equipment and allows easy adjustment of the heads to grade.
FEATURES
- A simple twist of the center collar with no special tools increases
or decreases the arc setting making it ideal for watering odd
shaped areas - Quickly identify radius with Top
Color-coded™ nozzles even when
system is not operating - 12, 15, and 18-VAN have matched
precipitation rates with
Rain Bird MPR Nozzles - Three year trade warranty
OPERATING RANGE
- Spacing: 0.9 m to 5.5 m 1
- Pressure: 1.0 to 2.1 bar
- Optimum pressure: 2.1 bar 2
MODELS

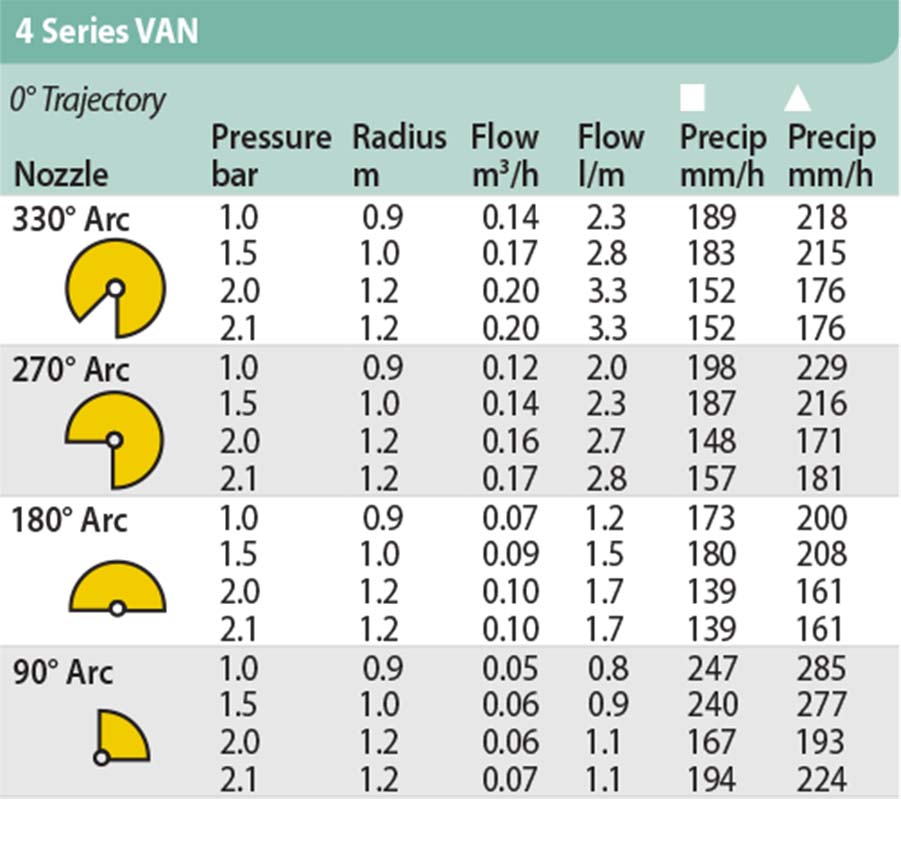

- 4-VAN Series: 0.9 to 1.2 m

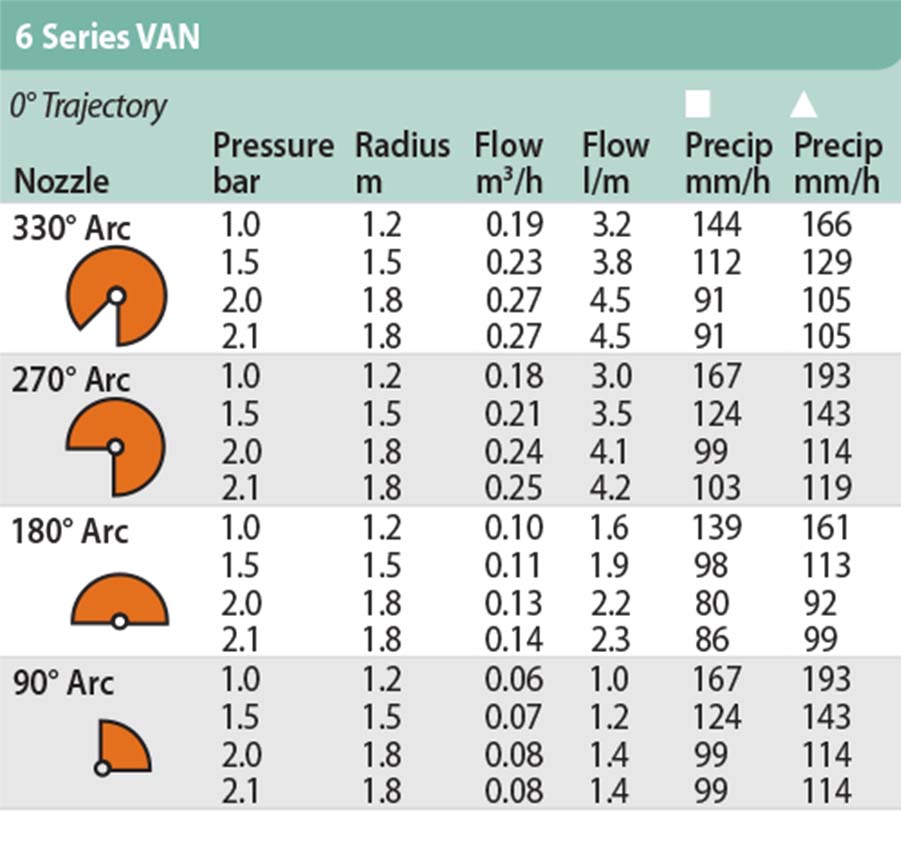

- 6-VAN Series: 1.2 to 1.8 m

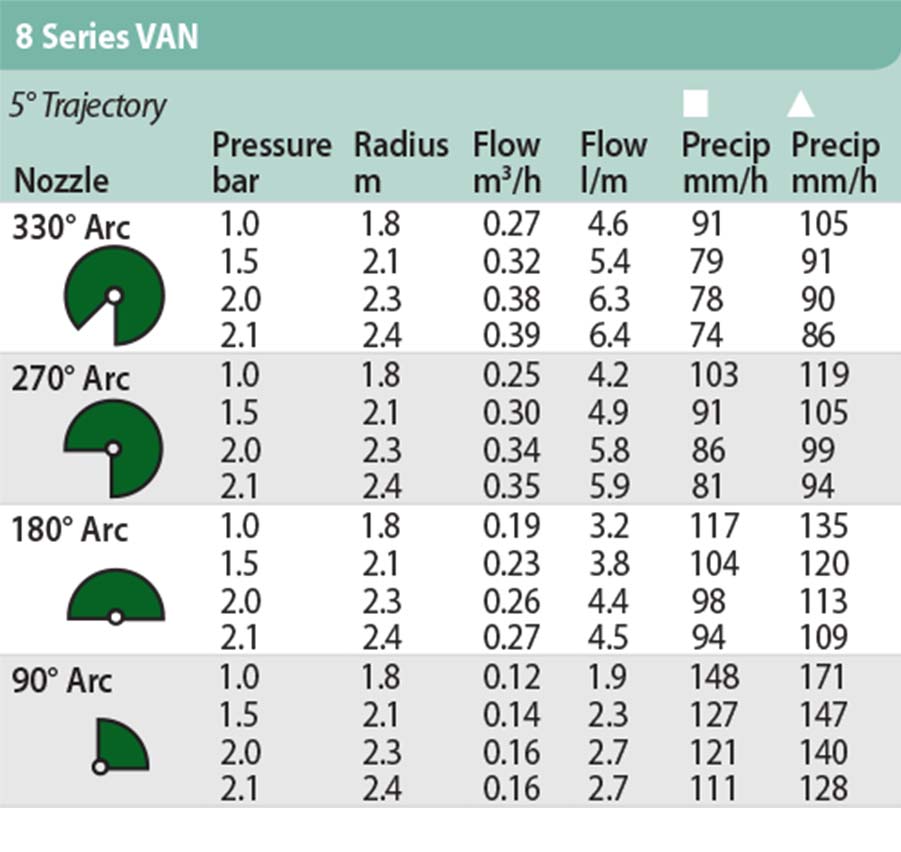

- 8-VAN Series: 1.8 to 2.4 m

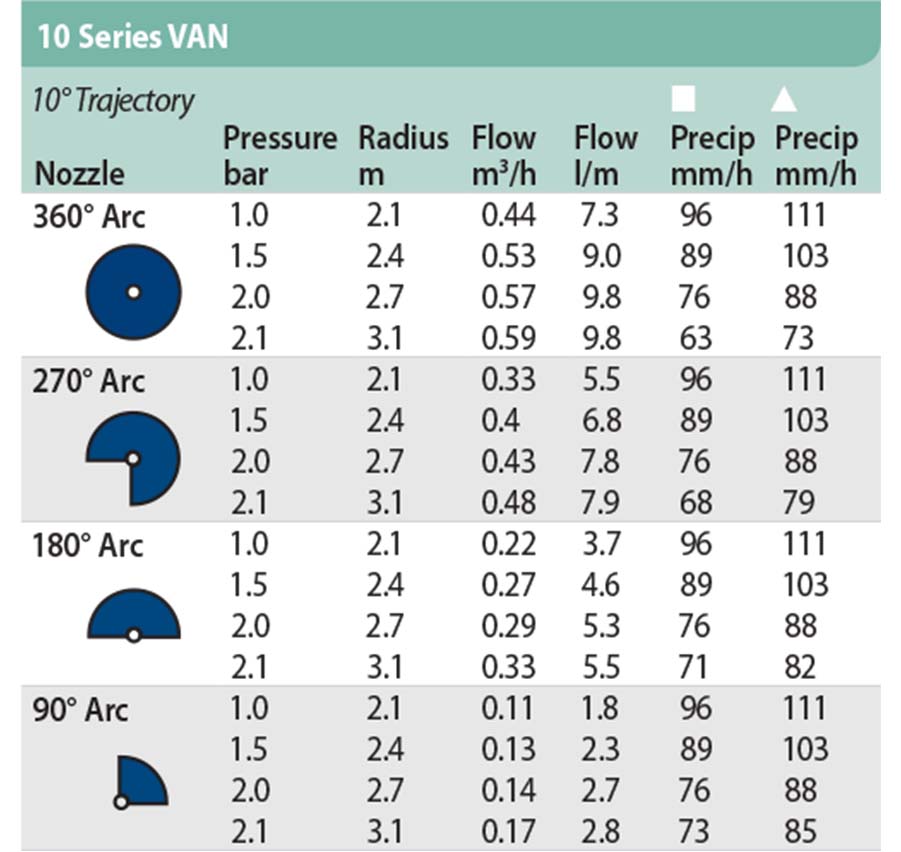

- 10-VAN Series: 2.1 to 3.1 m

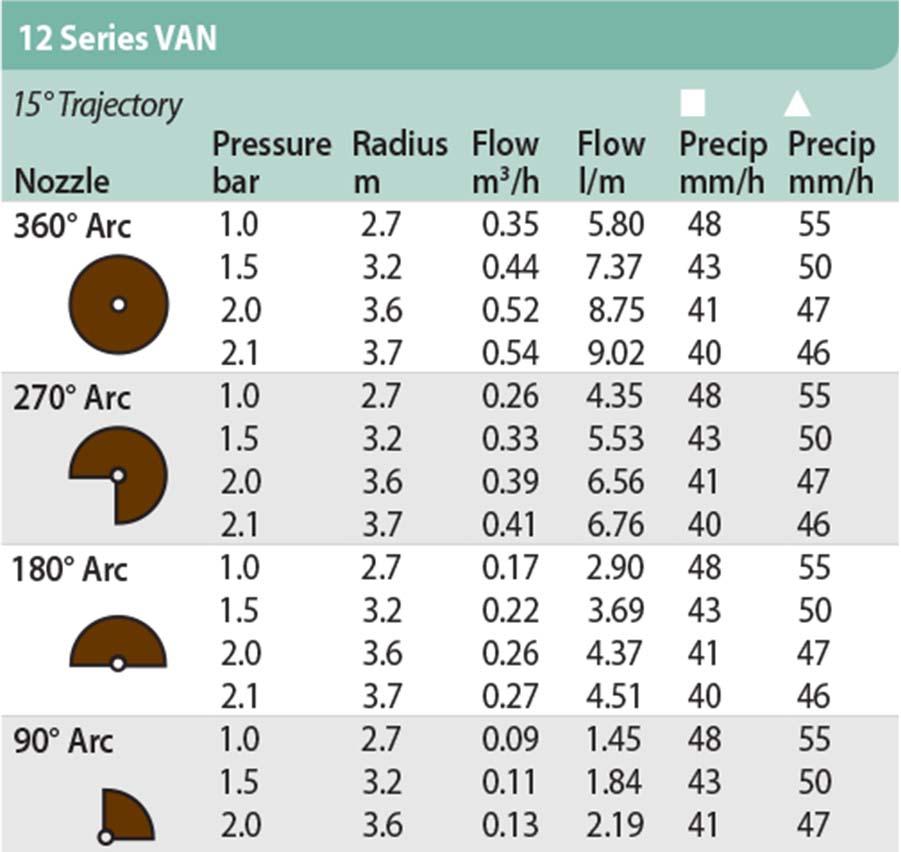

- 12-VAN Series: 2.7 to 3.7 m

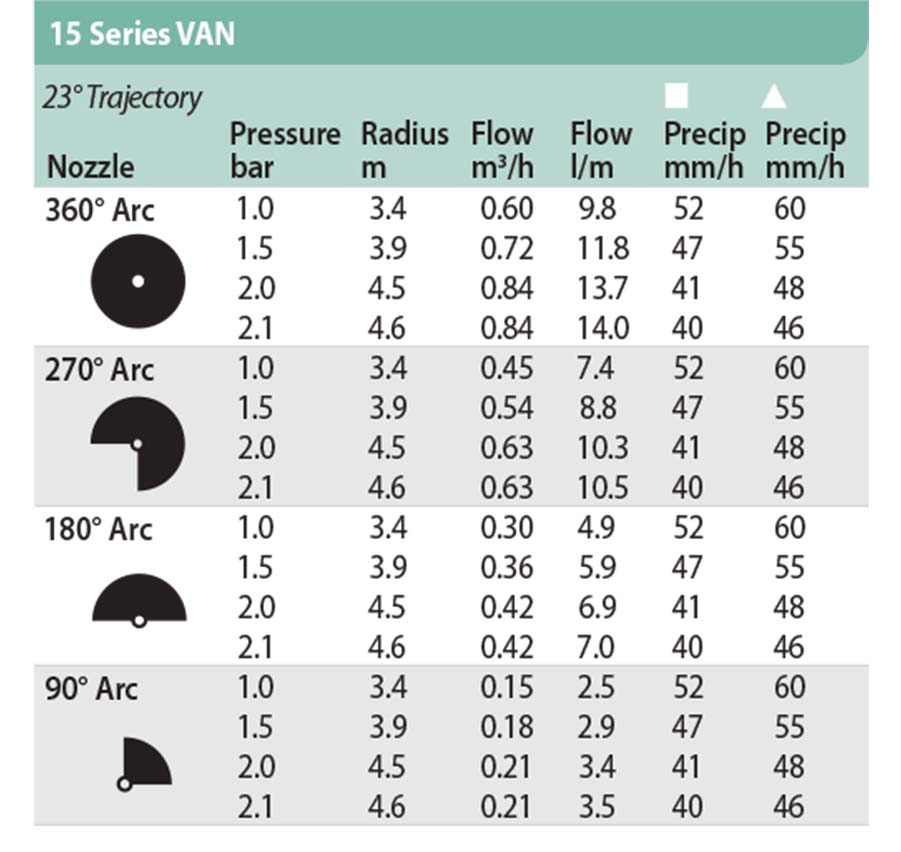

- 15-VAN Series: 3.4 to 4.6 m

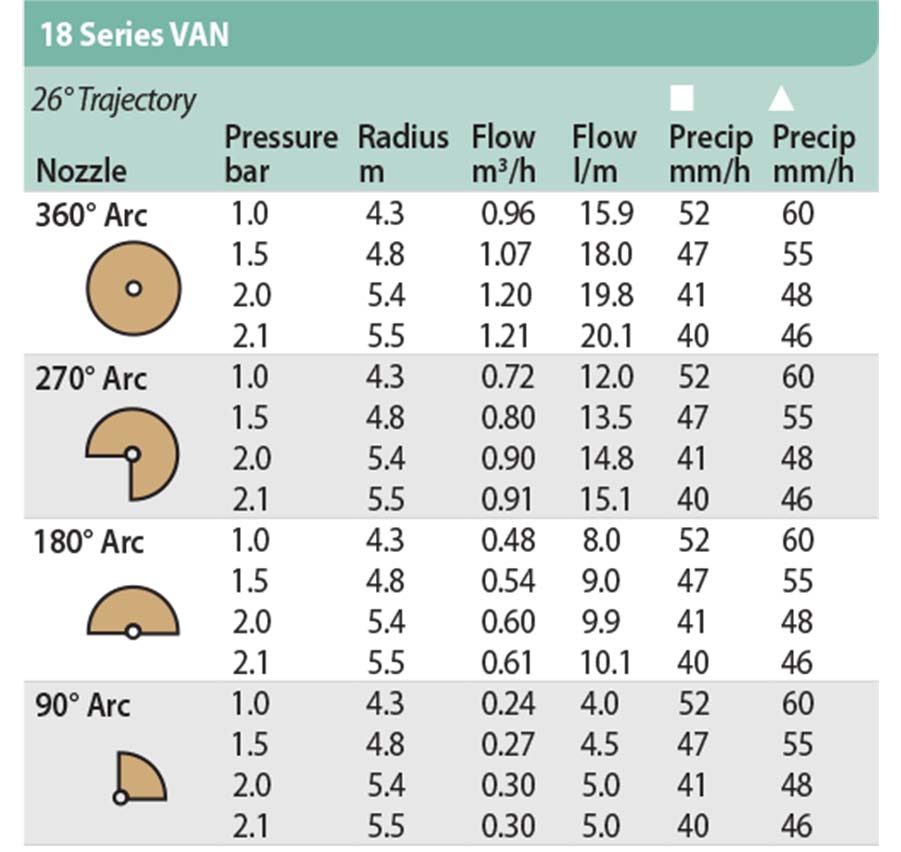

- 18-VAN Series: 4.3 to 5.5 m
