AR320

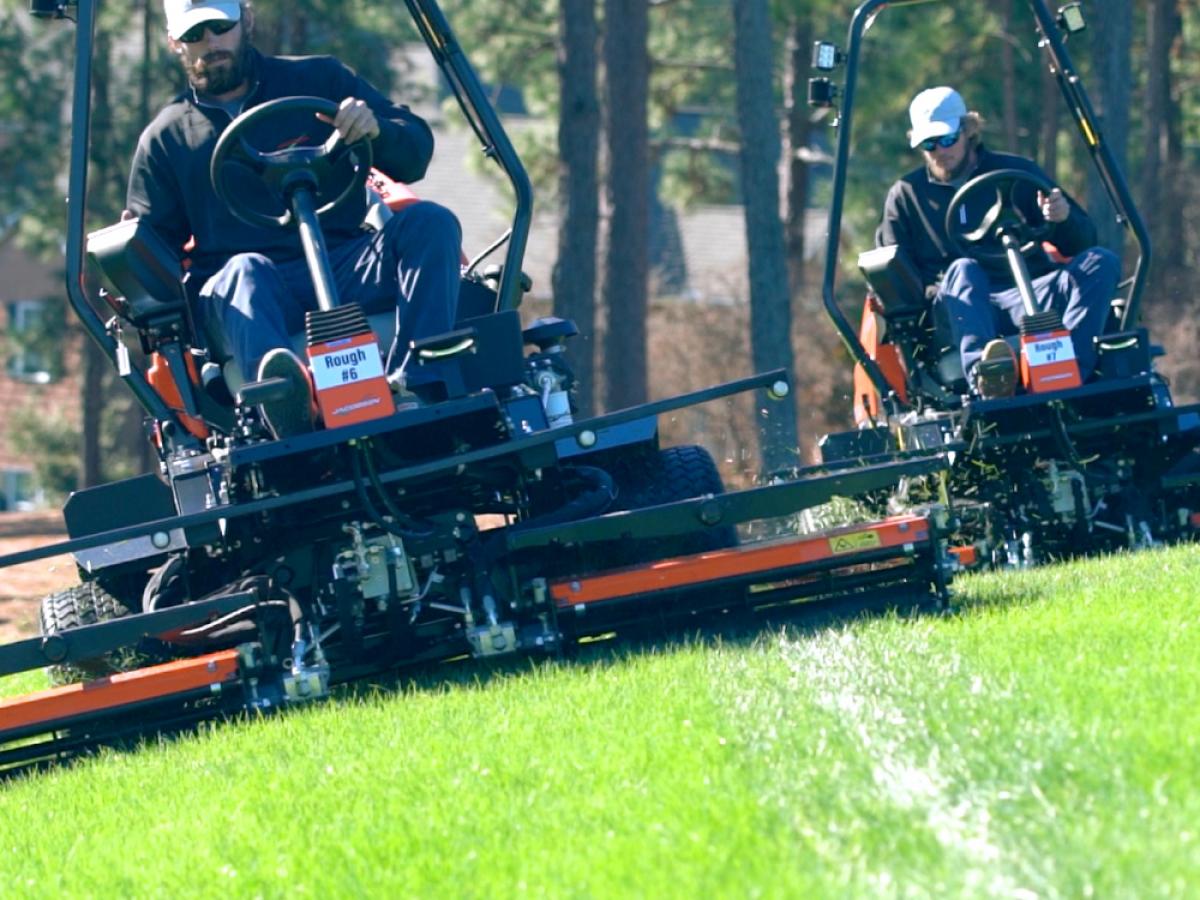

A perfect balance of comfort, cut quality, and power. The highly maneuverable, articulated TR320 reel mower is built to deliver its highest performance if the golf course turf is wet, dry, or on flat or sloped terrain, while always giving you Jake’s Signature Cut Trusted by Generations.
KEY FEATURES
KEY ATTRIBUTES
REELS AND BLADES
TRACTION, BRAKES AND SPEED
WEIGHT AND DIMENSIONS
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 72″ or 84″ (1.83 m or 2.13 m) |
| MOWER HEIGHT OF CUT | 0.37 – 2.75″ (9.5 – 69.8 mm) |
| BLADES PER REEL | 5, 7 or 11 |
| FUEL / BATTERY CAPACITY (+RUN TIME) | 7.6 gal. (28.7 L) |

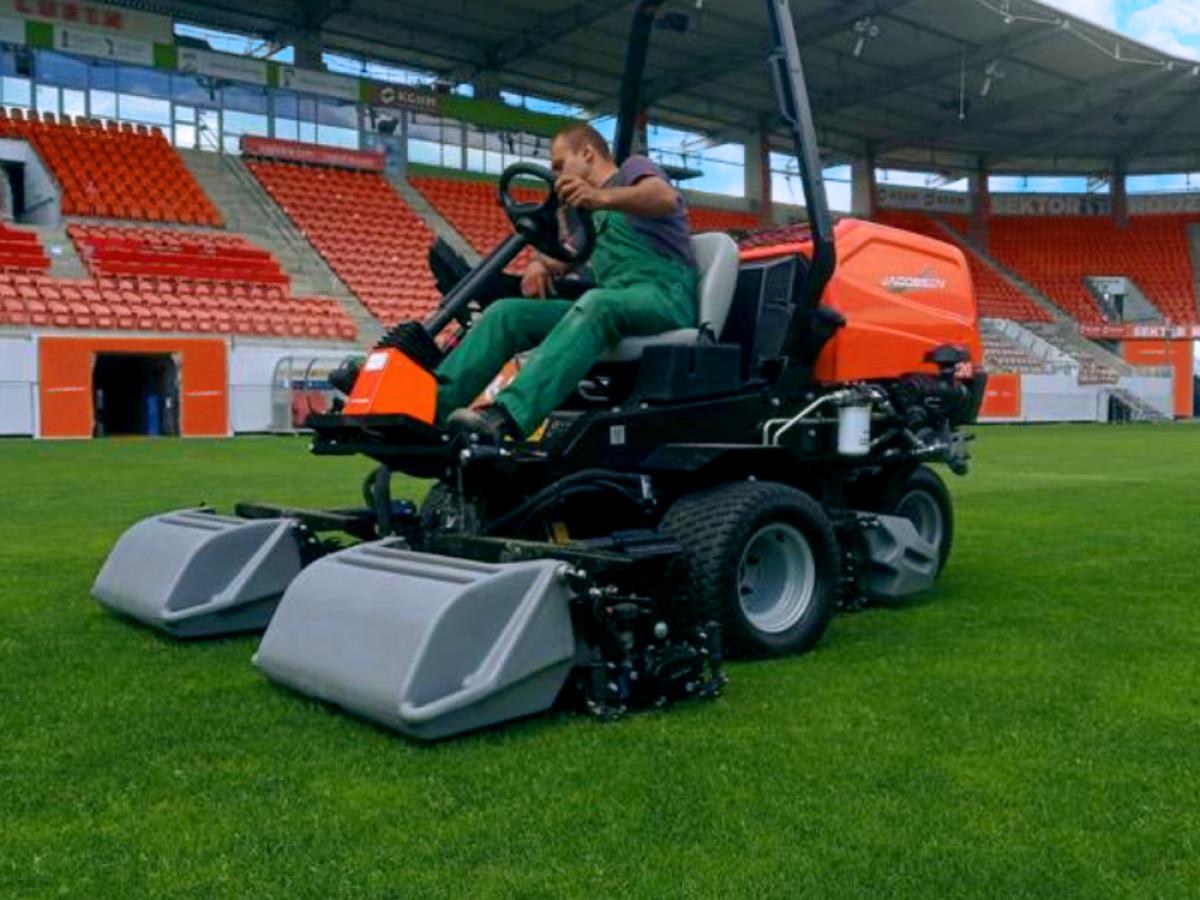

| MOWER ENGINE | Kubota 24.8 HP (18.6 kW) Diesel |
| CUTTING CAPACITY | 4.5 – 5.3 acres (1.83 – 2.13 hectare) / hr |
| MOWER WARRANTY | 2 Years |
REELS AND BLADES
| REELS AND BLADES | |
|---|---|
| NUMBER AND SIZE | 3 x 26″ (0.66 m) or 30″ (0.76 m) reels; 7″ (178 mm) diameter |
| BLADE MATERIAL | Hardened, high manganese carbon steel |
| CUTTING UNIT LIFT | Armrest mounted switch |
| CUTTING FREQUENCY | – |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| TRACTION DRIVE | Parallel-series “on-demand” 3WD |
| REEL DRIVE | Fixed displacement hydraulic |
| HYDRAULIC SYSTEM | 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil |
| SERVICE BRAKES | Dynamic braking through hydrostatic drive |

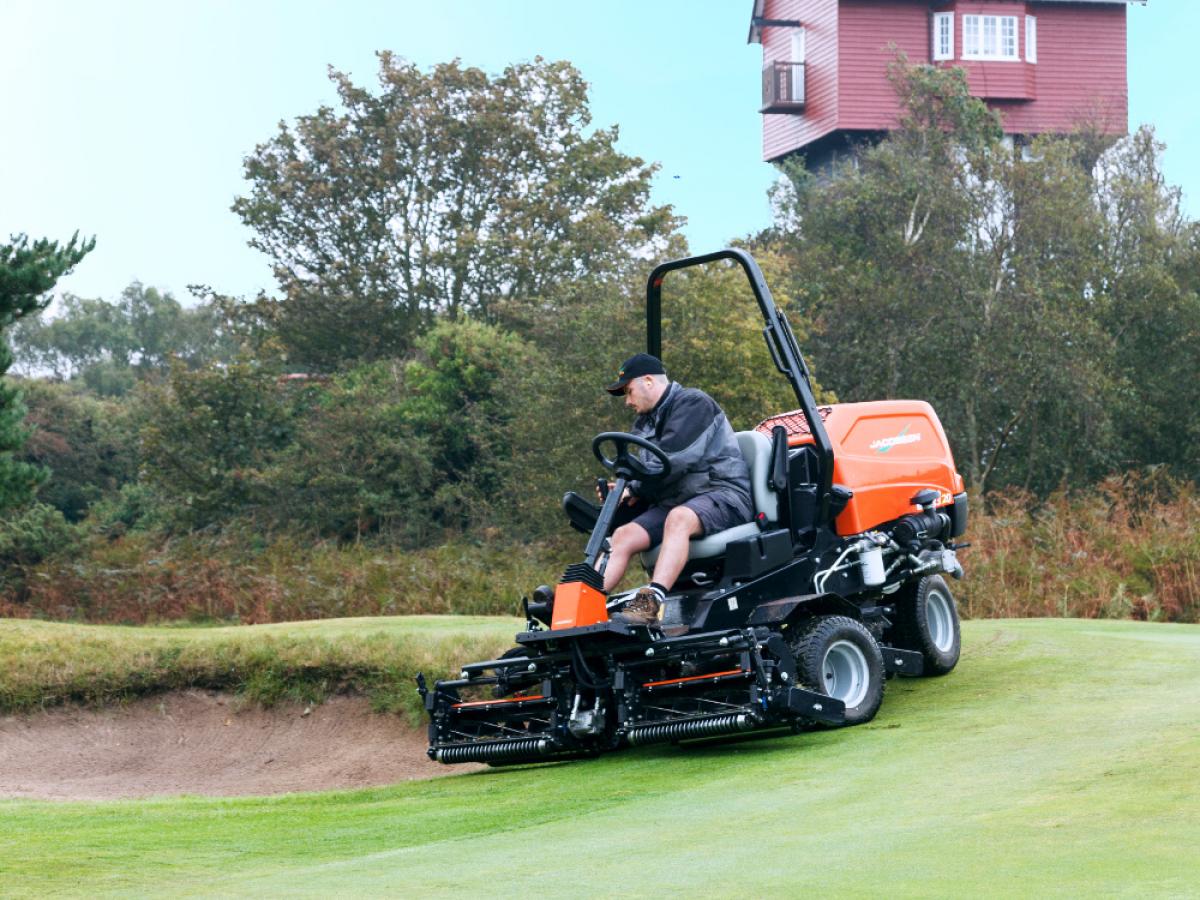

| PARKING BRAKES | Service-free electronic wet disc |
| STEERING | Hydraulic power steering with tilt wheel |
| MOWING SPEED | 6.2 mph (10 kph) |
| TRANSPORT SPEED | 8.7 mph (14 kph) |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | 1647 – 2281 lbs. (747 – 1035 kg) |
| LENGTH (LESS CATCHERS) | 97″ (2.46 m) |
| OVERALL HEIGHT INCLUDING ROPS OVERALL HEIGHT INCLUDING ROPS | 80″ (2.04 m) |
| WHEEL BASE | 43.5″ (1.36 m) |

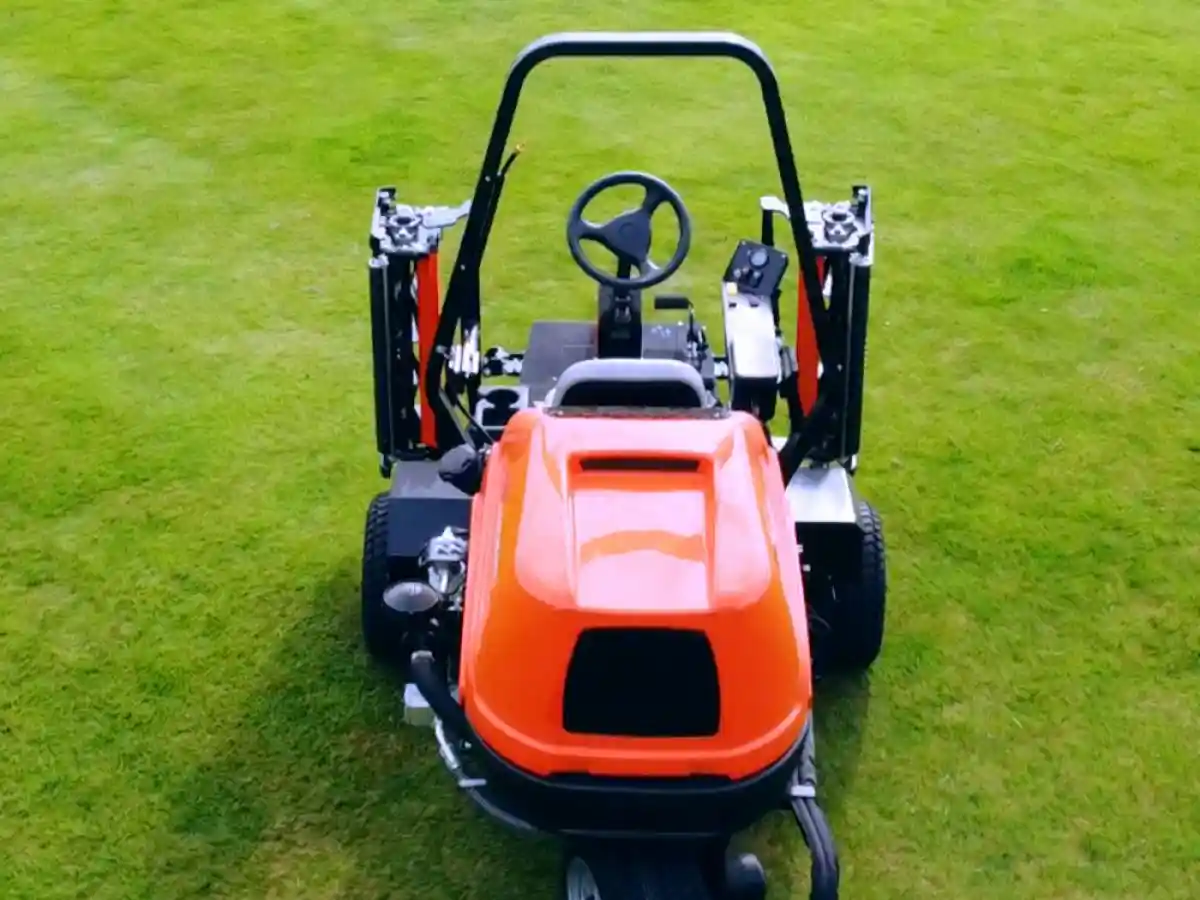

| TRANSPORT WIDTH | 65.5″ (1.66 m) |
| WORKING WIDTH | 83″ (2.11 m) |
| FLUID CAPACITIES | – |
