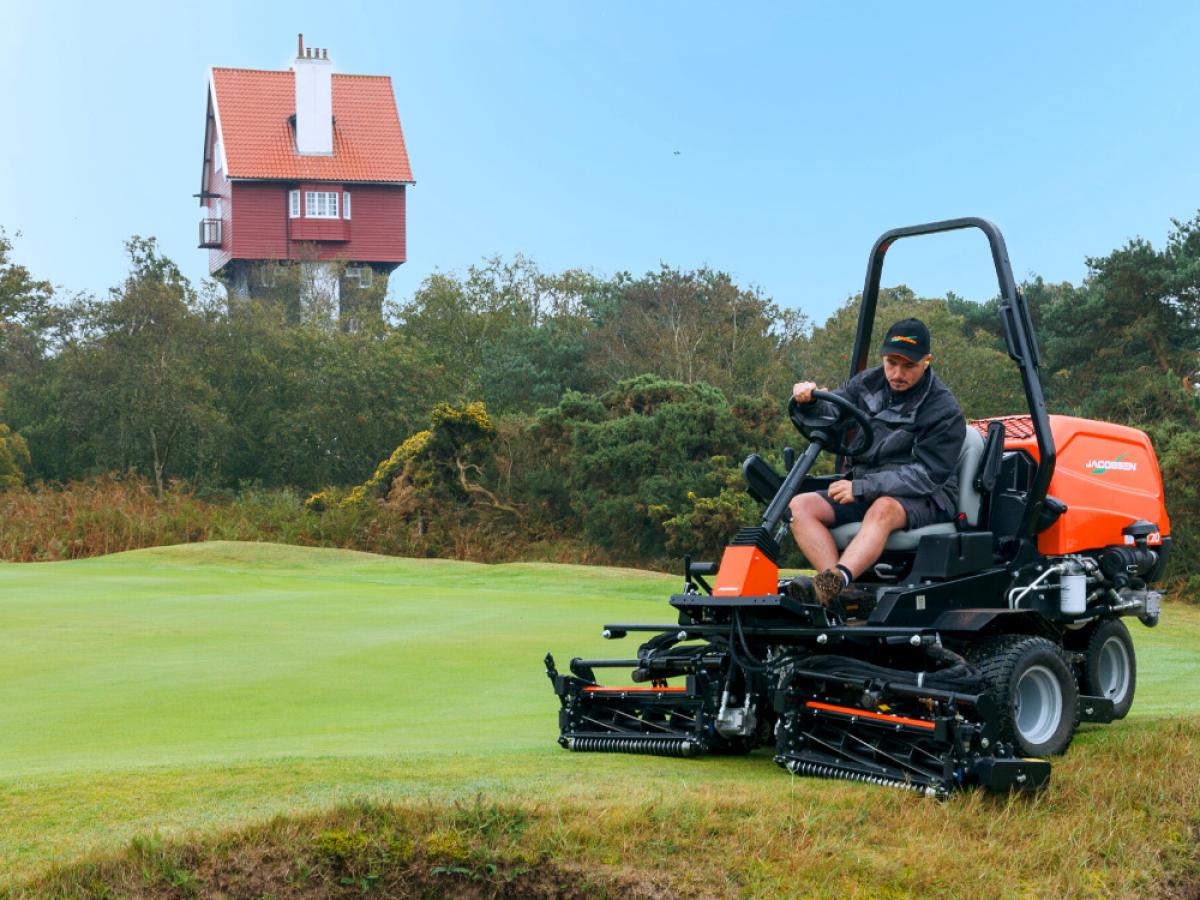

When you have to work in all weather conditions, you need to mow with the TR330. Comfort, cut quWhen you have to work in all weather conditions, you need to mow with the TR330. Comfort, cut quality, manoeuvrability, and power come together to make a side-shifting reel mower that is always consistent, dependable, and guaranteed to give you Jake’s Signature Cut Trusted by Generations.ality, manoeuvrability, and power come together to make a side-shifting reel mower that is always consistent, dependable, and guaranteed to give you Jake’s Signature Cut Trusted by Generations.
KEY ATTRIBUTES | |
---|---|
MOWER CUTTING WIDTH | |
MOWER HEIGHT OF CUT | |
BLADES PER REEL | |
FUEL/BATTERY CAPACITY (+RUN TIME) | 7.6 gal. (28.7 L) |

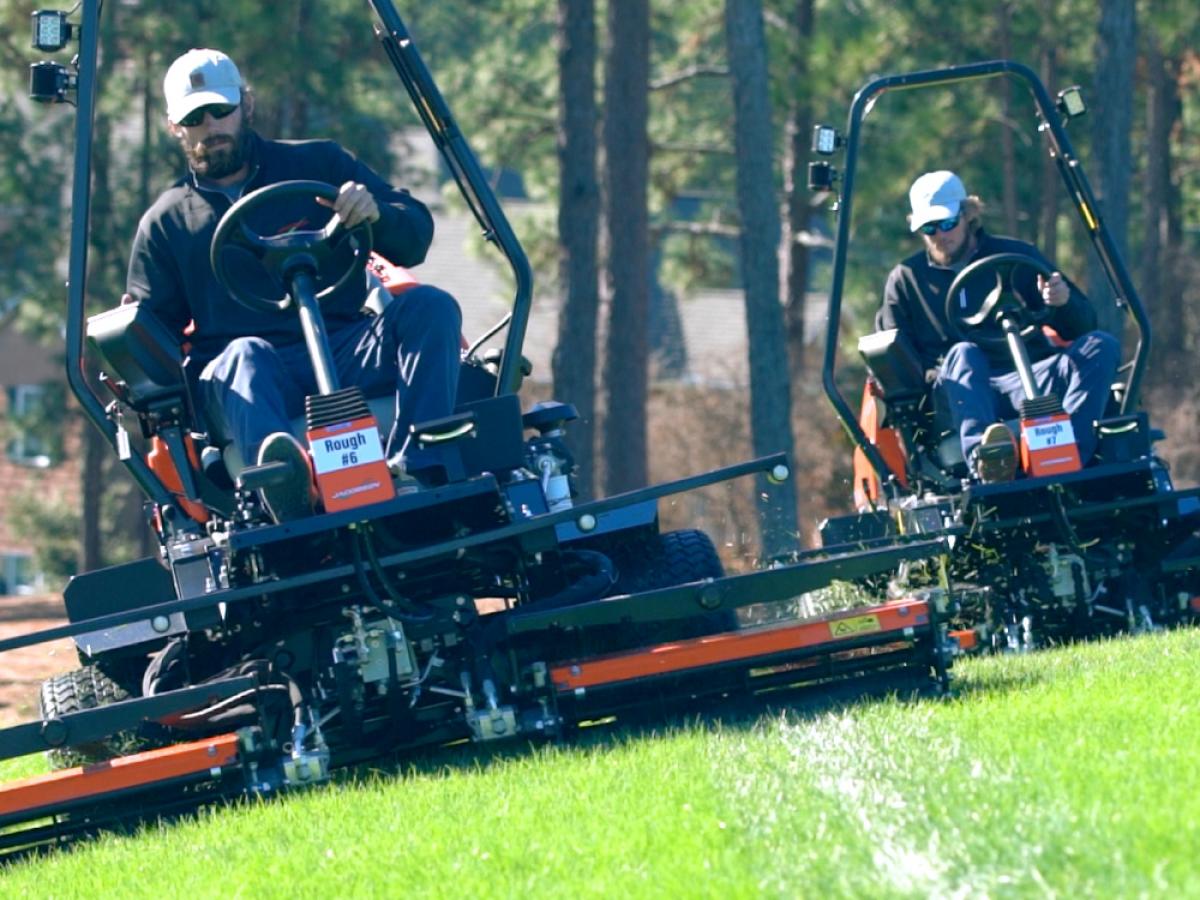

MOWER ENGINE | Kubota 24.8 HP (18.6 kW) Diesel |
CUTTING CAPACITY | 4.5 – 5.3 acres (1.83 – 2.13 hectare) / hr |
MOWER WARRANTY | 2 Years |
REELS AND BLADES | |
---|---|
NUMBER AND SIZE | 3 x 26″ (0.66 m) or 30″ (0.76 m) reels; 7″ (178 mm) diameter |
BLADE MATERIAL | Hardened, high manganese carbon steel |
CUTTING UNIT LIFT | Armrest mounted joystick |
TRACTION, BRAKES AND SPEED | |
---|---|
TRACTION DRIVE | Parallel-series “on-demand” 3WD |
REEL DRIVE | Fixed displacement hydraulic |
HYDRAULIC SYSTEM | 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil |
SERVICE BRAKES | Dynamic braking through hydrostatic drive |
PARKING BRAKES | Service-free electronic wet disc |
STEERING | SHydraulic power steering with tilt wheel |
MOWING SPEED | 6.2 mph (10 kph) |
TRANSPORT SPEED | 8.7 mph (14 kph) |
TIRES | – |
WEIGHT AND DIMENSIONS | |
---|---|
NUMBER AND SIZE | 3 x 26″ (0.66 m) or 30″ (0.76 m) reels; 7″ (178 mm) diameter |
BLADE MATERIAL | Hardened, high manganese carbon steel |
BCUTTING UNIT LIFT | Armrest mounted joystick |
CUTTING FREQUENCY | – |
