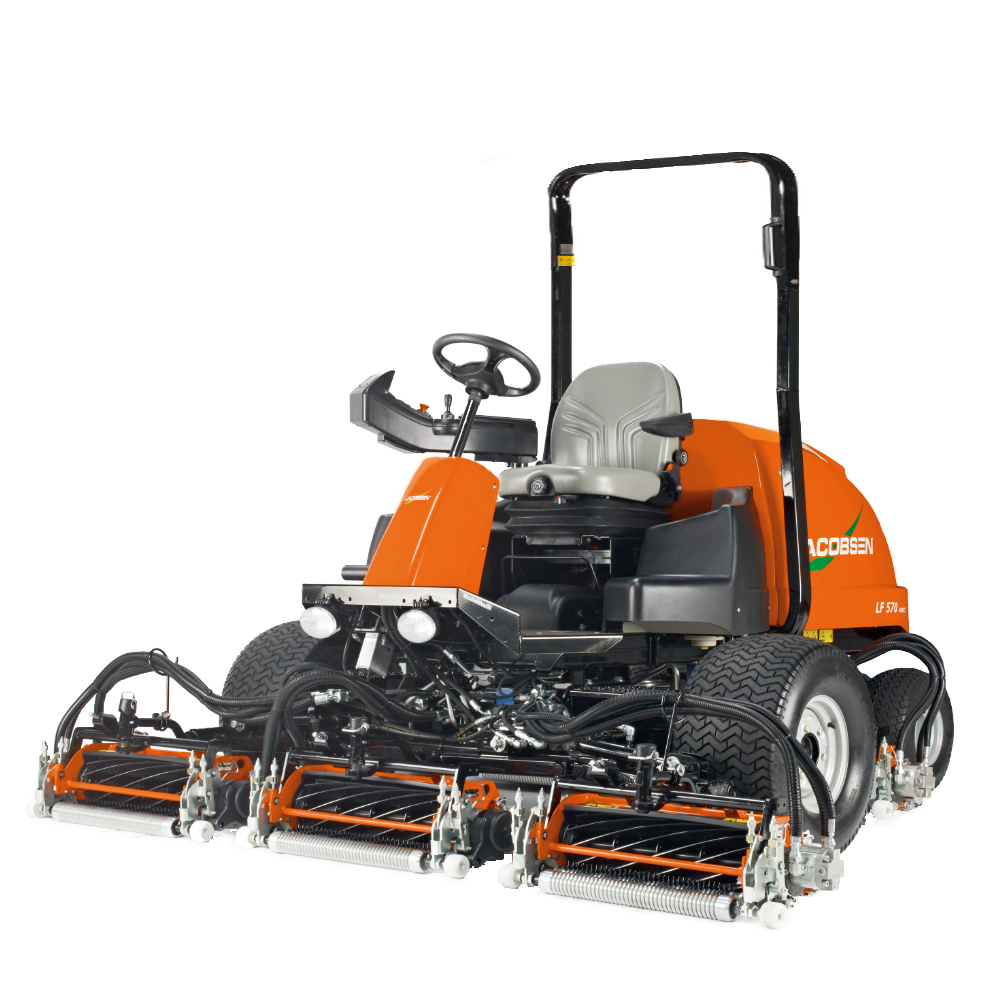

SLF550
The LF550 ensures a consistent cut on sports turf, including elite level soccer, football, baseball, field hockey, and rugby. Programmable mowing and transport speeds guarantee you get a consistent cut, and active maintenance diagnostics prevent unnecessary disruptions to keep you working.
KEY FEATURES
KEY ATTRIBUTES
REELS AND BLADES
TRACTION, BRAKES AND SPEED
WEIGHT AND DIMENSIONS
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 100″ (2.54 m) |
| MOWER HEIGHT OF CUT | 0.375 – 0.75″ (9.5 – 19 mm), Available high-cut kit raises cutting height to 1.187″ (30.2 mm) |
| CUTTING REELS | 5 x 5″ (12.7 cm) diameter x 22″ (55.9 cm) |
| MOWER ENGINE | Kubota® 37.5 HP (28 kW) diesel, Kubota® 50.2 HP (37.4 kW) diesel |
| CUTTING CAPACITY | Up to 8 acres (3.24 hectares) per hr at 8 mph (12.9 kph) (no overlaps or stops) |

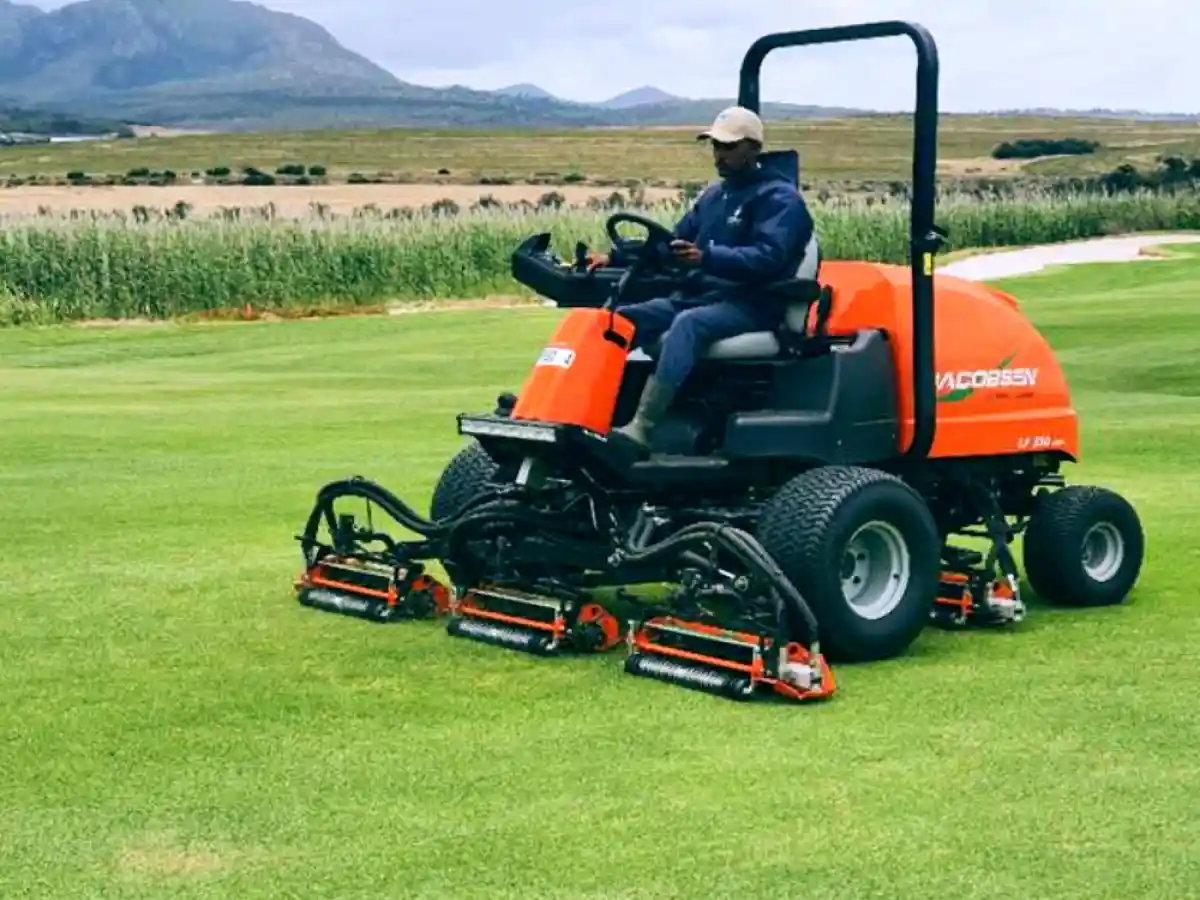

| FUEL/BATTERY CAPACITY (+RUN TIME) | 37.5 HP – 1.08 GPH (4.08 LPH)* , 50 HP – 1.4 GPH (5.3 LPH)* (*assuming 50% load) |

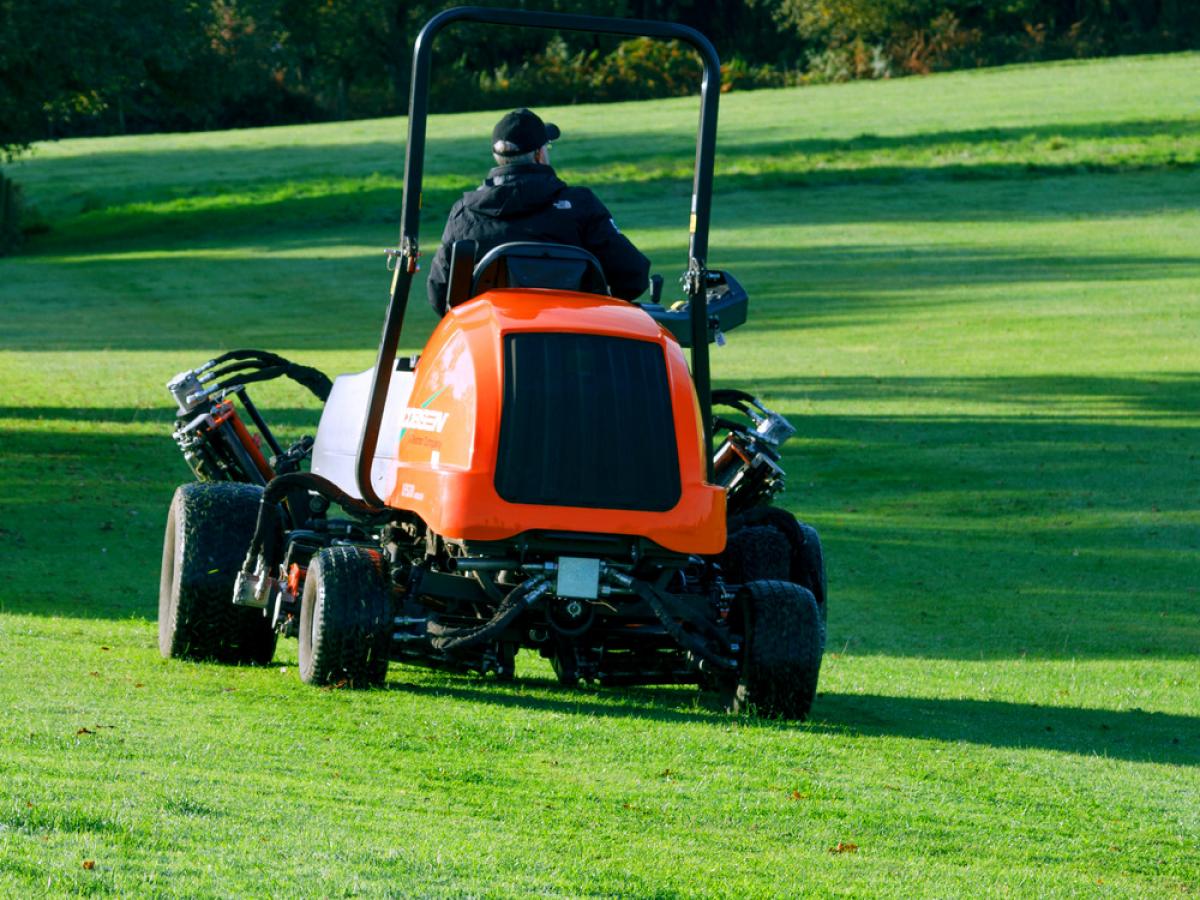

| TRANSPORT SPEED | Selectable up to 12 mph (19.3 kph) |
| MOWER WARRANTY | 2 Years |

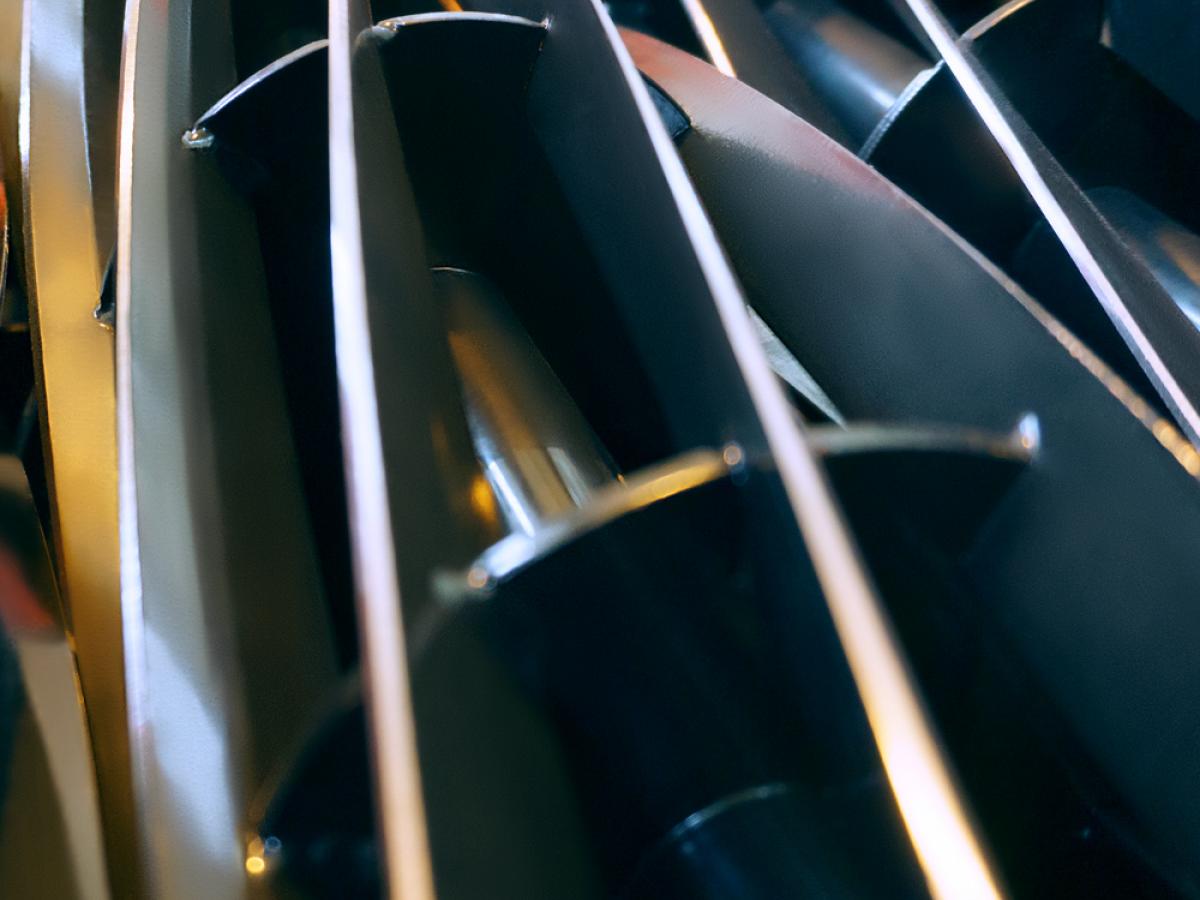

REELS AND BLADES
| REELS AND BLADES | |
|---|---|
| NUMBER AND SIZE | 7 or 9 heavy section fairway blades. |
| BLADE MATERIAL | Hardened, high manganese carbon steel |
| CUTTING UNIT LIFT | Hand operated, joystick controlled hydraulic lift system, one-touch lift/lower control for all reels. |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| TRACTION DRIVE | Variable displacement, electronically controlled hydrostatic drive; 4WD models: SureTrac™ parallel-cross-series traction system, four high-torque wheel motors, 2WD in reverse. |
| REEL DRIVE | Fixed displacement hydraulic motors with FlashAttach quick disconnect coupled reel motors. Standard on-board backlapping. |
| HYDRAULIC SYSTEM | 14 gal. (53 L) capacity; hydraulic tank oil level monitor and horn alarm; GreensCare biodegradable fluid; full-flow, 10-micron filter. Side-by-side radiator/hydraulic oil cooler. |
| SERVICE BRAKES | Dynamic braking through traction system |
| PARKING BRAKES | Automatic, wet parking brakes integrated in front wheel motors. |
| STEERING | Rear wheel, hydrostatic power steering with tilt adjustable steering wheel. |
| MOWING SPEED | Selectable Up to 11 mph (19 kph) |
| REVERSE SPEED | Selectable up to 5 mph (8 kph) |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | 2WD: 3036 lbs. (1377 kg), 4WD: 3367 lbs. (1527 kg), 2WD High HP: 3282 lbs. (1489 kg), 4WD High HP: 3613 lbs. (1639 kg) |
| LENGTH (LESS CATCHERS) | 108″ (2.74 m) |
| OVERALL HEIGHT (INCLUDING ROPS) | 88″ (2.23 m) |
| WHEEL BASE | 58″ (1.5 m) |
| TRANSPORT WIDTH | 87″ (2.2 m) |
| WORKING WIDTH | 115″ (2.92 m) |
