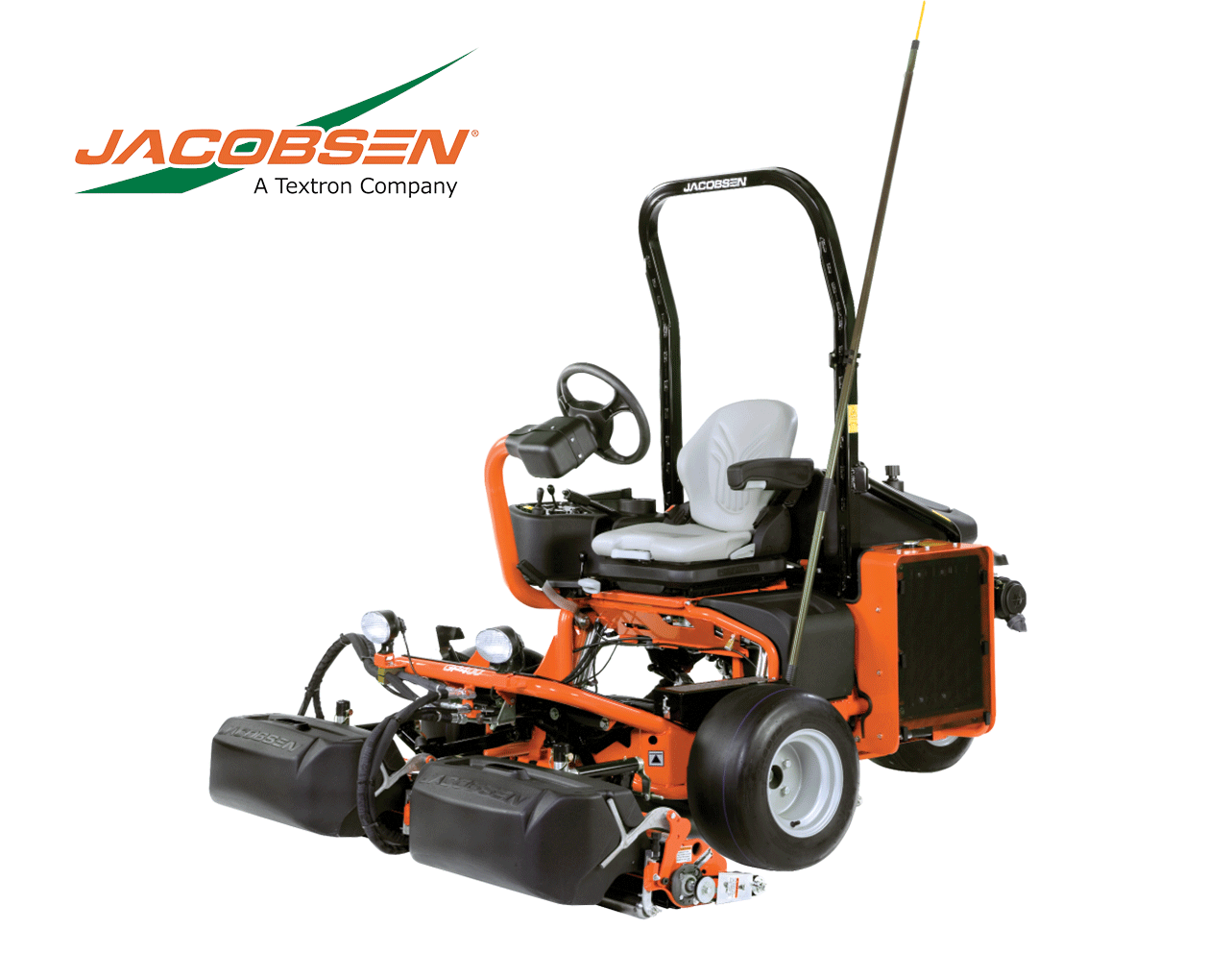

GP400 DIESEL
GP 400 Diesel

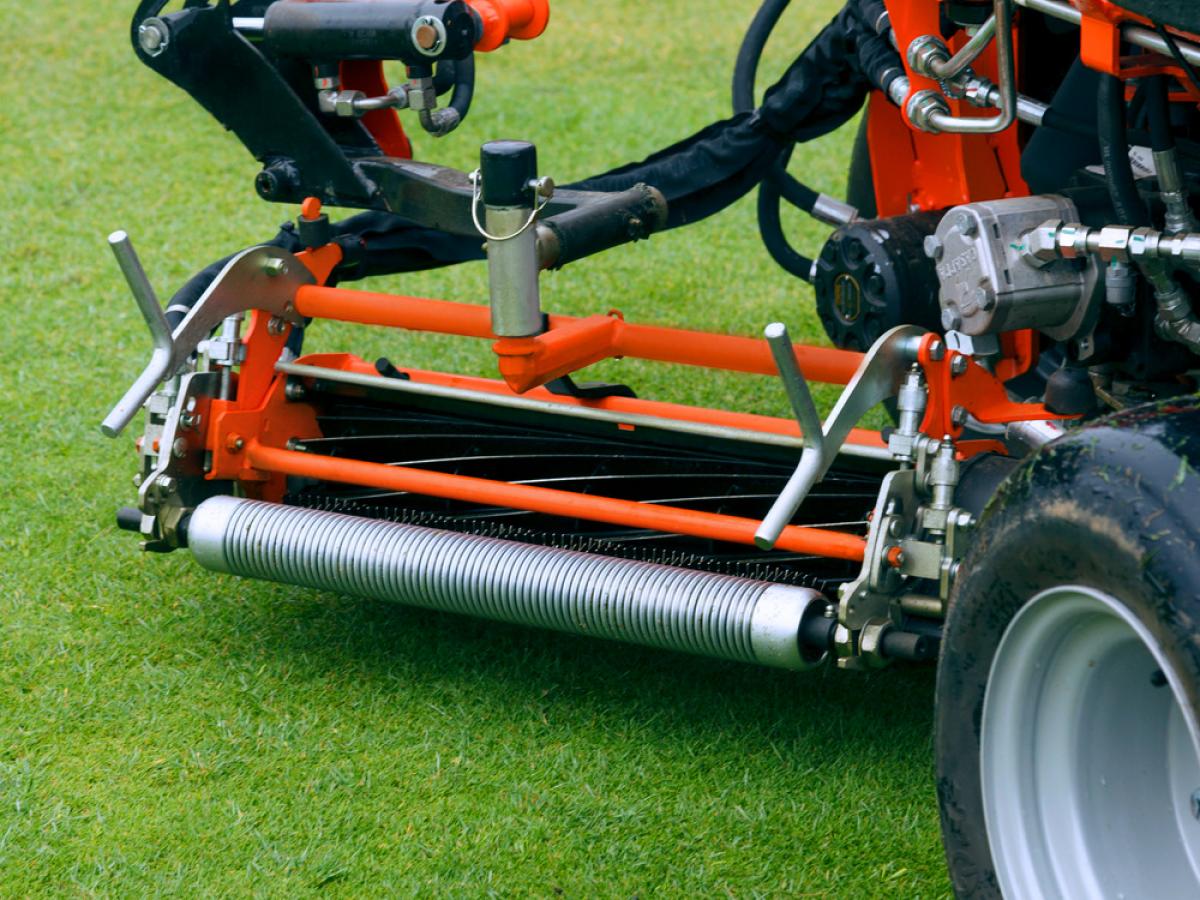

With the GP400 everything is designed to assist you. A swing out center reel and easy maintenance get the mower on the golf course (greens, tees, approaches) quickly, and easy operation and ergonomically designed controls keep you there until the work is done.
KEY FEATURES
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 62″ (1.6 m) |
| MOWER HEIGHT OF CUT | 0.062 – 0.438″ (1.6 – 11.1 mm) |
| BLADES PER REEL | 7, 9 or 11 |
| FUEL/BATTERY CAPACITY (+RUN TIME) | 8 gal. (31 L) |
| MOWER ENGINE | Gas 18 HP (13.4 kW); Diesel 17.7 HP (13.2 kW) |
| CUTTING CAPACITY | – |
| MOWER WARRANTY | 2 Years |

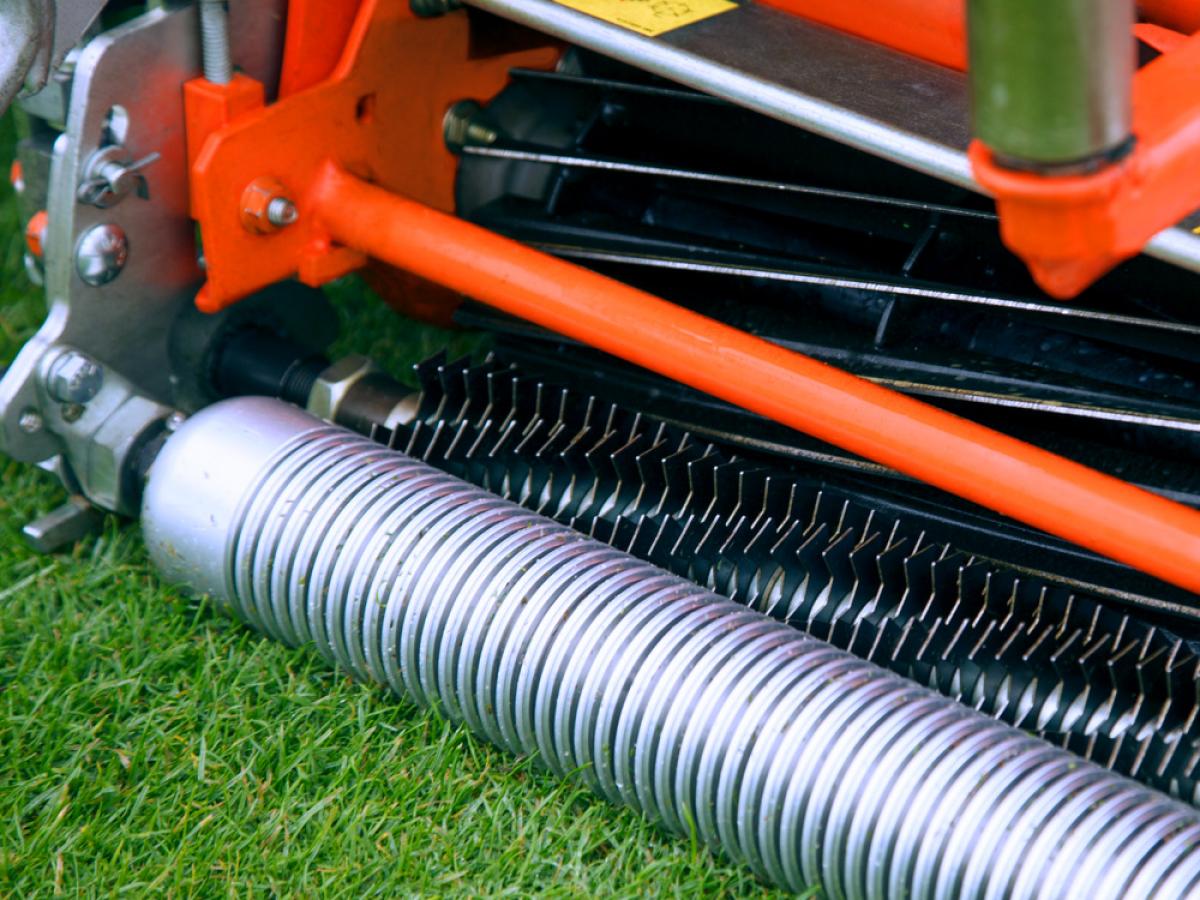

REELS AND BLADES
| REELS AND BLADES | |
|---|---|
| NUMBER AND SIZE | 3 x 22″ (56 cm) reels; 5″ (12.7 cm) diameter |
| BLADE MATERIAL | Hardened, high manganese carbon steel |
| CUTTING UNIT LIFT | Hydraulic lift |
| CUTTING FREQUENCY | 5 Blade: 0.035 in/mph (0.889 mm/kph), 11 Blade: 0.053 in/mph (0.836 mm/kph) |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| TRACTION DRIVE | Hydraulic motor on each drive wheel |
| REEL DRIVE | Gear-type hydraulic motor; backlap control valve standard |
| HYDRAULIC SYSTEM | Hydraulic double action cylinders; 5 gal. (18.9 L) capacity; 20-micron, full flow filtration; biodegradable fluid |
| SERVICE BRAKES | Dynamic braking through the hydraulic system |
| PARKING BRAKES | Internal expanding, hand operated |
| STEERING | Power Steering |
| MOWING SPEED | 3.7 mph (6 kph) |
| TRANSPORT SPEED | 6.6 mph (10.6 kph) |
| TIRES | 18 x 9.5-8, 2-ply, pneumatic, tubeless |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | Gas: 1073 lbs. (486.7 kg), Diesel: 1174 lbs. (532.5 kg) |
| LENGTH (LESS CATCHERS) | 87.5″ (2.22 m) |
| OVERALL HEIGHT INCLUDING ROPS | 78″ (1.98 m) |
| WHEEL BASE | 51.5″ (1.34 m) |
| TRANSPORT WIDTH | 50.5″ (1.27 m) |
| WORKING WIDTH | 70″ (1.78 m) |
| FLUID CAPACITIES | Coolant Capacity: 0.75 gl. (2.85 L) Pressurized, sealed cooling system |
