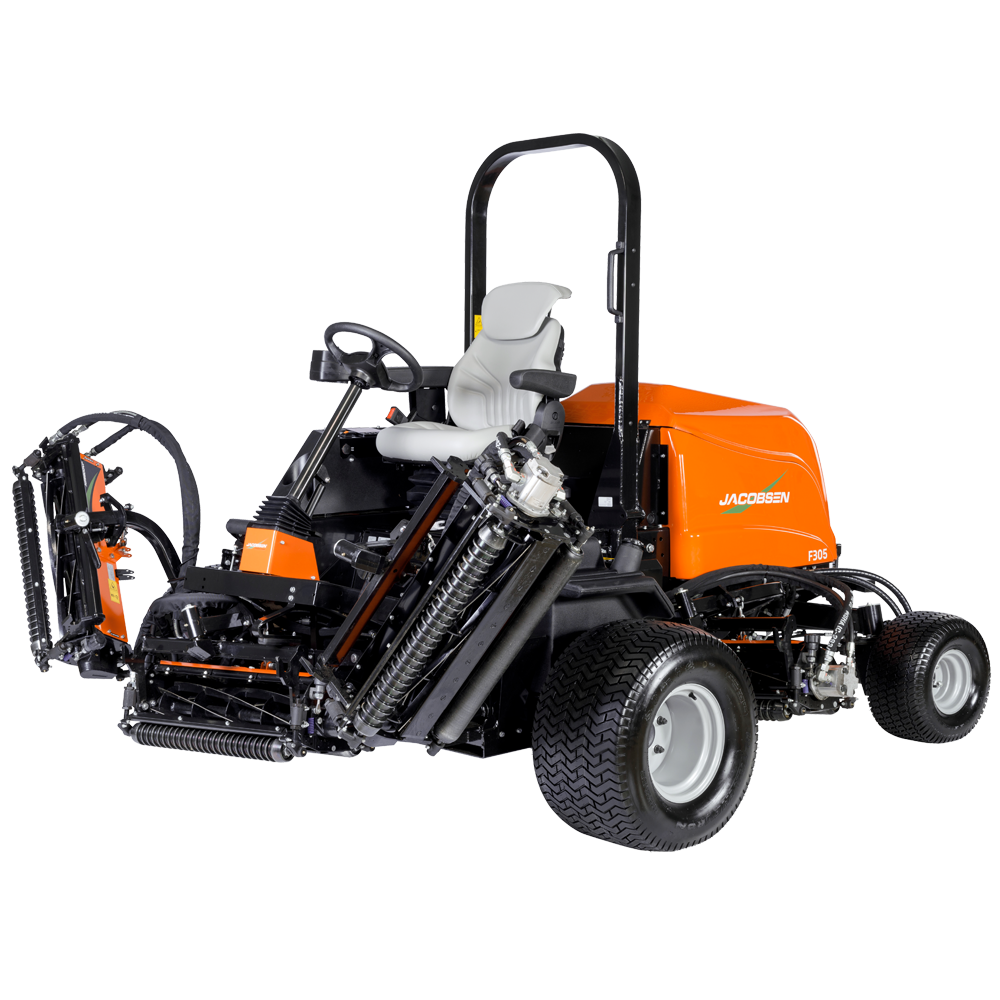

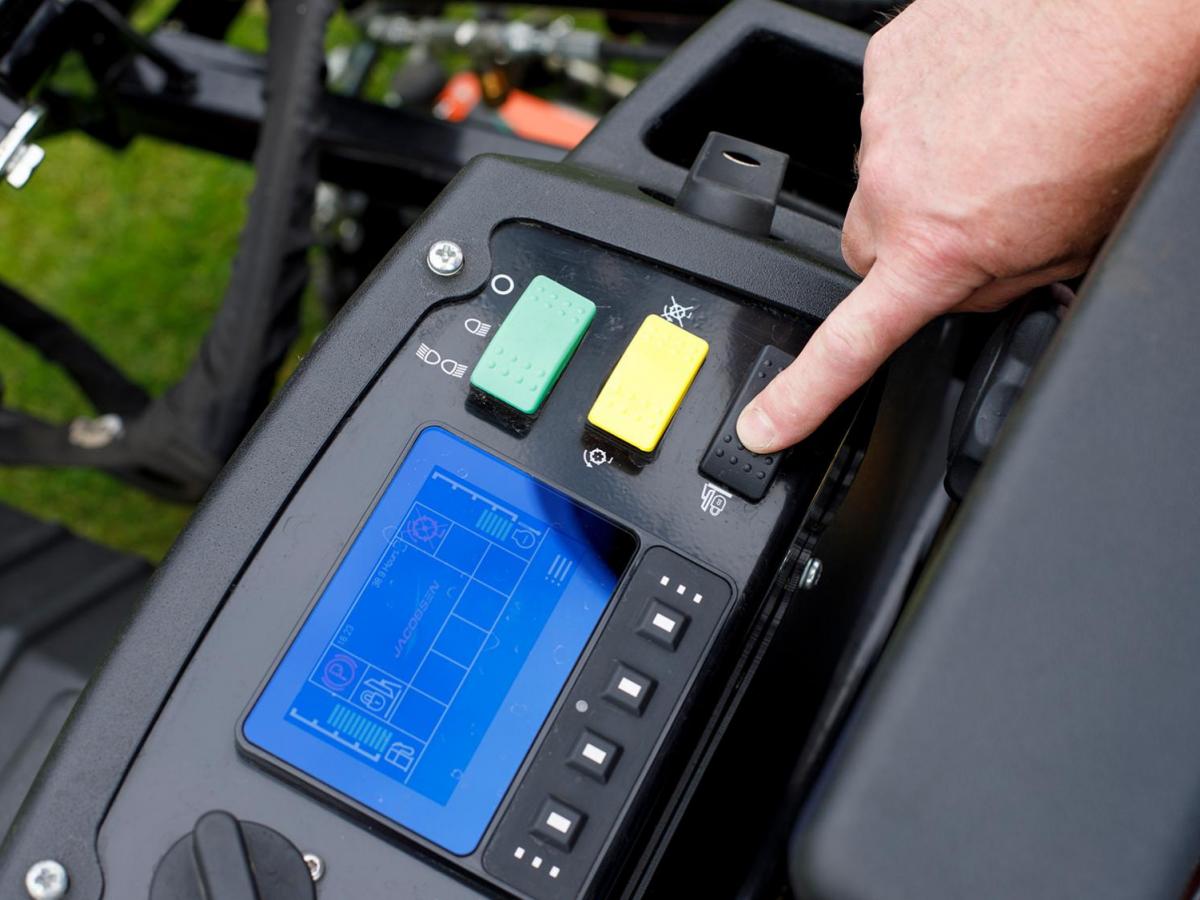

The F305 is a medium weight, four-wheel drive, 5 cutting unit fairway mower. It gives you reliable and unsurpassed productivity and revolutionized operator controls and a powerful yet clean Stage V 44HP Engine. The 26” (66cm) cutting units require no tools to adjust the reels and can easily be set to discharge grass to the front or rear.
MOWER CUTTING WIDTH | 116″ (2.94 m) |
---|---|
MOWER HEIGHT OF CUT | 0.47 – 1.85″ (12 – 47 mm) mm) using low profile, heavy bedknife |

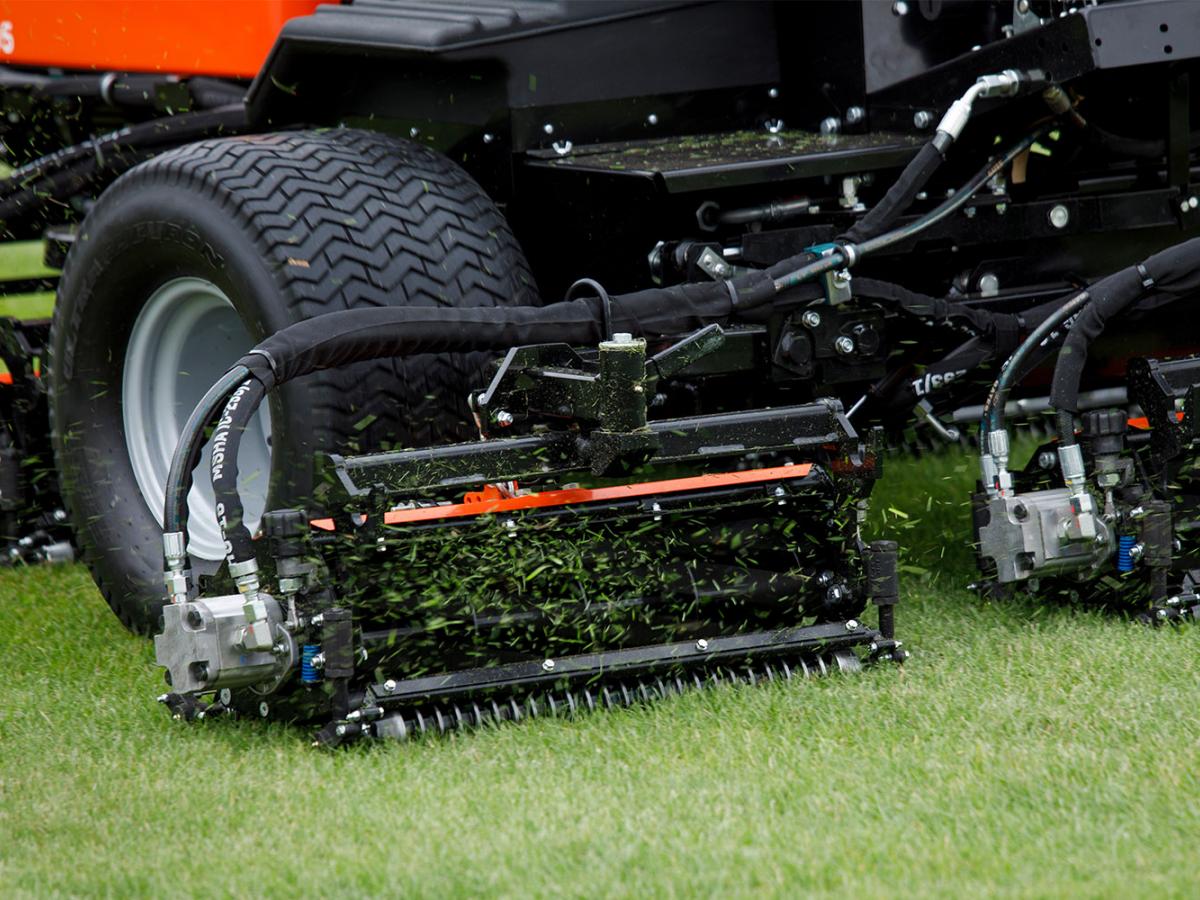

CUTTING REELS | 26″ (66.4 cm) cylinder, 6.5″ (16.5 cm) diameter floating head cutting unit (5 required) |

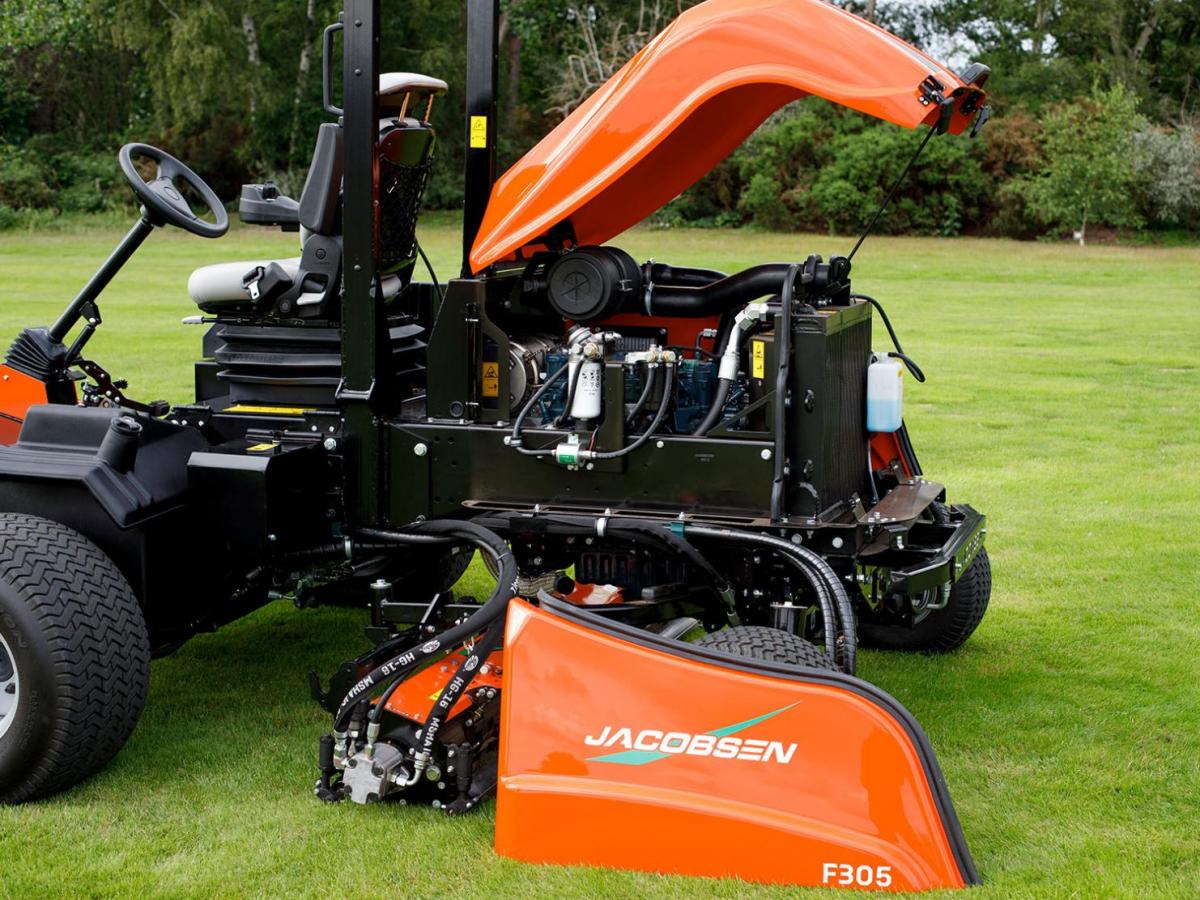

MOWER ENGINE | 44.9 HP (33 kW) Diesel |
CUTTING CAPACITY | 10.67 acres (4.32 hectares) per hr at 7.5mph (12 kph) |
FUEL/BATTERY CAPACITY (+RUN TIME) | 9.98 gal. (45.4 L) |
TRANSPORT SPEED | Selectable up to 8.7 mph (14 kph) |
NUMBER AND SIZE | 7 or 11 blade cutting head units, 46 cuts per metre at 7.5 mph (12 kph) |
---|---|
BLADE MATERIAL | Hardened, high manganese carbon steel |
CUTTING UNIT LIFT | Wing units can be raised individually for transport |
TRACTION DRIVE | SureTrac™ Traction System with full-time four-wheel drive in forward and reverse, parallel cross series system |
---|---|
REEL DRIVE | Fixed displacement hydraulic motors directly coupled to cutting unit |
HYDRAULIC SYSTEM | 8.31 gal. (37.8 L) capacity; Grade of oil to A.P.I. Classification CE/SF grades SAE 10W-30 |
SERVICE BRAKES | Hydrostatic braking |
PARKING BRAKES | Zero-maintenance wet parking brakes |
STEERING | Hydrostatic power steering with adjustable tilt steering wheel |
MOWING SPEED | Selectable up to 7.5 mph (12 kph) |
REVERSE SPEED | Selectable up to 4 mph (6.4 kph) |
WEIGHT | (excluding fuel) 3450 lbs. (1565 kg) |
---|
