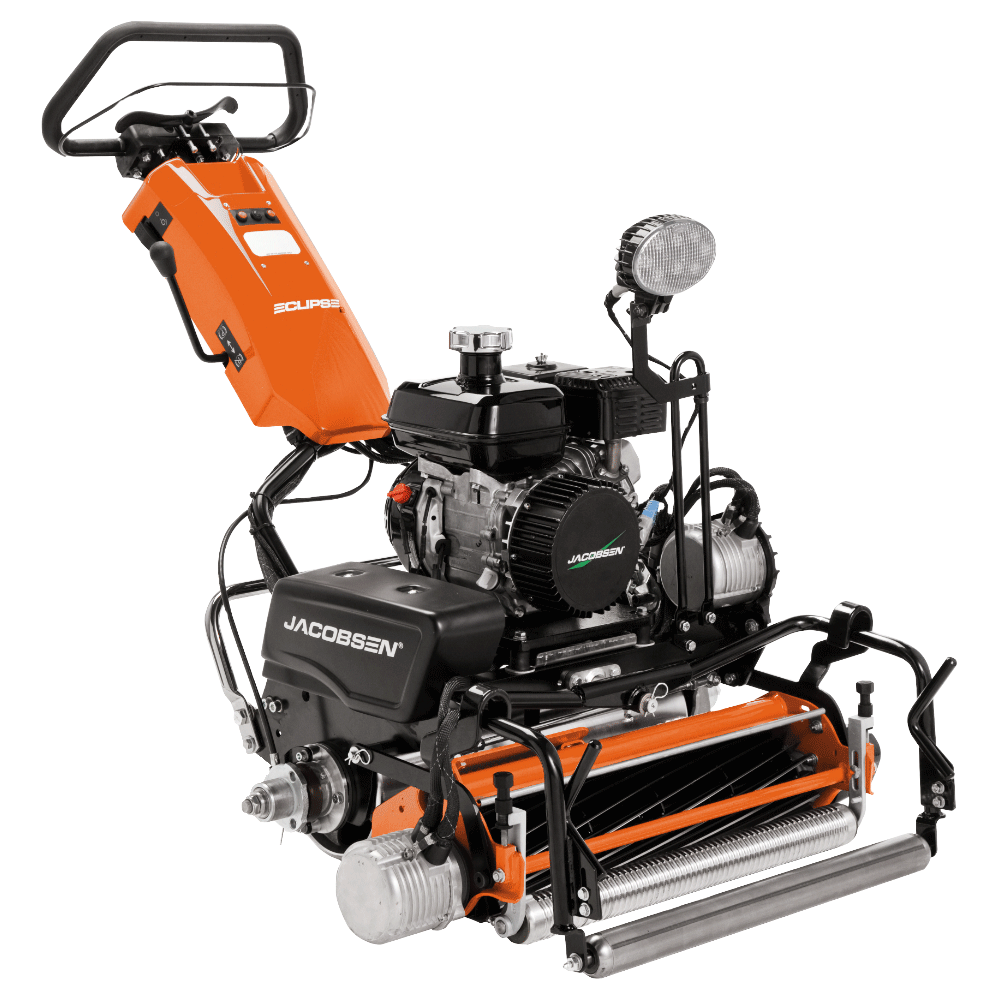

JACOBSEN ECLIPSE 2
JACOBSEN ECLIPSE 2
A century’s experience comes together to give you the Eclipse 2 Hybrid greens mower. Jake’s Signature Cut Trusted by Generations is guaranteed with programmable settings that give you control to ensure consistency with every use, and greens that look and play how you want them.
KEY ATTRIBUTES
| MOWER CUTTING WIDTH | 22″ (0.55 m) |
|---|---|
| MOWER HEIGHT OF CUT | 18″ and 22″ units: 0.062 – 0.438″ (1.6 – 11.1 mm) (bench setting) |
| BLADES PER REEL | 11 or 15 |
| FUEL/BATTERY CAPACITY (+RUN TIME) | 0.66 gal. (2.5 L) |
| MOWER ENGINE | Honda® GX-120 Gas Engine driving a 48v brushless generator |
| POWER | Hybrid Electric drivetrain powered by Honda 4 HP Gas Engine |
| SOUND LEVEL | 88 dBA |
REELS AND BLADES
| NUMBER AND SIZE | Hardened, high manganese carbon steel |
|---|---|
| BLADE MATERIAL | Electronically controlled, 2200 RPM maximum |
| FREQUENCY OF CLIP | Programmable electronically controlled Frequency of Clip based on actual machine speed |
TRACTION, BRAKES AND SPEED
| TRACTION DRIVE | Honda® GX-120 gas engine driving a 48v brushless generator |
|---|---|
| TRACTION DRIVE | 7.75″ (19.68 cm) diameter machine smoothed aluminum drum driven via a brushless DC motor and synchronous belt |
| OPERATOR PRESENCE CONTROL | Standard InCommand™ operator controls (Traction and Reel) with integrated Operator Presence Control |
| DIFFERENTIAL | Full automotive type, housed in traction drum |
| TRACTION DRUM | 7.75″ (19.68 cm) diameter smooth machined aluminum |
| BRAKES | Lever actuated hub brake with parking lock |
| TRANSPORT WHEELS | 2 x Pneumatic 11″ x 4″ (27.94 x 10 cm) |
| MOWING SPEED | lectronically controlled and programable 0 – 3.8 mph (6.12 kph) max |
WEIGHT AND DIMENSIONS
| WEIGHT | 18″: 213 lbs. (97 kg), 22″: 229 lbs. (104 kg), 18″ floating head: 248 lbs. (113 kg), 22″ floating head: 252 lbs. (114 kg) (all weights are with Catcher, grooved steel roller and Kickstand) |
|---|
