Eclispse 2 Hybrid

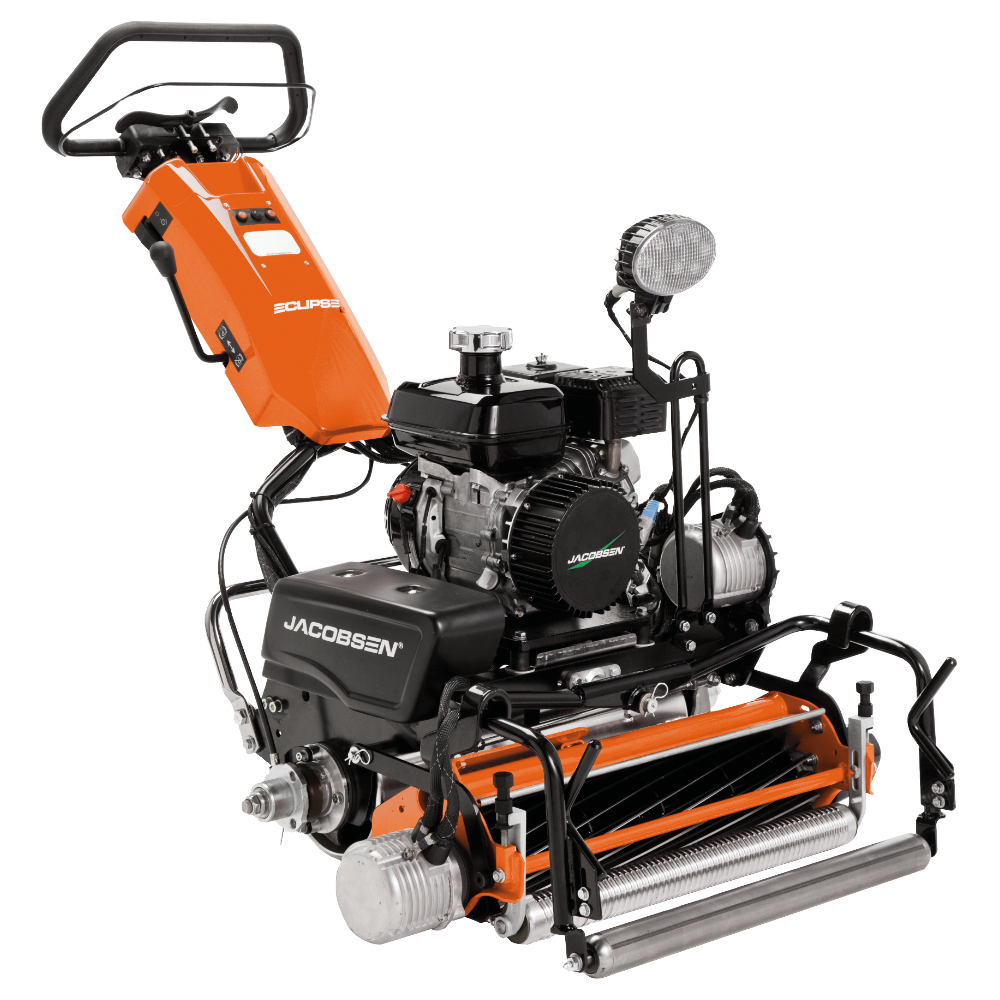

Eclipse 2 Hybrid
Whether you’re cutting baseball in-fields or lawn tennis courts the Eclipse 2 hybrid reel mower guarantees Jake’s Signature Cut Trusted by Generations. Programmable settings give you control to ensure consistency with every use to deliver fine sports turf surfaces precisely as you want them.
KEY FEATURES
KEY ATTRIBUTES
REELS AND BLADES
TRACTION, BRAKES AND SPEED
WEIGHT AND DIMENSIONS
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 18″ (0.46 m), 22″ (0.55 m), or 26″ (0.66 m) Cutting Width |
| MOWER HEIGHT OF CUT | 18″ and 22″ units: 0.062 – 0.438″ (1.6 – 11.1 mm) (bench setting) |
| BLADES PER REEL | 7, 11 or 15 |

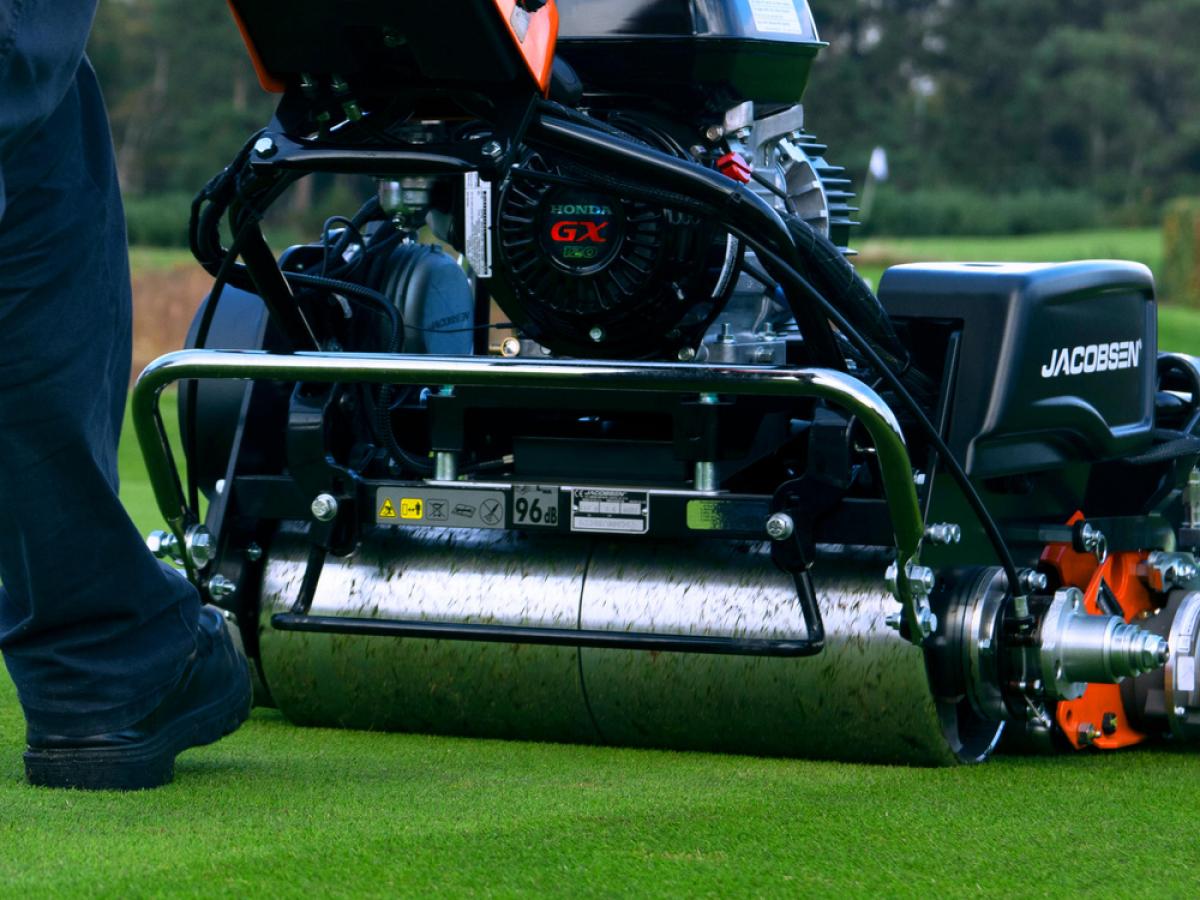

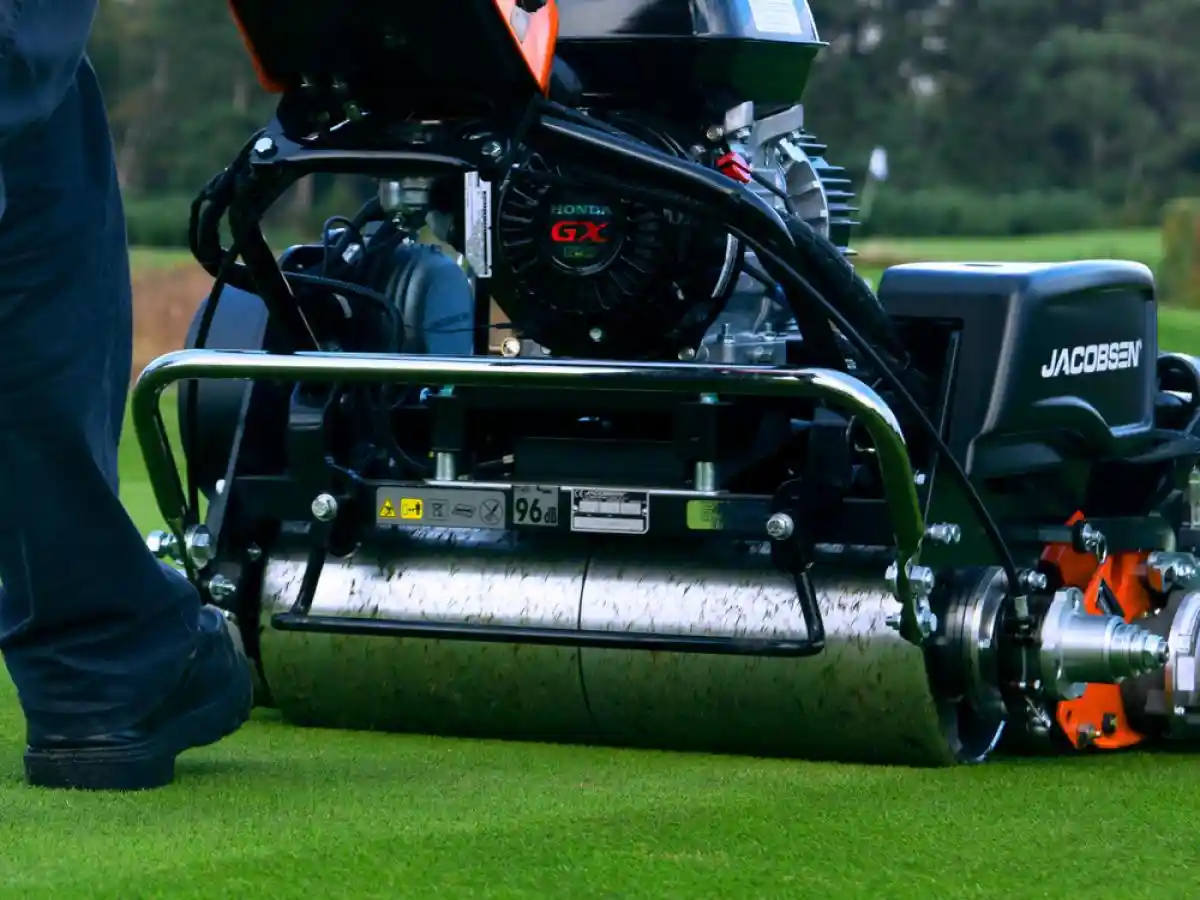

| MOWER ENGINE | Honda® GX-120 Gas Engine driving a 48v brushless generator | Hybrid Electric drivetrain powered by 4hp Gas Engine |
| FUEL/BATTERY CAPACITY | 0.66 gal. (2.5 L) |
| Power | Hybrid Electric drivetrain powered by Honda 4 HP Gas Engine |
| SOUND LEVEL | 88 dBA |
| MOWER WARRANTY | 2 Years |
REELS AND BLADES
| REELS AND BLADES | |
|---|---|
| BLADE MATERIAL | Hardened, high manganese carbon steel |
| REEL SPEED | Electronically controlled, 2200 RPM maximum |
| FREQUENCY OF CLIP | Programmable electronically controlled Frequency of Clip based on actual machine speed |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| MOWER DRIVE SYSTEM | Honda® GX-120 gas engine driving a 48v brushless generator |
| TRACTION DRIVE | 77.75″ (19.68 cm) diameter machine smoothed aluminum drum driven via a brushless DC motor and synchronous belt |

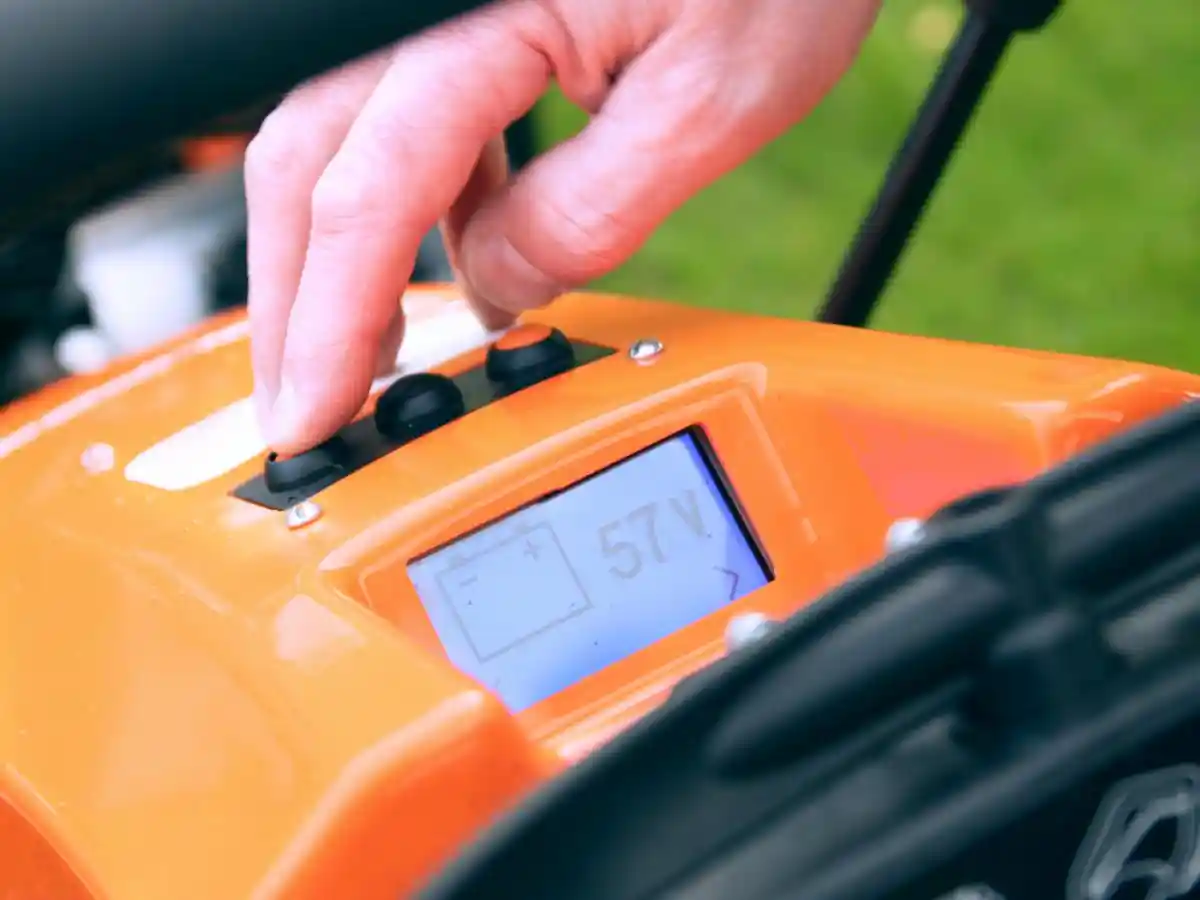

| OPERATOR PRESENCE CONTROL | Standard InCommand™ operator controls (Traction and Reel) with integrated Operator Presence Control |
| DIFFERENTIAL | Full automotive type, housed in traction drum |
| TRACTION DRUM | 77.75″ (19.68 cm) diameter smooth machined aluminum |
| BRAKES | Lever actuated hub brake with parking lock |
| TRANSPORT WHEELS | 2 x Pneumatic 11″ x 4″ (27.94 x 10 cm) |
| MOWING SPEED | Electronically controlled and programable 0 – 3.8 mph (6.12 kph) max |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | 18″: 213 lbs. (97 kg), 22″: 229 lbs. (104 kg), 18″ floating head: 248 lbs. (113 kg), 22″ floating head: 252 lbs. (114 kg) (all weights are with Catcher, grooved steel roller and Kickstand) |
