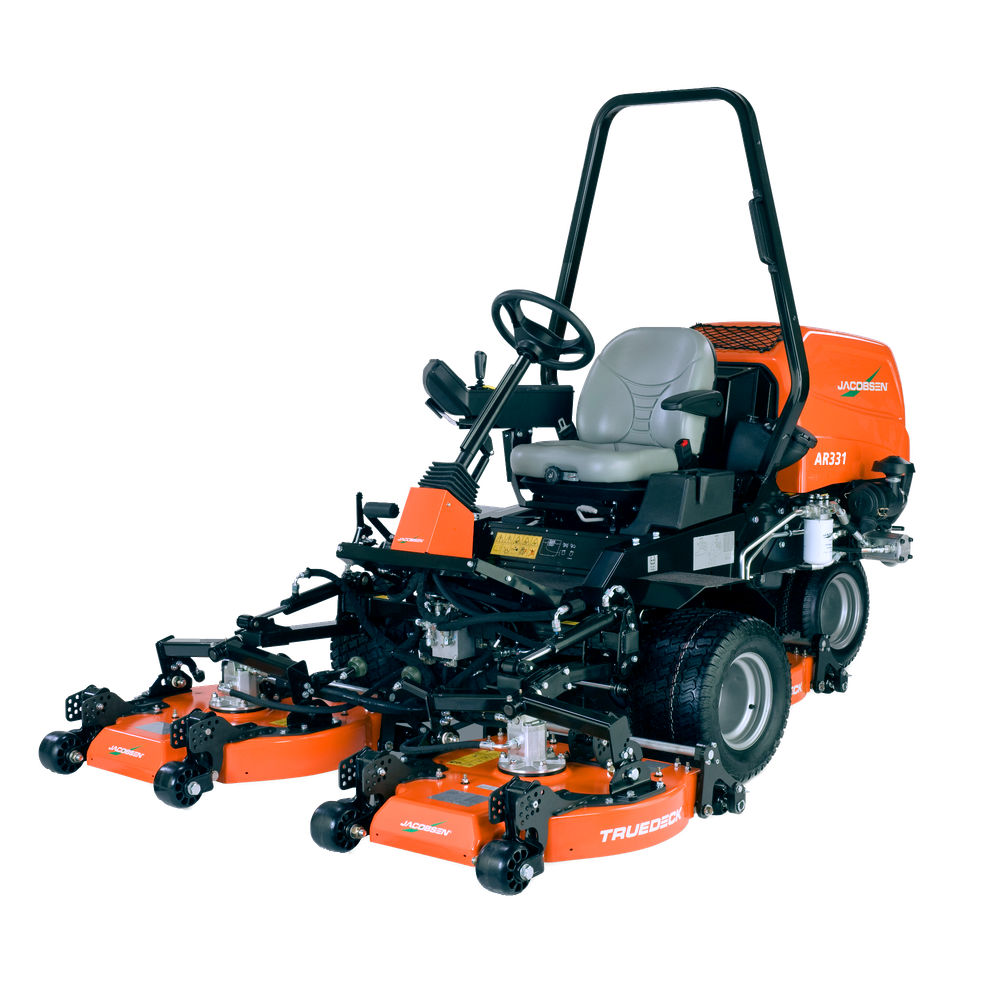

JACOBSEN AR331

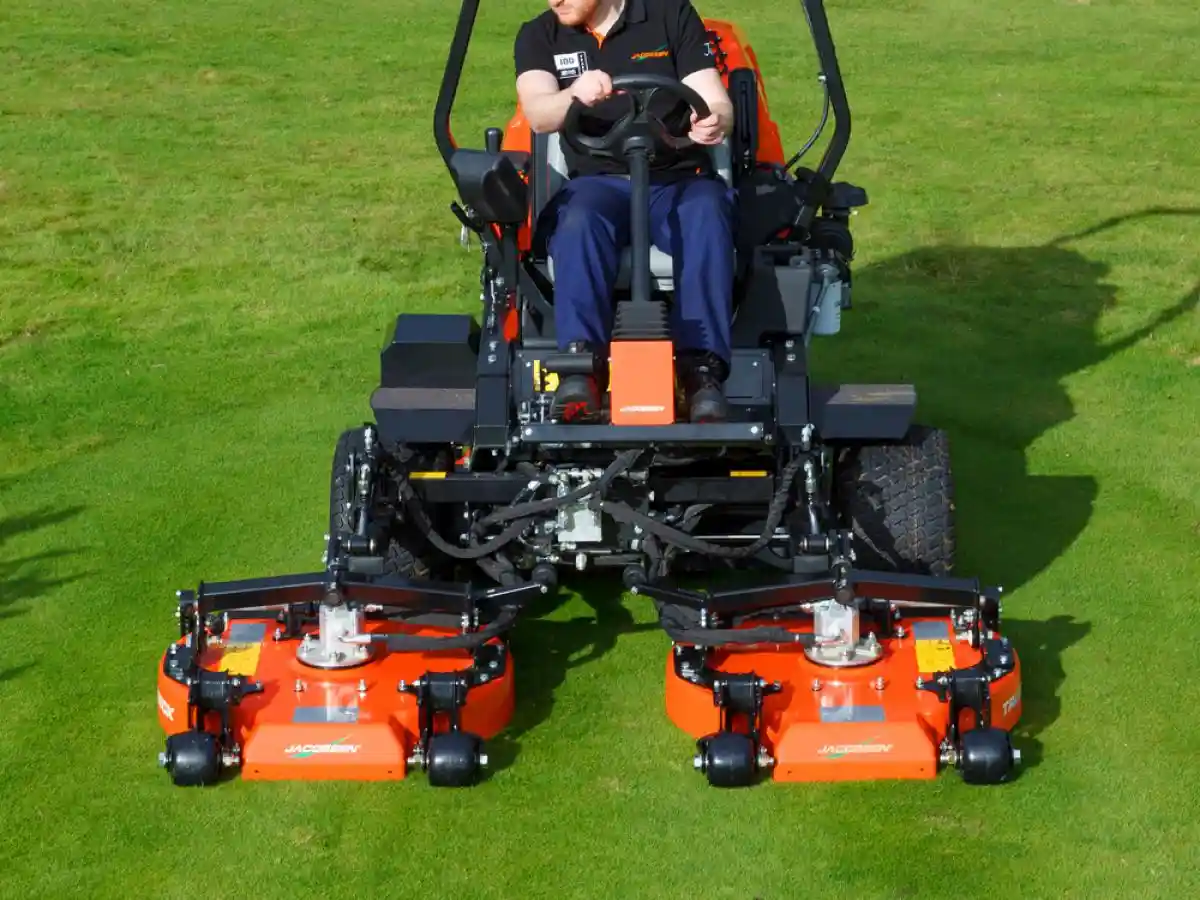

Cut off-field areas, soccer, football, baseball and training fields with precision using the AR331 rotary mower. Jake’s Signature Cut Trusted by Generations is combined with simple routine maintenance and quick adjustments to give you an side-shifting mower that can mow all day and delivers an exceptional after cut appearance.
KEY FEATURES
KEY ATTRIBUTES
REELS AND BLADES
TRACTION, BRAKES AND SPEED
WEIGHT AND DIMENSIONS
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 116″ (2.94 m) |
| MOWER HEIGHT OF CUT | 0.47 – 1.85″ (12 – 47 mm) |
| CUTTING REELS | 26″ (66.4 cm) cylinder, 6.5″ (16.5 cm) diameter floating head cutting unit (5 required) |
| MOWER ENGINE | 44.9 HP (33 kW) Diesel |
| CUTTING CAPACITY | 10.67 acres (4.32 hectares) per hr at 7.5mph (12 kph) |
| FUEL/BATTERY CAPACITY (+RUN TIME) | 9.98 gal. (45.4 L) |
| TRANSPORT SPEED | Selectable up to 8.7 mph (14 kph) |
| MOWER WARRANTY | 2 Years |
REELS AND BLADES
| REELS AND BLADES | |
|---|---|
| NUMBER AND SIZE | 7 or 11 blade cutting head units, 46 cuts per metre at 7.5 mph (12 kph) |
| BLADE MATERIAL | Hardened, high manganese carbon steel |
| CUTTING UNIT LIFT | Wing units can be raised individually for transport |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| TRACTION DRIVE | SureTrac™ Traction System with full-time four-wheel drive in forward and reverse, parallel cross series system |
| REEL DRIVE | Fixed displacement hydraulic motors directly coupled to cutting unit |
| HYDRAULIC SYSTEM | 8.31 gal. (37.8 L) capacity; Grade of oil to A.P.I. Classification CE/SF grades SAE 10W-30 |
| SERVICE BRAKES | Hydrostatic braking |

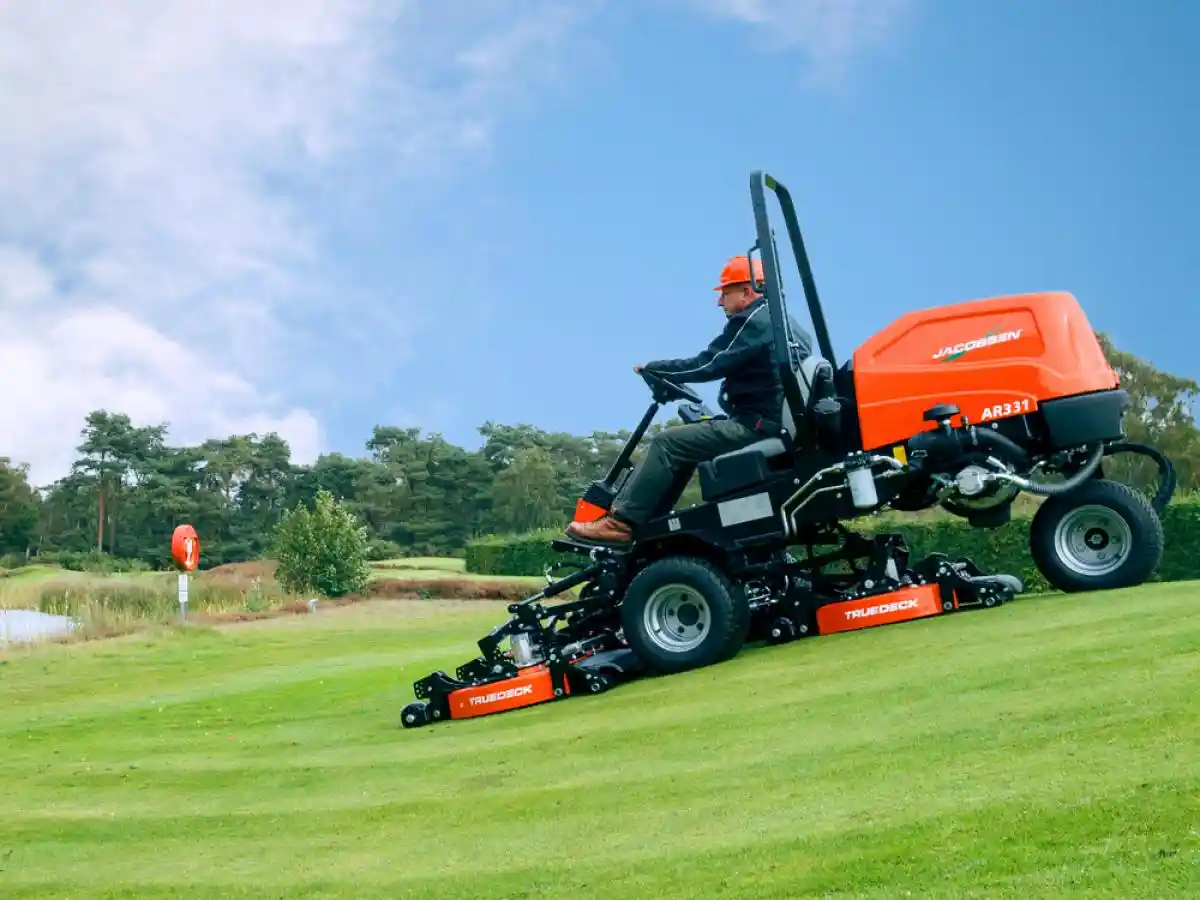

| PARKING BRAKES | Zero-maintenance wet parking brakes |
| STEERING | Hydrostatic power steering with adjustable tilt steering wheel |
| MOWING SPEED | Selectable up to 7.5 mph (12 kph) |
| REVERSE SPEED | Selectable up to 4 mph (6.4 kph) |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | (excluding fuel) 3450 lbs. (1565 kg) |
| LENGTH (LESS CATCHERS) | 116″ (2.95 m) |
| OVERALL HEIGHT (INCLUDING ROPS) | 85″ (2.15 m) |
| WHEEL BASE | 65″ (1.65 m) |
| TRANSPORT WIDTH | 65″ (1.65 m) |
| WORKING WIDTH | 130″ (3.31 m) |
