ECLIPSE 360 ELiTE
ECIPLSE 360 ELiTE
A hydraulic-free design, reduction in operational costs and proven ELiTE lithium battery powered by Samsung SDI technology makes the Eclipse 360 electric mower the greenest, quietest and highest quality Jake cut available for your golf course.
KEY FEATURES
KEY ATTRIBUTES
REELS AND BLADES
TRACTION, BRAKES AND SPEED
WEIGHT AND DIMENSIONS
KEY ATTRIBUTES
| KEY ATTRIBUTES | |
|---|---|
| MOWER CUTTING WIDTH | 62″Â (1.6 m) |
| MOWER HEIGHT OF CUT | 0.062 – 0.438″Â (1.6 – 11.1 mm) |
| BLADES PER REEL | 7, 9, 11 or 15 |

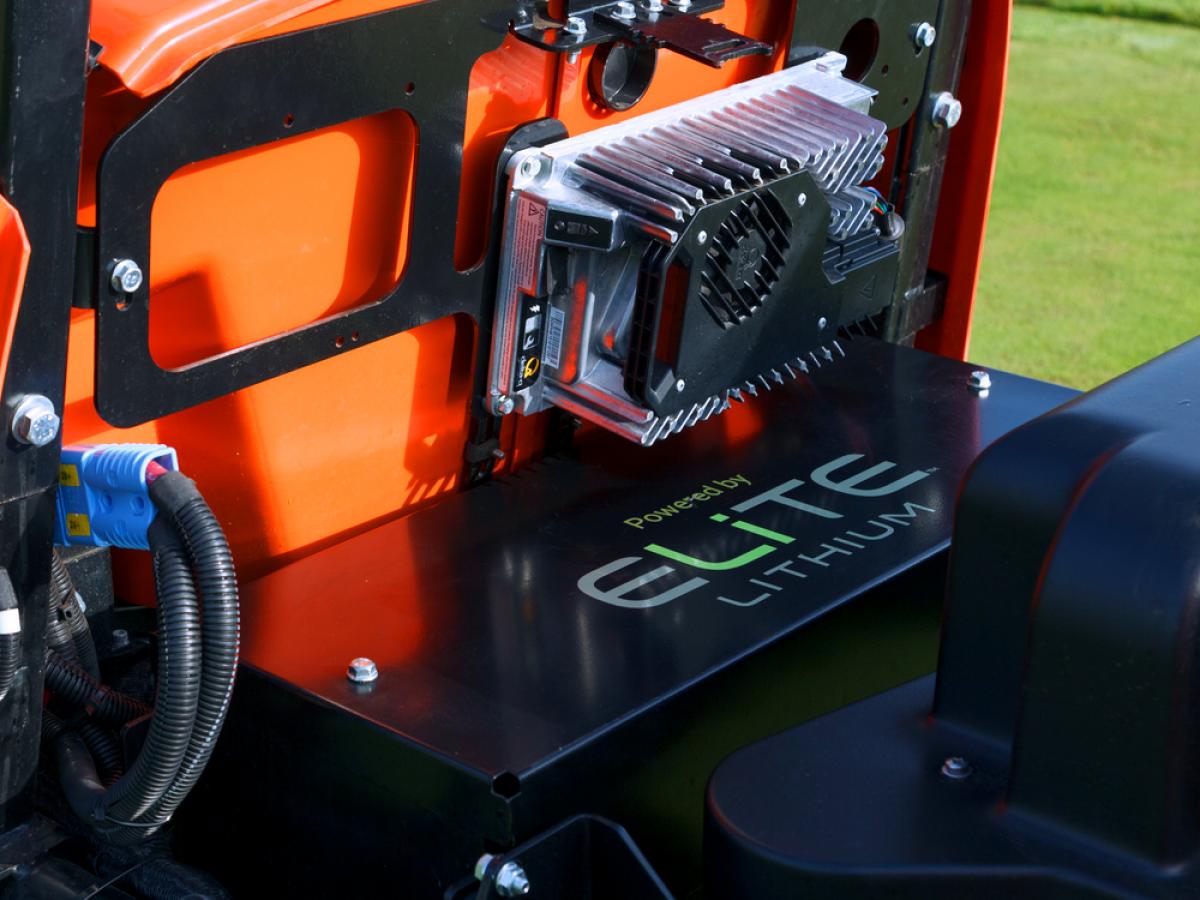

| FUEL/BATTERY CAPACITY (+RUN TIME) | Lithium Battery – 250 Ah lithium pack, 12.2 kW/hrs. |
| MOWER ENGINE | Lithium Battery with onboard charger |
| CUTTING CAPACITY | Cut 143K sq. ft (12,449 sq. m) of greens + 6 miles (9.65 km) of transport with groomers and brushes installed |
| MOWER WARRANTY | 2 Years |
REELS AND BLADES
| REELS AND BLADES | |
|---|---|
| NUMBER AND SIZE | 3 x 22″Â (55.88 cm)Â reels; 5″Â (127 mm)Â diameter |
| BLADE MATERIAL | Hardened, high manganese carbon steel |
| CUTTING UNIT LIFT | New Long Life linear actuator |
| CUTTING FREQUENCY | 0.036 – 0.250″Â (0.91 – 6.35 mm)Â with 15 blade reel, electronically adjustable |
TRACTION, BRAKES AND SPEED
| TRACTION, BRAKES AND SPEED | |
|---|---|
| TRACTION DRIVE | Front / 2WD – AC; 4.4 HPÂ (3.3 kW)Â continuous (Optional 3WD – PM; 3.2 HPÂ (2.4 kW)) |
| REEL DRIVE | One brushless DC motor per reel 1.3 HPÂ (0.97 kW)Â continuous |

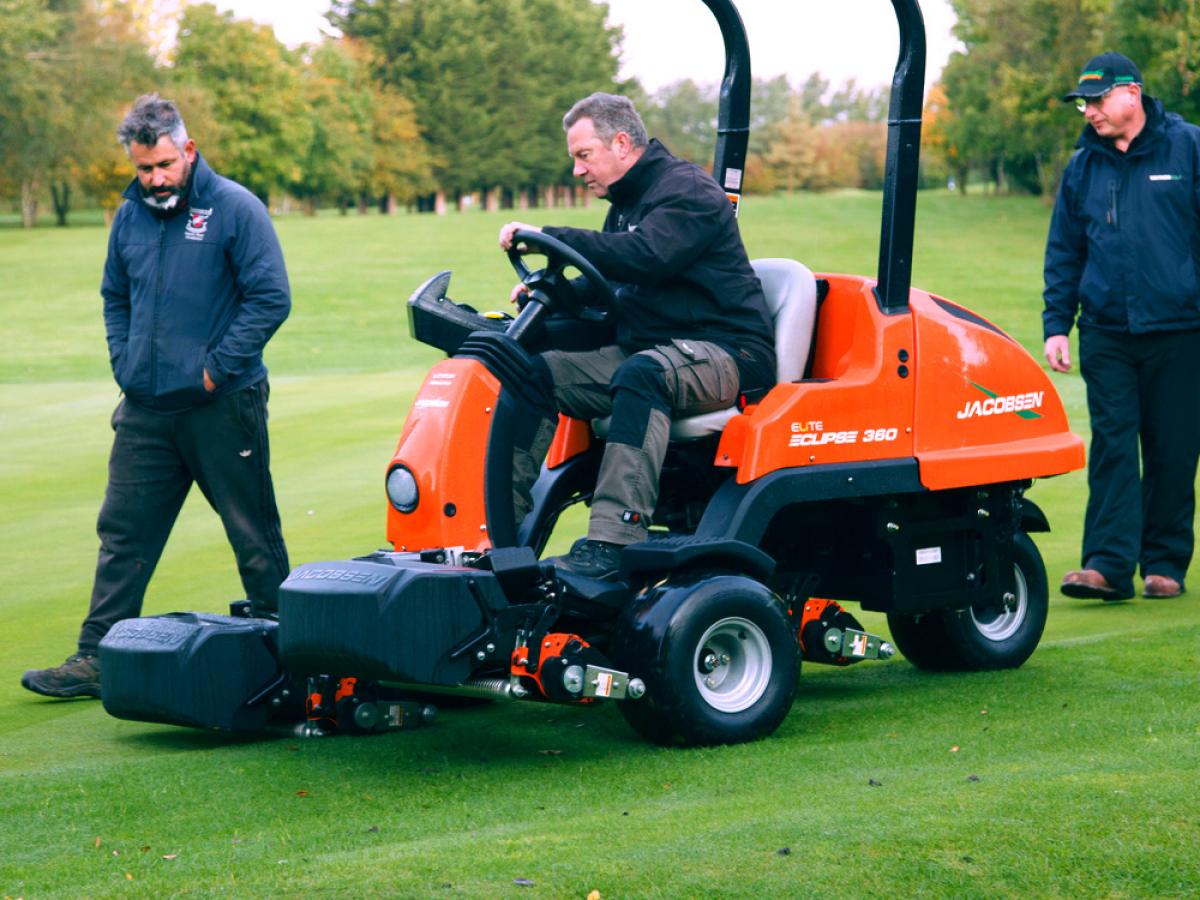

| HYDRAULIC SYSTEM | No Hydraulic Oil |
| SERVICE BRAKES | Dynamic regenerative braking system |
| PARKING BRAKES | Automatic electro-magnetic multi-plate |
| STEERING | Variable ratio Drive-by-wire steering with feedback control |
| MOWING SPEED | 0 – 5.0 mph (0 – 8.9 kph); electronically adjustable max speed |
| TRANSPORT SPEED | 0 – 9.0 mph (0 – 14.5 kph) electronically adjustable max speed |
| TIRES | 18 x 10.5 x 8 4-ply |
WEIGHT AND DIMENSIONS
| WEIGHT AND DIMENSIONS | |
|---|---|
| WEIGHT | 1,598 lbs. (725 kg) with groomers, rear roller brushes, grass boxes and 15 blade reels, charger and aluminum front rollers |
| LENGTH (LESS CATCHERS) | 101″Â (2.56 m)Â (with Catchers) |
| OVERALL HEIGHT INCLUDING ROPS | 79.3″Â (2.01 m) |
| WHEEL BASE | 52″Â (1.32 m) |
| TRANSPORT WIDTH | 52″Â (1.32 m) |
| TRANSPORT WIDTH | 67.7″Â (1.72 m) |
| FLUID CAPACITIES | – |
