PRS Dial Valve

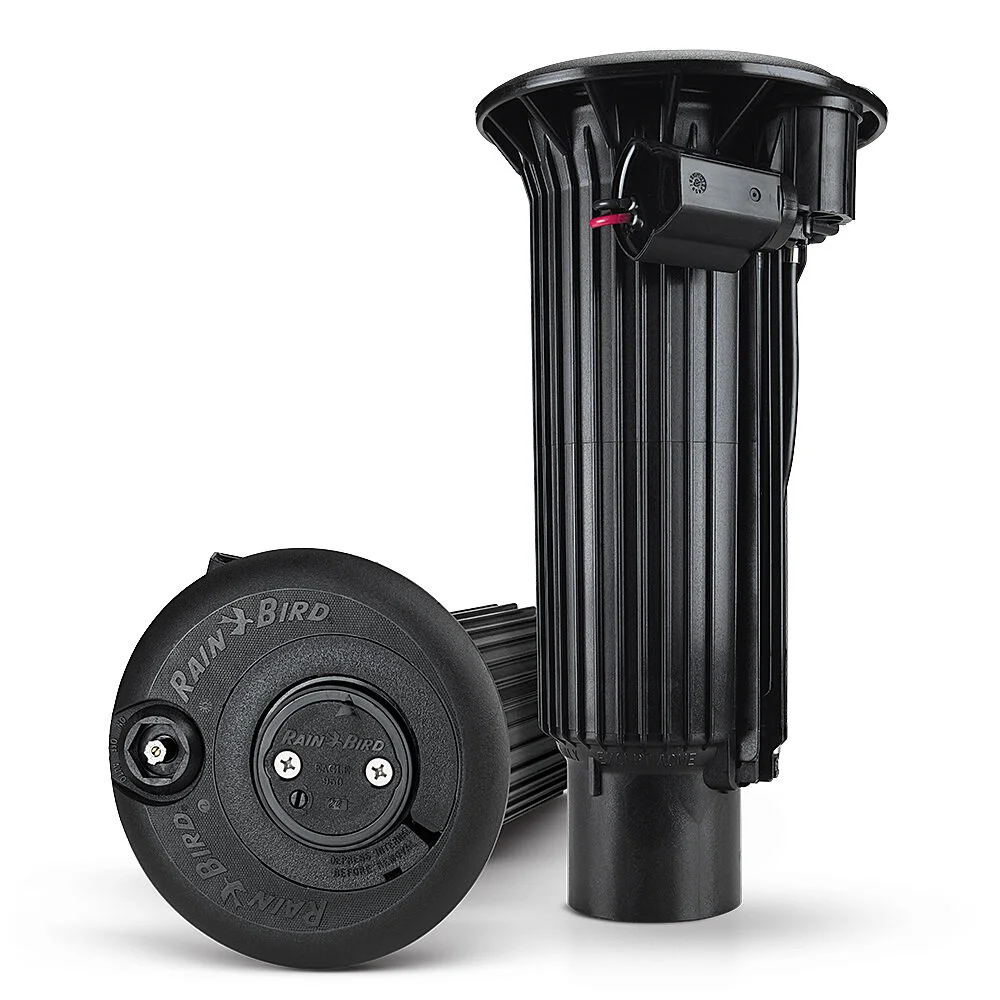

EAGLE™ 900/950 Series
Big spaces demand big performance. Our 900/950 Series Rotors deliver extra-long throw ranges, increased droplet size and uniformity that is reliable and consistent. Choose full-circle 900 Series or 950 Series for part-circle precision application.
FEATURES
FEATURES
Flow Rate
- EAGLE 900: 21.4 to 57.1 gpm (1.35 to 3.60 l/s) (4.85 to 12.97 m³/h)
- EAGLE 950: 19.5 to 59.4 gpm (1.23 to 3.75 l/s) (4.43 to 13.49 m³)
Arc
- EAGLE 900: Full-circle 360°
- EAGLE 950: Part-circle, 40° to 345°
Maximum Inlet Pressure
- Models E and IC: 150 psi (10.3 bars)
- Models SAM: 100 psi (6.9 bars)
Pressure Regulation Range
- 900E/IC & 950E/IC available in 70 and 80 psi (4.8 and 5.5 bars)
Nozzle Trajectory
- Standard: 25°
Inlet Threads
- 1.5″ (3.8 cm) (15/21) ACME Female Threaded
Holdback
- SAM: 15′ (4.6 m) of elevation
Rotation Time
- EAGLE 900: 360° in ≤ 240 seconds; 210 seconds nominally
- EAGLE 950: 180° in ≤ 120seconds; 105 seconds nominally
Maximum Stream Height
- 20′ (6.1 m)
Solenoid
- 24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)
- 60 cycle: 0.25 amp holding current (6.0 VA)
- 50 cycle: 0.32 amp holding current (7.7 VA)
Surge Resistance
- up to 25KV standard on electric models with the GBS-25 solenoid
Top-Serviceable Rock Screen™ and Replaceable Valve Seat
- All 900 & 950 models
Dimensions
- Body Height: 13.4″ (34.0 cm), Pop-Up Height to Mid-Nozzle: 2.25″ (5.7 cm), Top Diameter: 7″ (17.8 cm)
Model Comparison
- E: Electric
- IC: Integrated Control
- SAM: Stopamatic
- 1.5″ (3.8 cm) (15/21) ACME Female Threaded
Holdback
- SAM: 15′ (4.6 m) of elevation
Rotation Time
- EAGLE 900: 360° in ≤ 240 seconds; 210 seconds nominally
- EAGLE 950: 180° in ≤ 120seconds; 105 seconds nominally
Maximum Stream Height
- 20′ (6.1 m)
Solenoid
- 24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)
- 60 cycle: 0.25 amp holding current (6.0 VA)
- 50 cycle: 0.32 amp holding current (7.7 VA)
Surge Resistance
- up to 25KV standard on electric models with the GBS-25 solenoid
Top-Serviceable Rock Screen™ and Replaceable Valve Seat
- All 900 & 950 models
Dimensions
- Body Height: 13.4″ (34.0 cm), Pop-Up Height to Mid-Nozzle: 2.25″ (5.7 cm), Top Diameter: 7″ (17.8 cm)
Model Comparison
- E: Electric
- IC: Integrated Control
- SAM: Stopamatic
