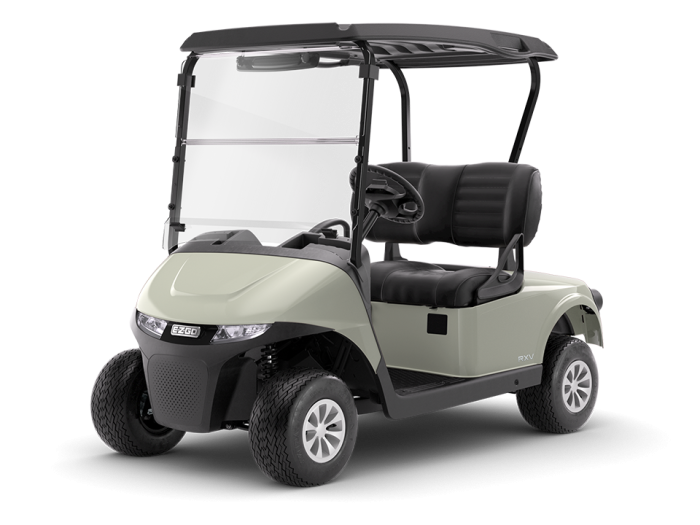

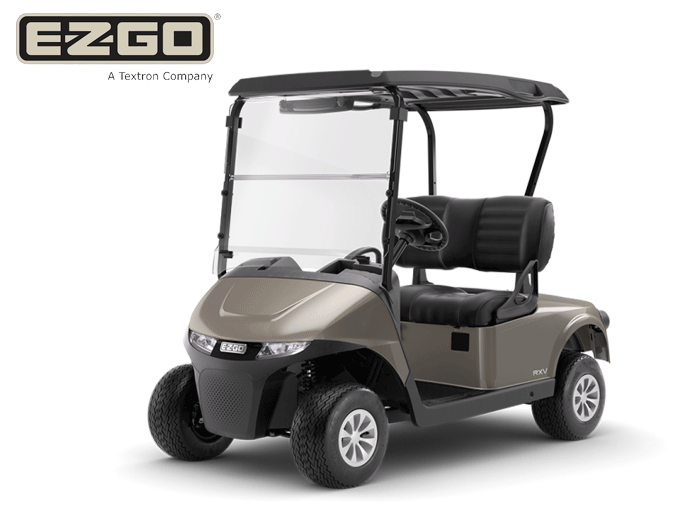

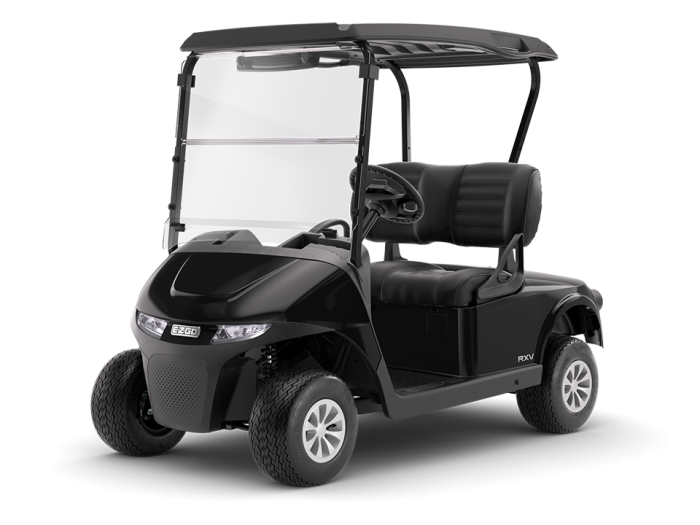

E-Z-GO RXV
As the long-standing leader in golf car innovation, the E‑Z‑GO® RXV® continues to raise the bar on superior golf car performance. Equipped with your choice of ELiTE Lithium technology with energy-efficient IntelliBrake technology and an automatic parking brake, or the first-of-its-kind EX1 gas engine with closed-loop EFI, the RXV delivers unmatched reliability and efficiency. Customize the RXV to fit your needs with a host of upgraded features and take your fleet to the next level.
Vehicle Highlights

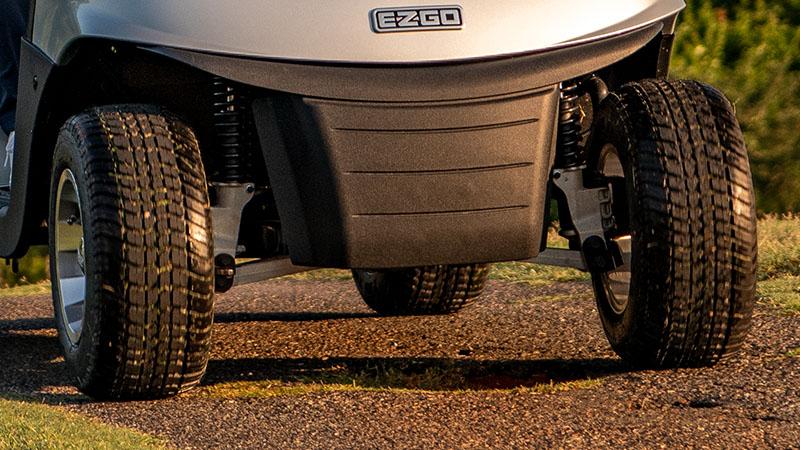

Impact Resistant Bumper
A front and back bumper to keep your golf cart protected.

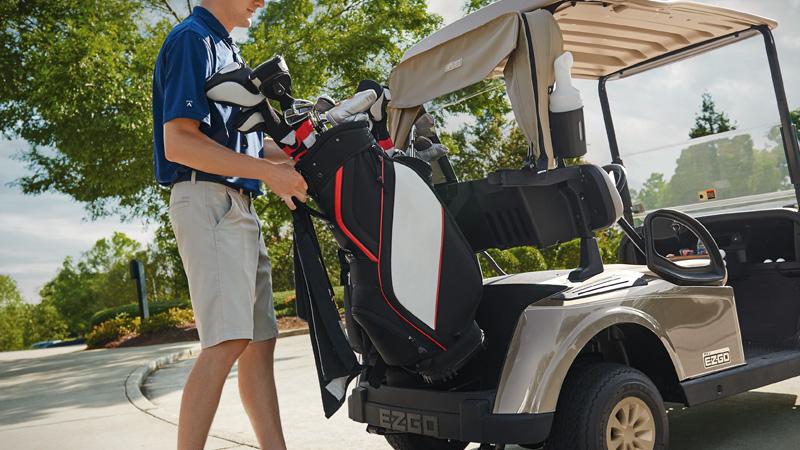

Industry's Largest Bagwell
The industry’s largest golf bagwell for easy access and storage for golf bag and clubs.

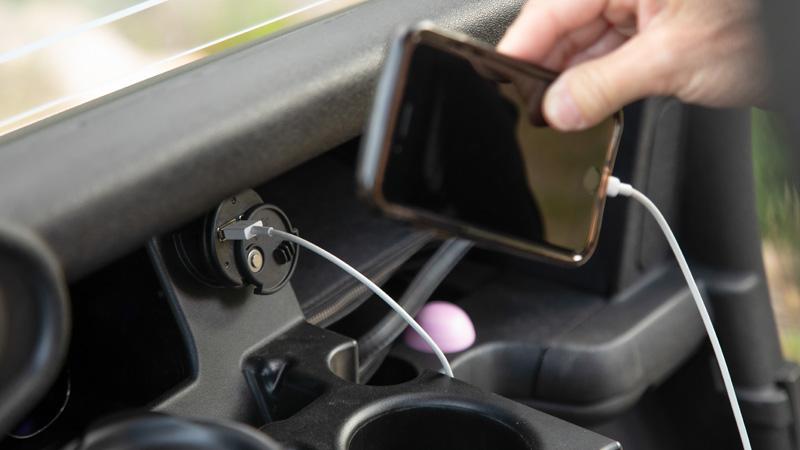

Optional USB Port
USB port to charge personal items anywhere on the golf course.

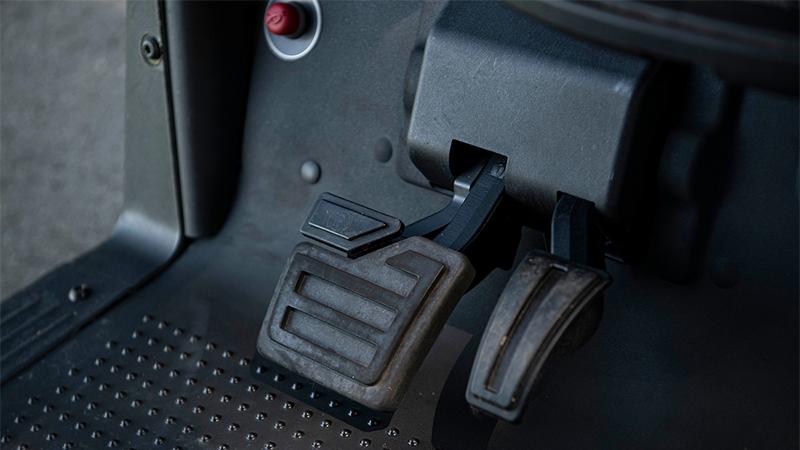

Hanging Pedals
Automotive-style pedals provide refined styling, improved durability, and comfort.
Specs
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| OVERALL LENGTH | 94.5 in (240 cm) | |
| OVERALL WIDTH | 47.0 in (119 cm) | |
| OVERALL HEIGHT (W/O ROOF) | 47.5in (121 cm) | |
| OVERALL HEIGHT (W/ ROOF) | 70 in (178 cm) | |
| WHEEL BASE | 65.7 in (167 cm) | |
| FRONT WHEEL TRACK | 35.5 in (90 cm) | |
| REAR WHEEL TRACK | 38.0 in (97 cm) | |
| GROUND CLEARANCE @ DIFFERENTIAL | 4.0 in (10cm) | |
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| MOTOR TYPE | Single Cylinder OHC, 4 Cycle, 9.15 cu in (150 cc) | 48 Volt AC |
| HORSEPOWER (KW) | 11.5 hp (8.6 kW) J1995 standard | 4.4 hp (3.3 kW) Continuous |
| ELECTRICAL SYSTEM | Brushless DC Internal Starter Generator | 56-Volt |
| BATTERIES (QTY/TYPE) | One, 12-Volt Maintenance-Free | ELiTE 2.0, 56V Lithium |
| KEY OR PEDAL START | Pedal | |
| BATTERY CHARGER | N/A | Lithium World Charger 56VDC 11 ft. DC Cord |
| SPEED CONTROLLER | N/A | 235-amp Solid-State AC Controller |
| DRIVETRAIN | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| TRANSAXLE | Differential W/ Helical Gears | Limited Slip Differential |
| GEAR SELECTION | Forward-Reverse | Forward-Neutral-Reverse Integrated |
| REAR AXLE RATIO | 11:47:1 (Forward) 14:35:1 (Reverse) | 16.99:1 |
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| SEATING CAPACITY | 2-Passenger | |
| DRY WEIGHT | 676 lb (307 kg) | 605 lb (274.4 kg)s |
| CURB WEIGHT | 692 lb (314 kg) | 655 lb (297.1 kg) |
| VEHICLE LOAD CAPACITY | 500-800 lb (227-360 kg) | |
| OUTSIDE CLEARANCE CIRCLE | 19.0 ft (5.8 m) | 19.2 ft (5.8 m) |
| SPEED (LEVEL GROUND) | 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) | 8-15mph (13-24kph) |
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| STEERING | Double-Ended Rack and Pinion | |
| SUSPENSION | Front: Independent A-Arm Coil-Over Shock; Rear: Mono-Leaf Spring With Hydraulic Shocks | |
| SERVICE BRAKE | Rear Wheel Mechanical Self-Adjusting Drums | Induction Motor |
| PARKING BRAKE | Self-Compensating, Single Point Engagement | Automatic Electro-Magnetic |
| TIRES | 18 x 8.50-8 (4-ply rated) | 18 x 8.50-8 (4-ply rated) |
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| FRAME | Welded Steel with Powder-Coat Protection | |
| BODY & FINISH | Injection Molded TPO | |

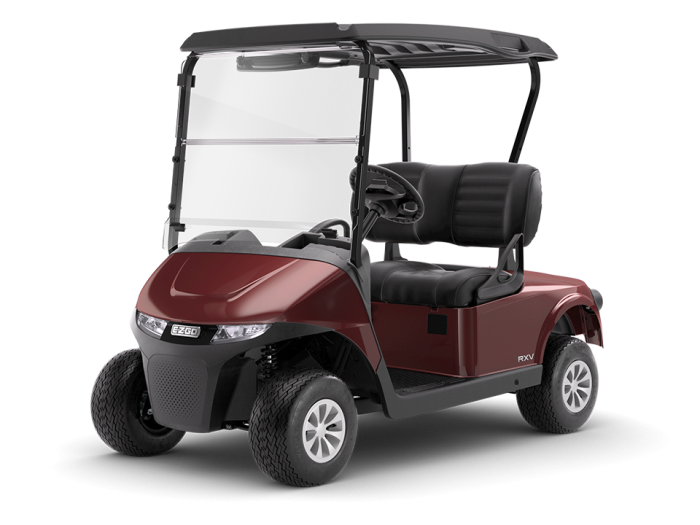

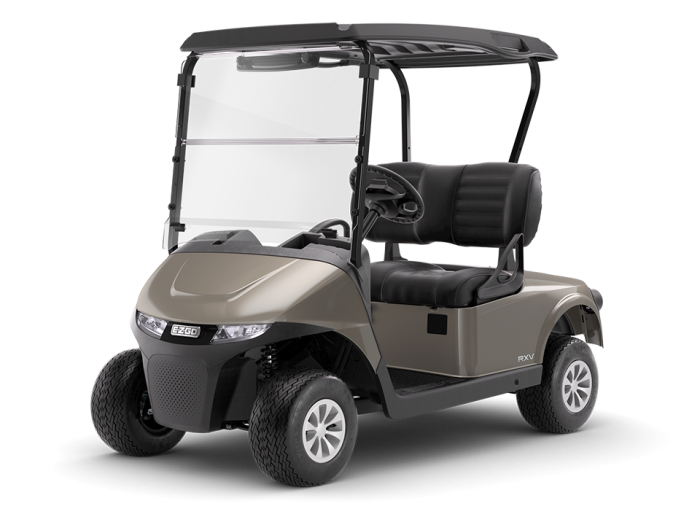

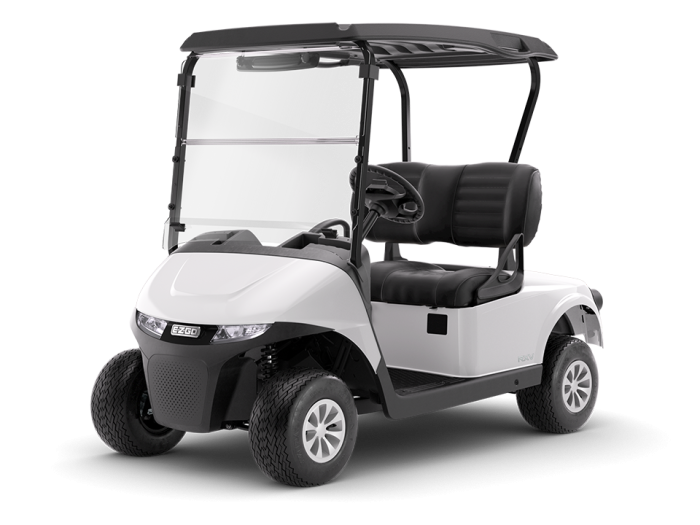

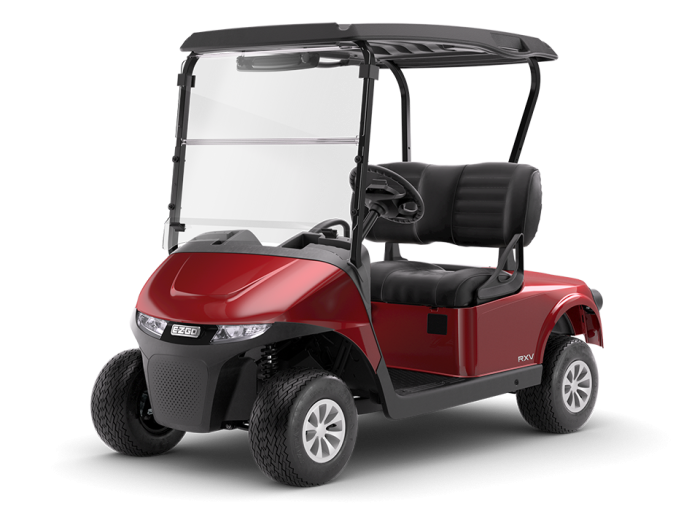

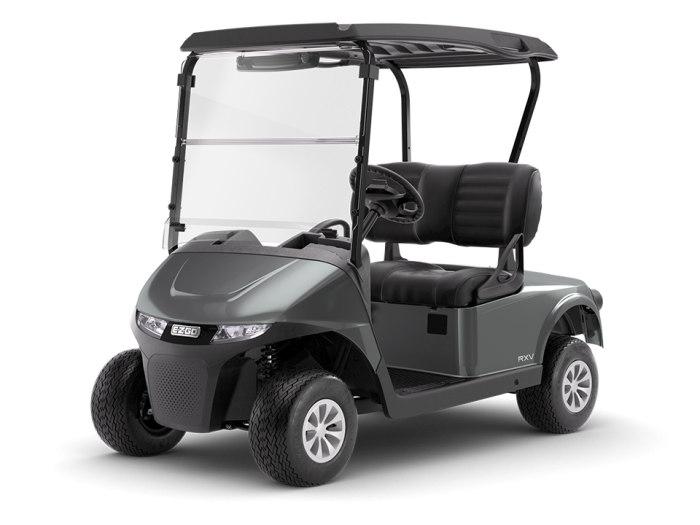

| AVAILABLE BODY COLORS | Forest Green, Almond, Black, Bright White, Burgundy, Inferno Red, Ivory, Metallic Charcoal, Ocean Gray, Platinum, Patriot Blue, Slate | |
| AVAILABLE SEAT COLORS | Stone Beige, Oyster, Gray, Black | |
| VAILABLE PREMIUM SEAT COLORS | Mushroom, Gray (custom colors also available) | |
