E-Z-GO LIBERTY LSV

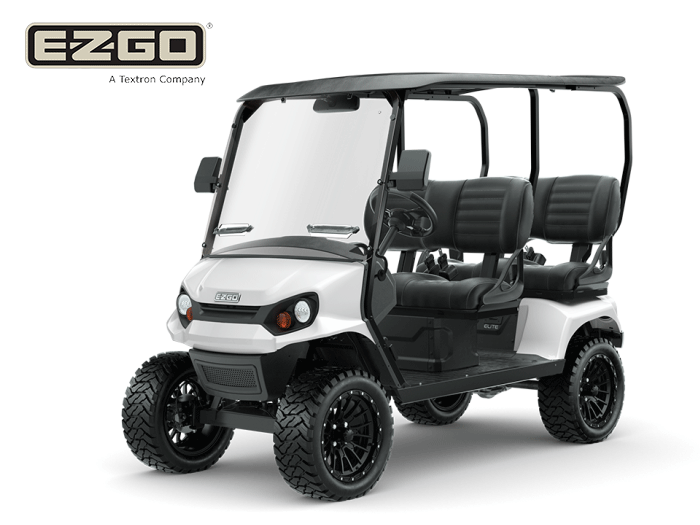

E-Z-GO Liberty LSV
Chase new avenues and journeys in the all-new street-legal E‑Z‑GO Liberty LSV. With four spacious forward-facing seats, backup camera, stereo system andoptional infotainment system with Apple CarPlay and Android Auto capabilities, the Liberty LSV is the perfect vehicle for going everywhere the road takes you.

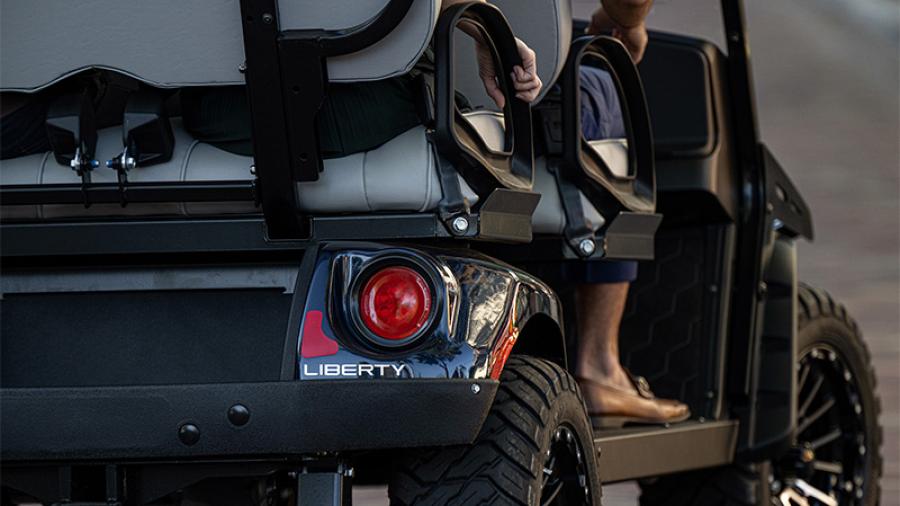

Vehicle Highlights

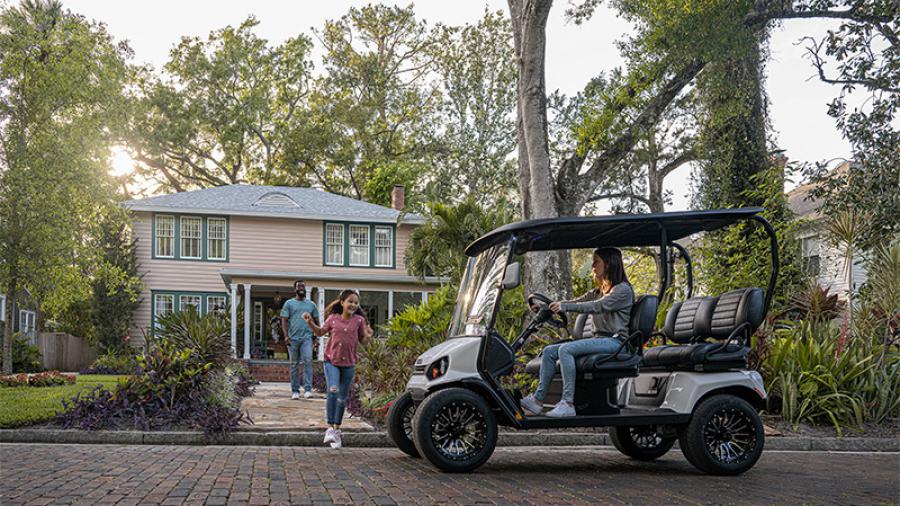

Industry-Leading Safety Features
With a higher protective structure, Department of Transportation certified seatbelts and windshields, and Pedestrian Warning Systems, the Liberty LSV can give you peace of mind on every drive.Â
Premium Performance
With the ELiTE Lithium powertrain, optimized wheelbase, and speeds of up to 25 MPH, the Liberty LSV gives you greater maneuverability for your smoothest ride yet.

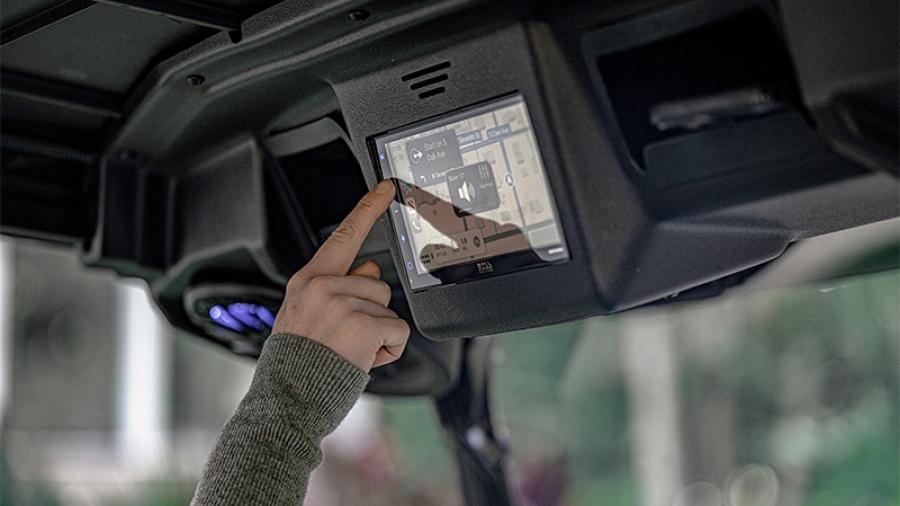

Infotainment System
E‑Z‑GO gives a whole new meaning to connectivity with a brand-new infotainment system with Apple CarPlay® and Android Auto capabilities™.
ELiTE Lithium Powertrain
With the proven performance of the ELiTE Lithium powertrain activated by Samsung SDI Technology, you can drive with ease. Upgrade to a 4.2 twin or 6.2 triple pack for extended range.
Specs
| ELITE LITHIUM | |
|---|---|
| OVERALL LENGTH | 106.5 in (271 cm) |
| OVERALL WIDTH | 46 in (117 cm) |
| OVERALL HEIGHT (W/O ROOF) | 52.5 in (113 cm) |
| OVERALL HEIGHT (W/ ROOF) | 75.5 in (192 cm) |
| WHEEL BASE | 77.5 in (197 cm) |
| FRONT WHEEL TRACK | 38 in (97 cm) |
| REAR WHEEL TRACK | 39 in (99 cm) |
| GROUND CLEARANCE @ DIFFERENTIAL | 7 in (18 cm) |
| ELITE LITHIUM | |
|---|---|
| POWER SOURCE | 56.7V DC |
| MOTOR TYPE | AC Induction |
| HORSEPOWER (KW) | 11.7 hp (8.7 kW) |
| ELECTRICAL SYSTEM | 56.7V |
| BATTERIES (QTY/TYPE) | Two Li-Ion 56 Volt Modules ELiTE 4.2 Twin (Standard Configuration) |
| KEY OR PEDAL START | Pedal |
| BATTERY CHARGER | 56.7 V 900 W World Charger, 3 m Charging Cord |
| SPEED CONTROLLER | 235 amp AC controller |
| DRIVETRAIN | Motor Shaft Direct Drive |
| TRANSAXLE | Limited Slip Differential with Helical Gears |
| GEAR SELECTION | Dash Mounted FNR/Key Switch |
| REAR AXLE RATIO | 16.99:1 (Forward) |
| ELITE LITHIUM | |
|---|---|
| SEATING CAPACITY | 4-Passenger |
| DRY WEIGHT | 966 lb (437 kg) |
| CURB WEIGHT | 1040 lb (471 kg) |
| DASH/ IP STORAGE CAPACITY | 1123 in² (18403 cm² |
| VEHICLE LOAD CAPACITY | 800 lb (364 kg) |
| TOW CAPACITY | 500 lbs |
| REAR CARGO RACK LOAD CAPACITY | 100 lb (45.6 kg) |
| TURNING RADIUS | 12.85 ft (3.92m) |
| OUTSIDE CLEARANCE CIRCLE | 23.9 ft (7.30 m) |
| SPEED (LEVEL GROUND) | 25 mph (40.2 kph) |
| ELITE LITHIUM | |
|---|---|
| STEERING | Self-Compensating Reduction Rack and Pinion |
| SUSPENSION | Leaf Springs with Hydraulic Shock Absorbers |
| SERVICE BRAKE | our-wheel Hydraulic, Front Disk; Rear Self-adjusting Drum |
| PARKING BRAKE | Automatic Electromagnetic |
| TIRES | Paramount M/T 23×10-14 |
| ELITE LITHIUM | |
|---|---|
| FRAME | Welded Steel with DuraShield Powder Coat |
| FRONT BODY & FINISH | Injection Molded TPO |
| BACK BODY & FINISH | Thermoform ABS |
| AVAILABLE BODY COLORS | Black, Bright White, Flame Red, Ocean Grey, Slate, Metallic Charcoal |
| AVAILABLE SEAT COLORS | Gray on Black |
| AVAILABLE PREMIUM | Black, Mushroom, Gray |
