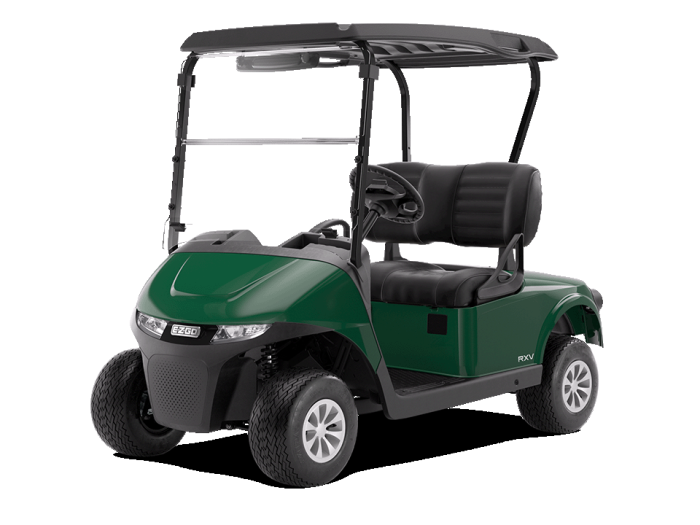

E-Z-GO FREEDOM RXV
E-Z-GO FREEDOM RXV
The NEW E‑Z‑GO® Freedom RXV is designed to make the most out of every ride with a wide range of new features including a sleek design and modern dash for maximum convenience. At the heart of it, the Freedom RXV is an easygoing ride with premier performance and unparalleled efficiency, trip after trip. Customize yours with an infotainment system and see why the Freedom RXV is always good to go.
Vehicle Highlights

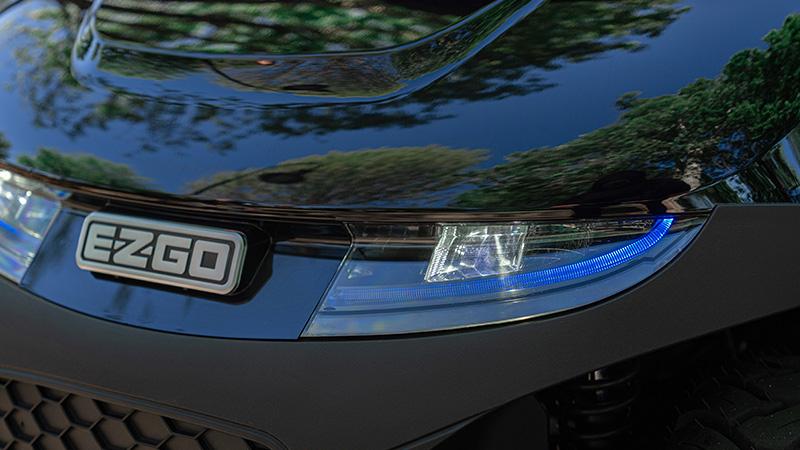

Modern Front End & Dash
The newly designed Freedom RXV gives you a more streamlined experience for greater ease and unparalleled efficiency wherever you go.

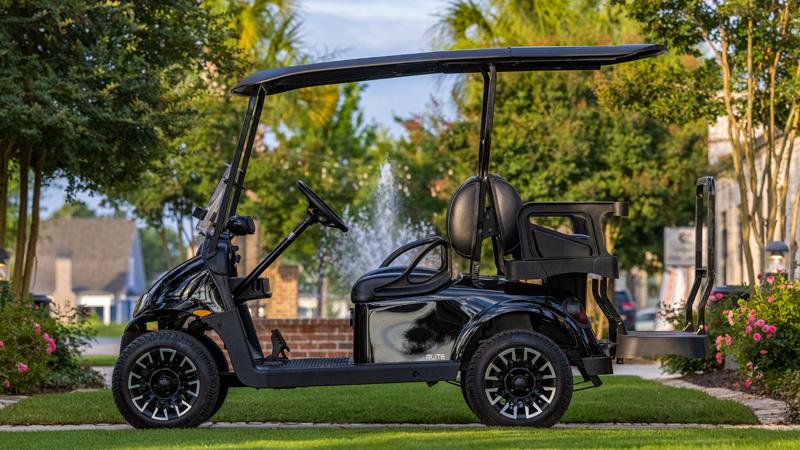

New Modular Canopy
Featuring a sleek new design with a built-in water management system, integrated hands grasps and easy conversion from a 54″ top to an 80″ top. Available on 4 passenger vehicles only.
Optional Infotainment System
E‑Z‑GO gives a whole new meaning to connectivity with a brand-new optional infotainment system addition with Apple CarPlay® and Android Auto capabilities™.

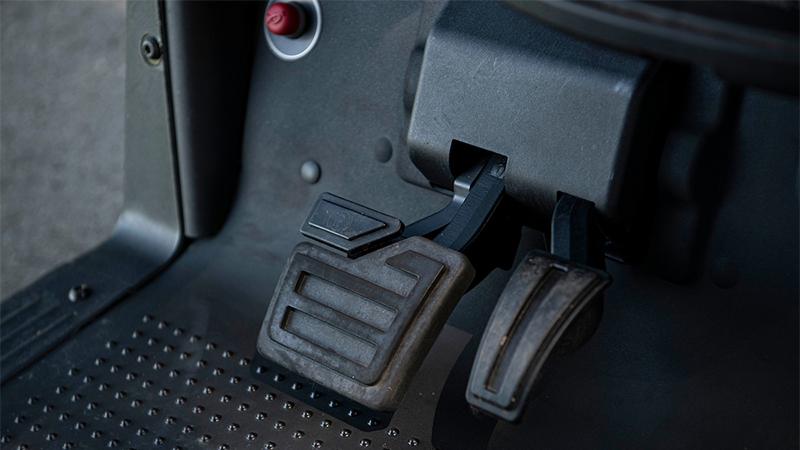

Hanging Pedals
Automotive-style pedals providing a refined style, improved durability and comfort to every ride.
Specs
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| OVERALL LENGTH | 94.5 in (240 cm) | 94.5 in (240 cm) |
| OVERALL WIDTH | 47.0 in (119 cm) | |
| OVERALL HEIGHT (W/O ROOF) | 47.5in (121 cm) | |
| OVERALL HEIGHT (W/ ROOF) | 70 in (178 cm) | |
| WHEEL BASE | 65.7 in (167 cm) | |
| FRONT WHEEL TRACK | 35.5 in (90 cm) | |
| REAR WHEEL TRACK | 38.0 in (97 cm) | |
| GROUND CLEARANCE @ DIFFERENTIAL | 4.0 in (10cm) | |
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| POWER SOURCE | Single Cylinder OHC, 4 Cycle, 9.15 cu in (150 cc) | 56 Volts AC |
| HORSEPOWER (KW) | 11.5 hp (8.6 kW) J1995 Standard | 4.4 hp (3.3 kW) Continuous |
| ELECTRICAL SYSTEM | Brushless DC Internal Starter Generato | 56 Volt |
| BATTERIES (QTY/TYPE) | One, 12-Volt Maintenance-Free | ELiTE 2.0, 56V Lithium |
| KEY OR PEDAL START | Pedal | |
| BATTERY CHARGER | N/A | Lithium World Charger 56VDC (11 ft., 18 ft.) Cord |
| SPEED CONTROLLER | N/A | 235 Amp AC Controller |
| DRIVETRAIN | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| TRANSAXLE | Differential W/ Helical Gears | Limited Slip Differential |
| GEAR SELECTION | Forward-Reverse | Dash Mounted Forward-Neutral-Reverse |
| REAR AXLE RATIO | 11:47:1 (Forward) 14:35:1 (Reverse) | 16.99:1 |
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| SEATING CAPACITY | 2 or 4 Passenger | |
| DRY WEIGHT | 676 lb (307 kg) | 655 lb (298 kg) (With two Li-Ion Modules) |
| CURB WEIGHT | 692 lb (314 kg) | 655 lb (298 kg) (With two Li-Ion Modules) |
| VEHICLE LOAD CAPACITY | 500-800 lb (227-360 kg) | |
| OUTSIDE CLEARANCE CIRCLE | 19.0 ft (5.8 m) | 19.2 ft (5.8 m) |
| SPEED (LEVEL GROUND) | 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) | 17.5-19.5 mph (28-31 kph) |
| EX1 GAS | ELITE LITHIUM | ||
|---|---|---|---|
| STEERING | Double-Ended Rack and Pinion | ||
| SUSPENSION | Front: Independent A-Arm Coil-Over Shock; | ||
| SERVICE BRAKE | Rear Wheel Mechanical Self-Adjusting Drums | Induction Motor | |
| PARKING BRAKE | Self-Compensating, Single Point Engagement | Automatic Electro-Magnetic | |
| TIRES | 18 x 8.50-8 (4-ply rated) | ||
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| FRAME | Welded Steel with Powder-Coat Protection | |
| BODY & FINISH | Injection Molded TPO | |

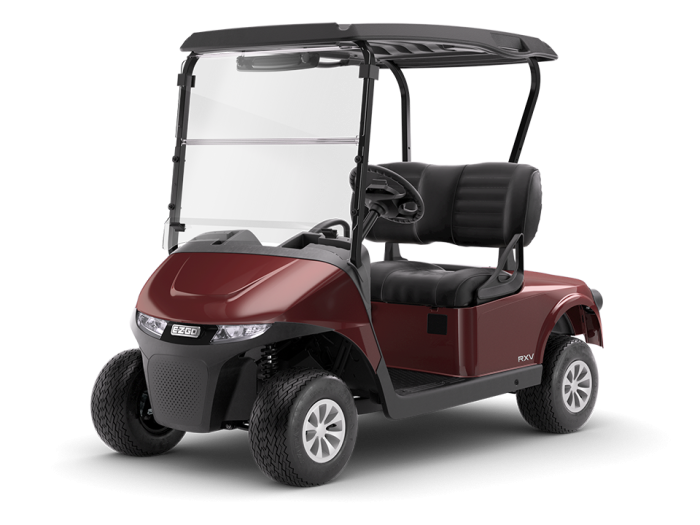

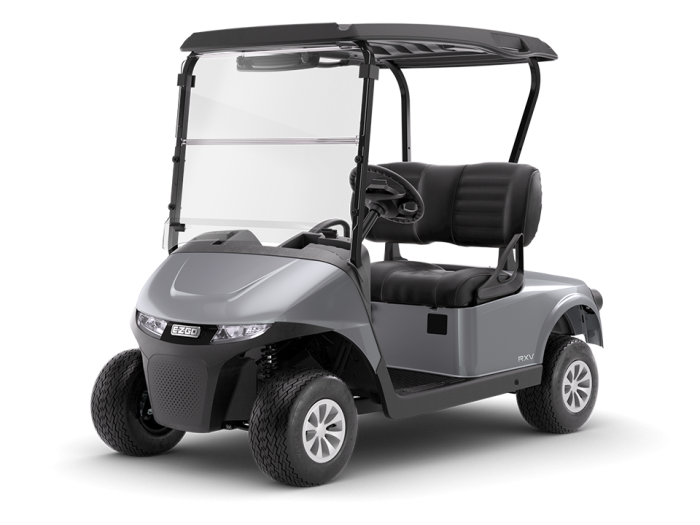

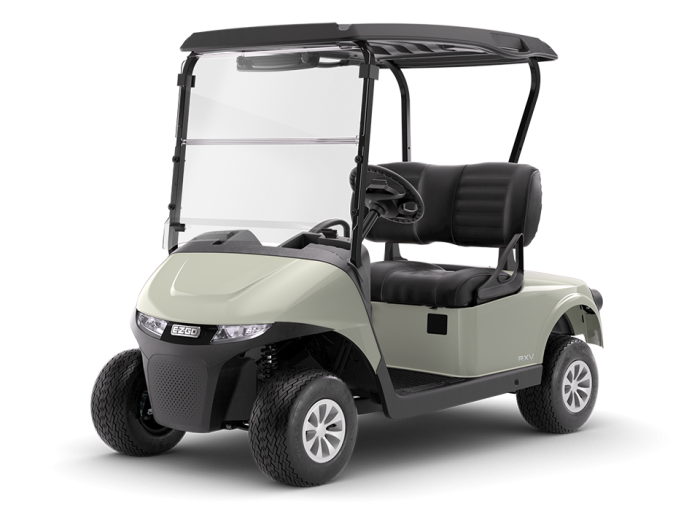

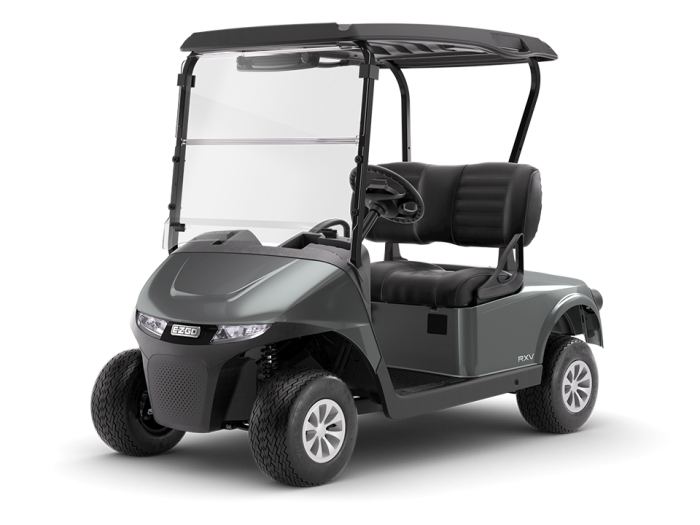

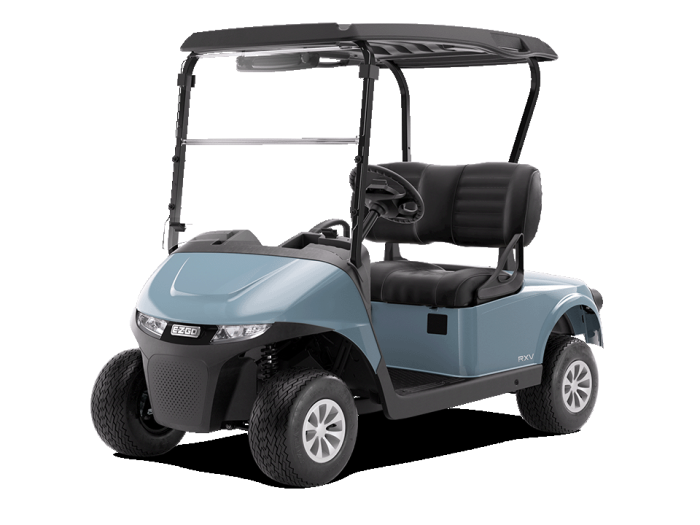

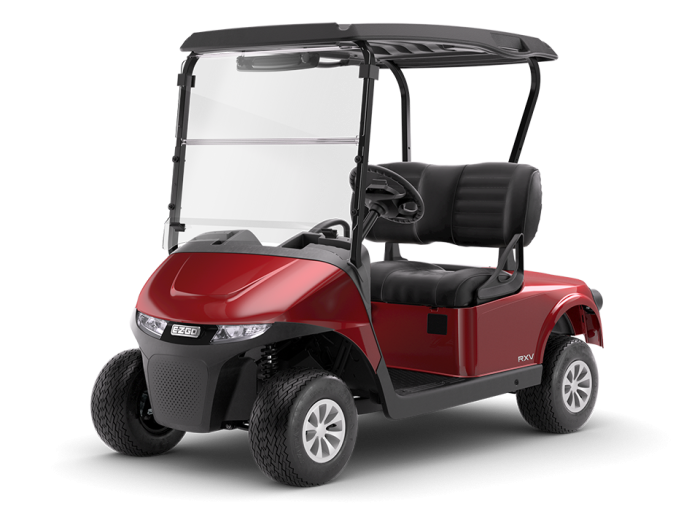

| AVAILABLE BODY COLORS | Forest Green, Almond, Black, Bright White, Burgundy, Inferno Red, Ivory, Metallic Charcoal, Ocean Gray, Platinum, Patriot Blue, Slate | |
| AVAILABLE SEAT COLORS | Stone Beige, Oyster, Black | |
| VAILABLE PREMIUM SEAT COLORS | Mushroom, Gray, Black (custom colors also available) | |
