E-Z-GO EXPRESS S6

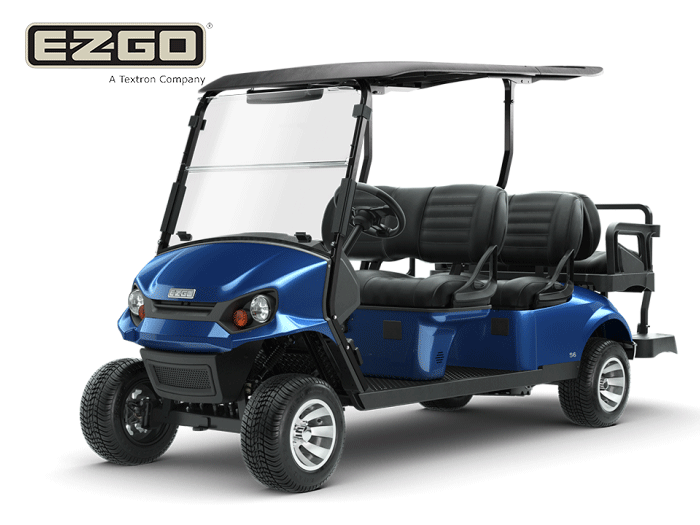

E-Z-GO Express S6
Nobody rides in their golf cart alone, so why not bring everyone along? With the E‑Z‑GO Express S6, you will effortlessly bring 6 passengers along for the adventure. Everyone will experience style and comfort with extended leg room, convenient dashboard storage pockets and bold styling. With a choice of an efficient 13.5-HP closed-loop EFI gas powertrain or a maintenance-free ELiTE  battery pack, the Express S6 will take your passengers on a getaway they will never forget.Â
Vehicle Highlights
Rear Seat with Enclosed Storage
Featuring convenient, enclosed storage, the rear-facing seat provides both comfort and functionality.
Premium Dashboard With Extra Storage
Stylish interior with a premium golf cart dashboard featuring versatile cup holders and more functional storage.

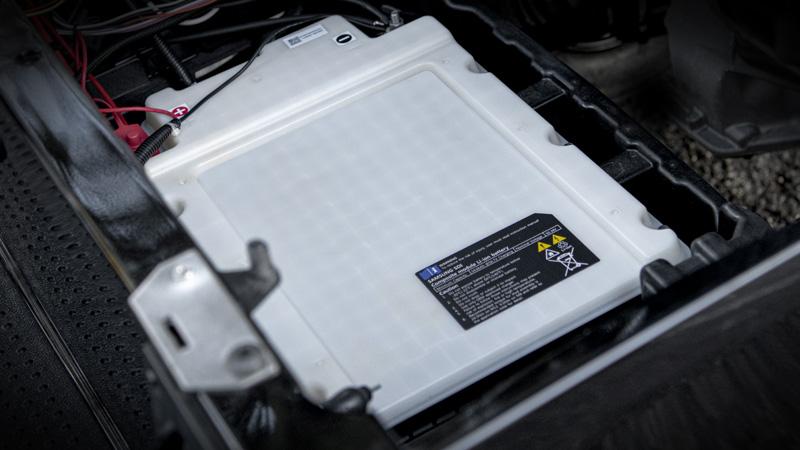

ELiTE Lithium Battery Pack Options
With the choice of the 4.2 twin or 6.2 triple maintenance-free ELiTE lithium battery pack, you will always be good to go.
New Modular Canopy
Featuring a sleek new design with a built-in water management system and integrated hand grasps, the new modular canopy will give your ride a new look.
Specs
| ELITE LITHIUM | GAS | |
|---|---|---|
| OVERALL LENGTH | 142.8 in (363 cm) | 144.5 in (367 cm) |
| OVERALL WIDTH | 51 in (130 cm) | 49 in (125 cm) |
| OVERALL HEIGHT (W/O ROOF) | 51 in (130 cm) | |
| OVERALL HEIGHT (W/ ROOF) | 74.5 in (189 cm) | |
| WHEEL BASE | 99.5 in (253 cm) | |
| FRONT WHEEL TRACK | 38.5 in (98 cm) | |
| REAR WHEEL TRACK | 38.5 in (98 cm) | |
| GROUND CLEARANCE @ DIFFERENTIAL | 6.1 in (15.5 cm) | 5.5 in (14 cm) |
| ELITE LITHIUM | GAS | |
|---|---|---|
| POWER SOURCE | 56 Volt DC | 4 Cycle 24.5 cu in (401 cc) |
| MOTOR TYPE | 56 Volt AC | – |
| FUEL SYSTEM | – | Closed-Loop Electronic Fuel Injection |
| HORSEPOWER (KW) | 14.9 hp (11.1 kW) Peak | 13.5 hp (10.1 kW) Exceeds SAE J1940 Std |
| ELECTRICAL SYSTEM | 56 Volt | Starter/Generator – Solid State Regulator |
| BATTERIES (QTY/TYPE) | Two Li-Ion 56 Volt Modules ELiTE 4.2 Twin (Standard Configuration) | One, 12 Volt Maintenance Free |
| KEY OR PEDAL START | Pedal Start | |
| AIR CLEANER | – | Replaceable Dry Cartridge |
| LUBRICATION | – | Pressurized Oil System |
| OIL FILTER | – | Spin-On |
| COOLING SYSTEM | – | Air Cooled |
| FUEL CAPACITY | – | 5.2 Gallon (19.8 L) Tank |
| BATTERY CHARGER | 56.7 V 811W World Charger | – |
| SPEED CONTROLLER | 350 Amp AC | – |
| DRIVETRAIN | Motor Shaft Direct Drive | Continuously Variable Transmission (CVT) |
| TRANSAXLE | Clutch Type Limited-Slip Differential with Helical Gears | Differential with Helical Gears |
| GEAR SELECTION | Dash Mounted Forward-Neutral-Reverse | Forward-Reverse |
| REAR AXLE RATIO | 17:1 (Forward) | 11.47:1 (Forward); 14.35:1 (Reverse) |
| ELITE LITHIUM | GAS | |
|---|---|---|
| SEATING CAPACITY | 6-Passenger | |
| DRY WEIGHT | 1100 lb (499 kg) | 1130 lb (513 kg) |
| CURB WEIGHT | 1100 lb (499 kg) | 1130 lb (513 kg) |
| VEHICLE LOAD CAPACITY | 1047 lb (475 kg) | |
| TURNING RADIUS | 14.4 ft (4.4 m) | |
| OUTSIDE CLEARANCE CIRCLE | 25.5 ft (7.8 m) | 28.8 ft (8.8 m) |
| SPEED (LEVEL GROUND) | 19 mph (31 kph) max with provided wheel spacers | 17 mph ± 0.5 mph (26 kph ± 0.8 kph) |
| ELITE LITHIUM | GAS | |
|---|---|---|
| SEATING CAPACITY | Self-Compensating Rack and Pinion | |
| SUSPENSION | Leaf Springs with Hydraulic Shock Absorbers | |
| SERVICE BRAKE | Rear Wheel Mechanical Self-Adjusting Drum | |
| PARKING BRAKE | Automatic Electro-Magnetic | 205/65 Loadstar Tire with 10-in. Daytona Wheel (Standard Package), 215/40 Paramount M/T on 12-in. Rogue Wheel (Cruiser Package) |
| ELITE LITHIUM | GAS | |
|---|---|---|
| FRAME | Welded steel with E-coat & DuraShield powder coat | |
| BODY & FINISH | Injection Molded TPO | |

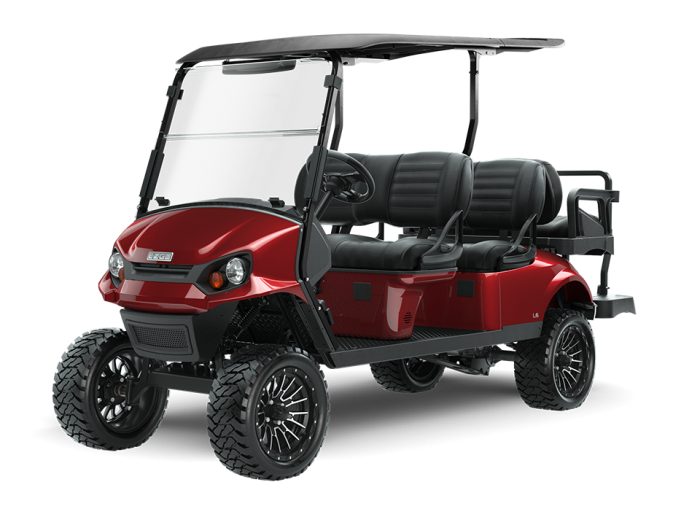

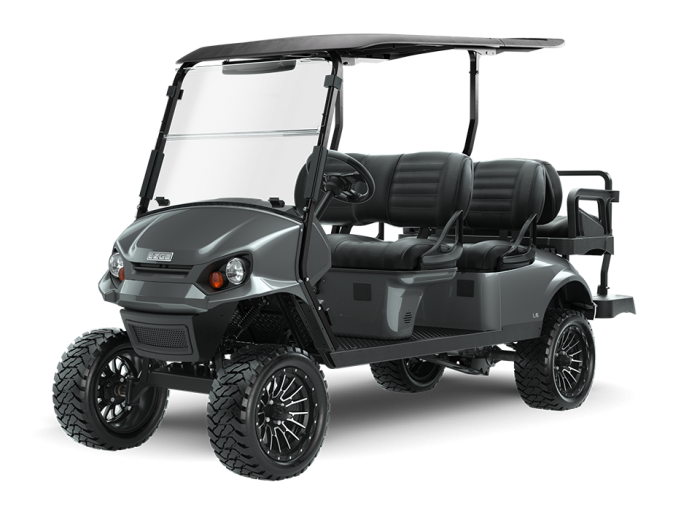

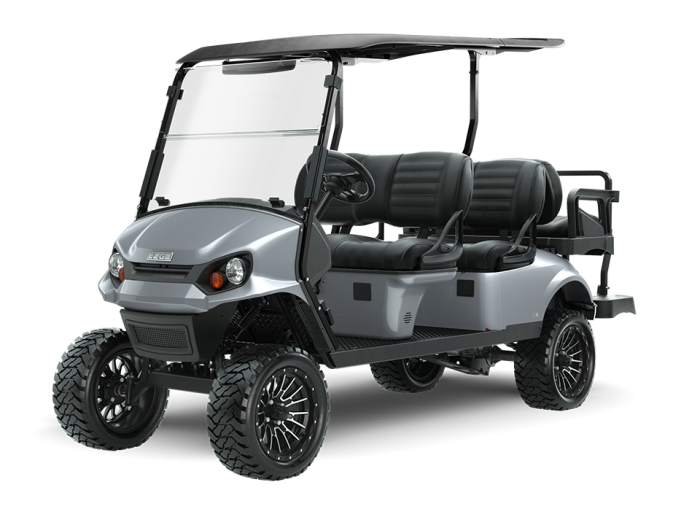

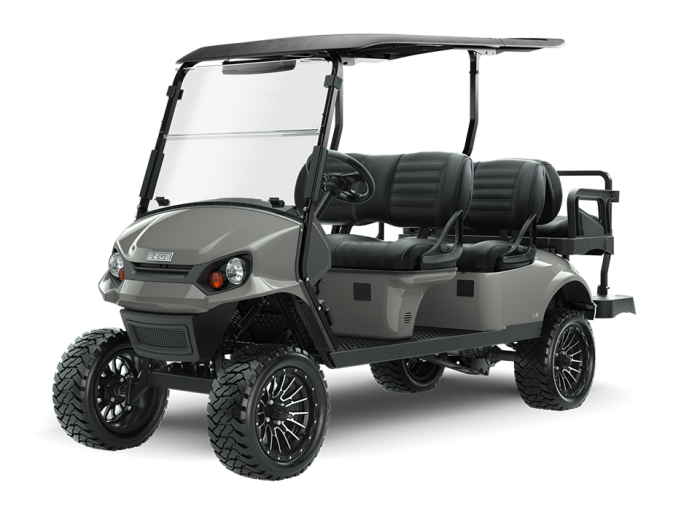

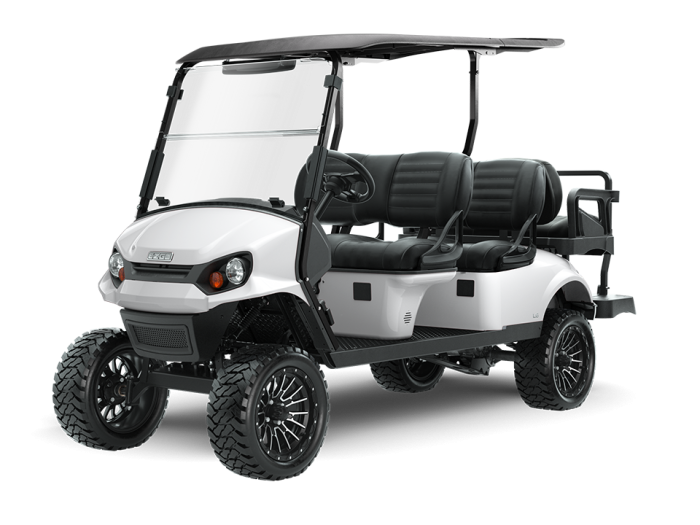

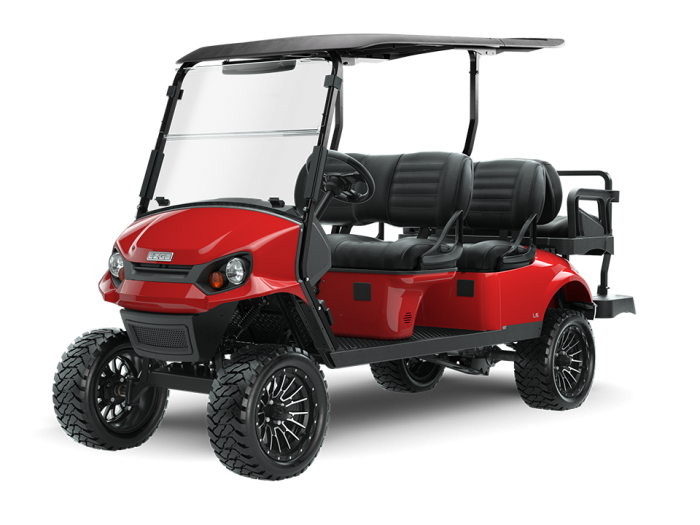

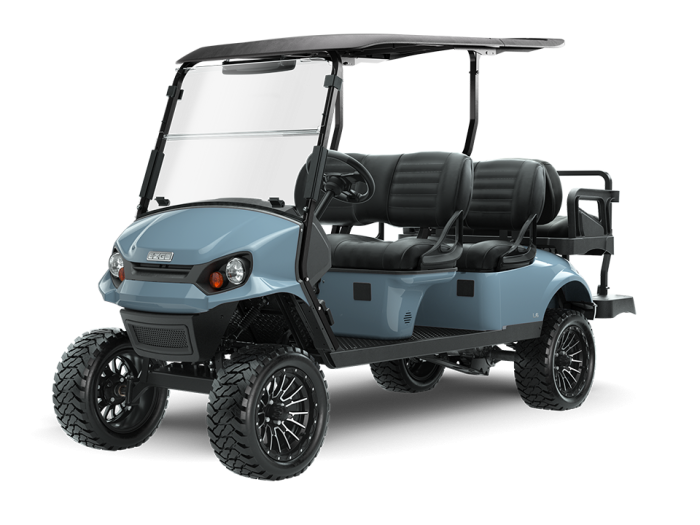

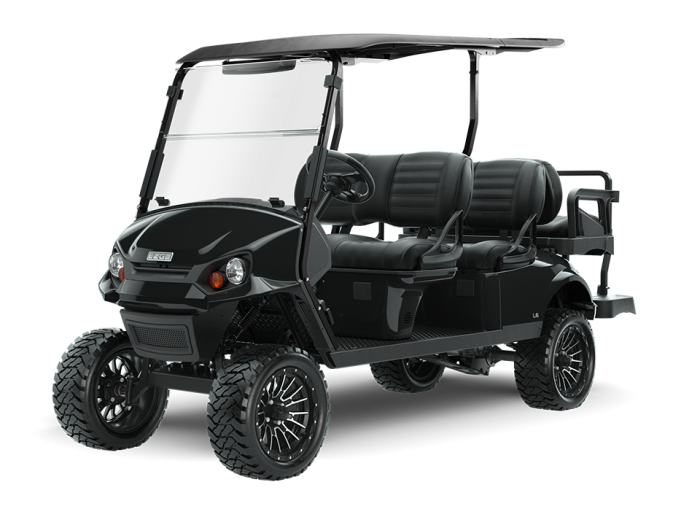

| BAVAILABLE BODY COLORS | Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Gray, Platinum, Bright White, Slate | |
| AVAILABLE SEAT COLORS | Oyster, Tan, Black, Grey on Black, White on Beige | |
| AVAILABLE PREMIUM SEAT COLORS | Black, Mushroom, Grey | |
