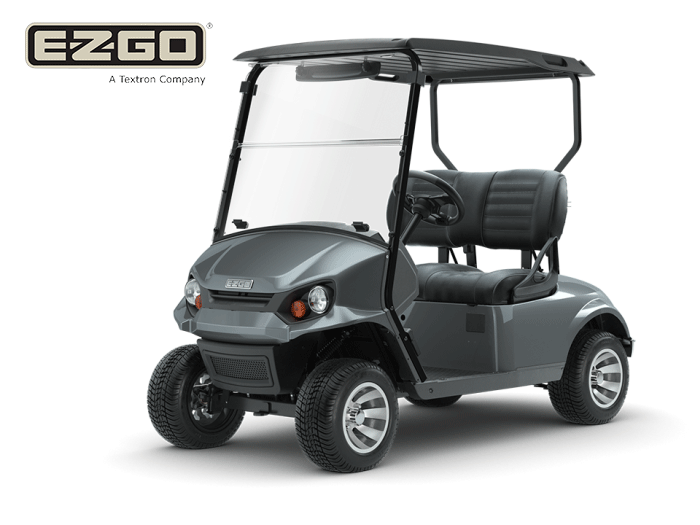

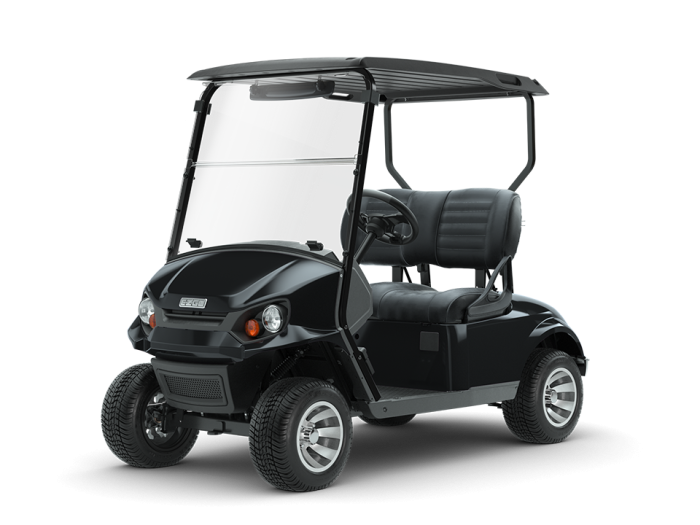

E-Z-GO EXPRESS S2
E-Z-GO EXPRESS S2
With bold styling, higher ground clearance, and the proven
performance of the ELiTE Lithium powertrain, your drive to
the store will feel more like a vacation and less like an errand.
Re-envision the way you go with the Express S2.
Vehicle Highlights
ELiTE Lithium Powertrain
Excite your drive with the proven performance of the ELiTE powertrain powered by Samsung SDI Lithium Technology. Upgrade to a 4.2 twin pack or a 6.2 triple pack for extended range.

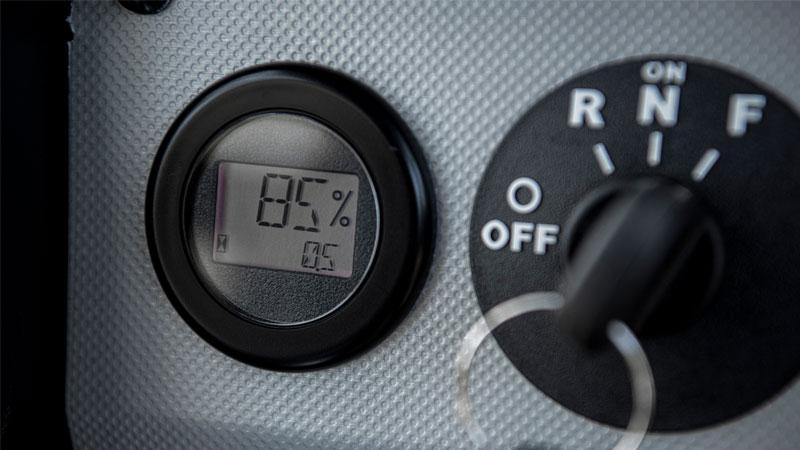

Multi-function Gauge
Know more about your vehicle with an electric gauge that provides easy to read golf cart speed, battery life, and hour meter.

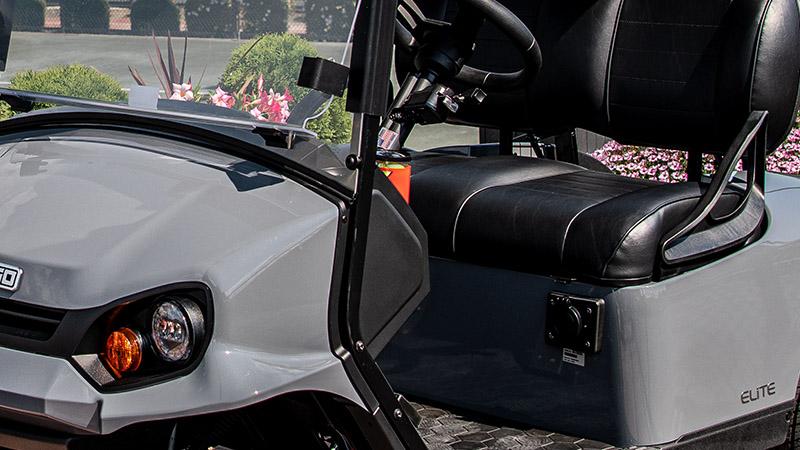

Spacious Leg Room
Make every ride more comfortable with additional leg room for you and your passengers.

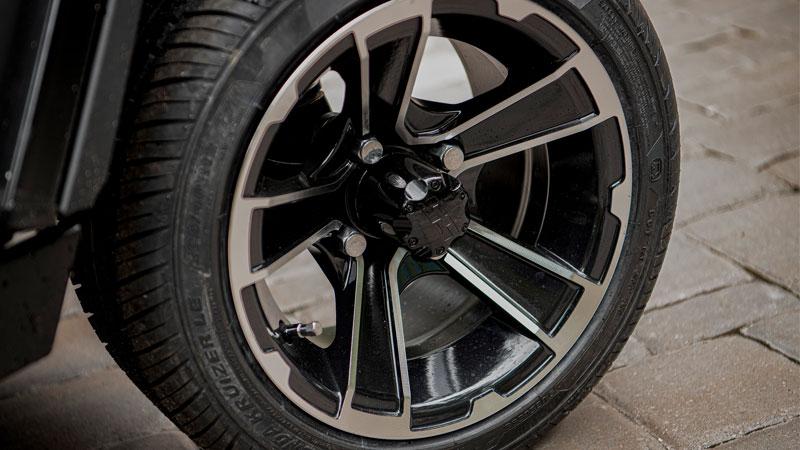

New Tire and Wheel Options
Make the neighbors envious with premium tires and wheels that add another level of customization.
Specs
DIMENSIONS
| ELITE LITHIUM | |
|---|---|
| OVERALL LENGTH | 97 in (246 cm) |
| OVERALL WIDTH | 49.5 in (124 cm) |
| OVERALL HEIGHT (W/O ROOF) | 51 in (129 cm) |
| OVERALL HEIGHT (W/ ROOF) | 74.4 in (189 cm) |
| WHEEL BASE | 67.0 in (170 cm) |
| FRONT WHEEL TRACK | 38.5 in (98 cm) |
| REAR WHEEL TRACK | 38.5 in (98 cm) |
| GROUND CLEARANCE @ DIFFERENTIAL | 5.25 in (13.3 cm) |
POWER
| ELITE LITHIUM | |
|---|---|
| POWER SOURCE | 56.7V Li-Ion Battery |
| MOTOR TYPE | 56 Volt AC |
| FUEL SYSTEM | – |
| HORSEPOWER (KW) | 11.7 HP (8.7 kW) |
| ELECTRICAL SYSTEM | 48V primary, 12V auxiliary |
| BATTERIES (QTY/TYPE) | Single, 56.7 Vol Li-Ion Composite Module (Standard Configuration) |
| KEY OR PEDAL START | Pedal Start |
| SPEED CONTROLLER | 235 Amp AC |
| DRIVETRAIN | Motor Shaft Direct Drive |
| TRANSAXLE | Differential with Helical Gears |
| GEAR SELECTION | Dash Mounted FNR/ Key Switch |
| REAR AXLE RATIO | 16.99:1 (Forward) |
PERFORMANCE
| ELITE LITHIUM | |
|---|---|
| SEATING CAPACITY | 2-Passenger |
| DRY WEIGHT | 676 lb (307 kg) (without batteries) |
| CURB WEIGHT | 720 lb (547 kg) |
| VEHICLE LOAD CAPACITY | 500 lb (227 kg) |
| TURNING RADIUS | 11.0 ft (3.4 m) |
| OUTSIDE CLEARANCE CIRCLE | 22 ft (6.7 m) |
| SPEED (LEVEL GROUND) | 19 mph (31 kph) max |
STEERING & SUSPENSION
| ELITE LITHIUM | |
|---|---|
| STEERING | Self-Compensating Rack and Pinion |
| SUSPENSION | Leaf Springs with Hydraulic Shock Absorbers |
| SERVICE BRAKE | Dual Rear Wheel Mechanical Self-Adjusting Drum |
| PARKING BRAKE | Self-Compensating, Single Point Engagement |
| TIRES | 10″ Loadstar on Daytona Wheel (Standard Package), 12-in. Paramount on Rogue Wheel (Crusier Package) |
BODY & CHASSIS
| ELITE LITHIUM | |
|---|---|
| FRAME | Welded steel with DuraShield powder coat |
| BODY & FINISH | Injection Molded TPO |

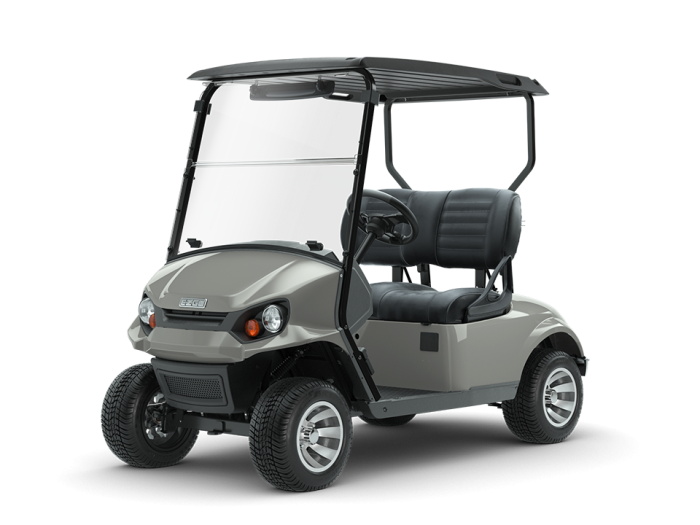

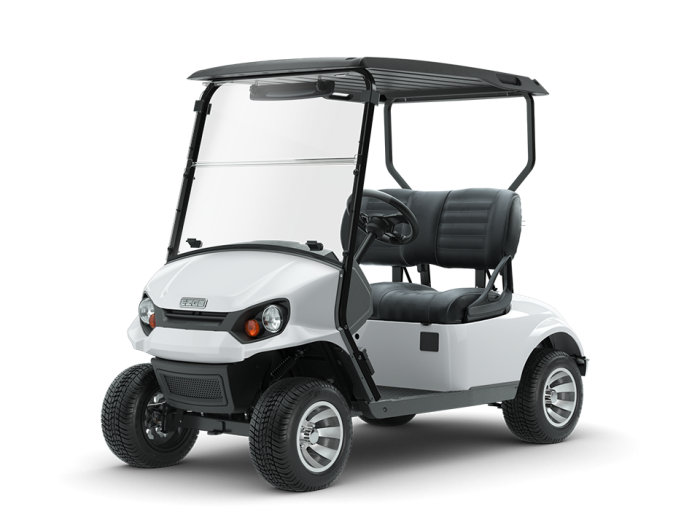

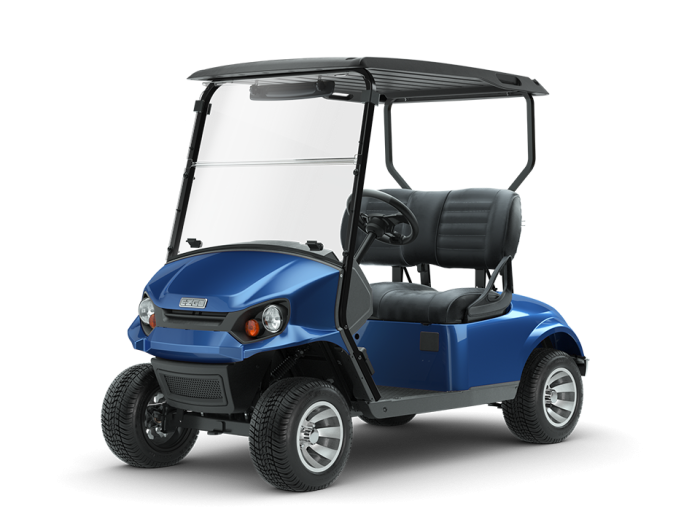

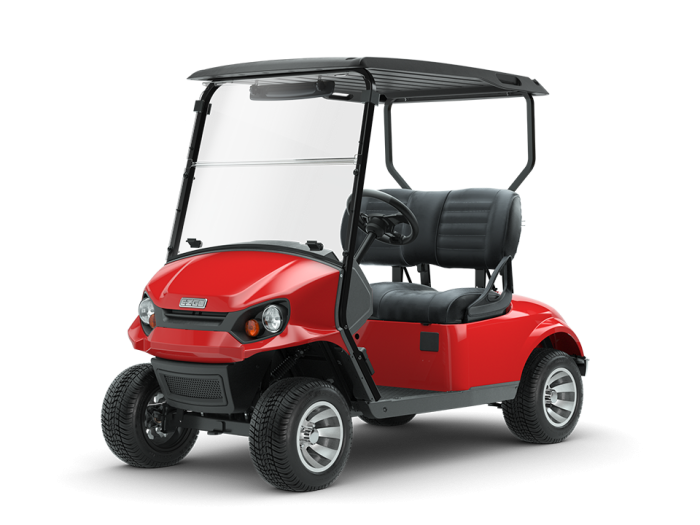

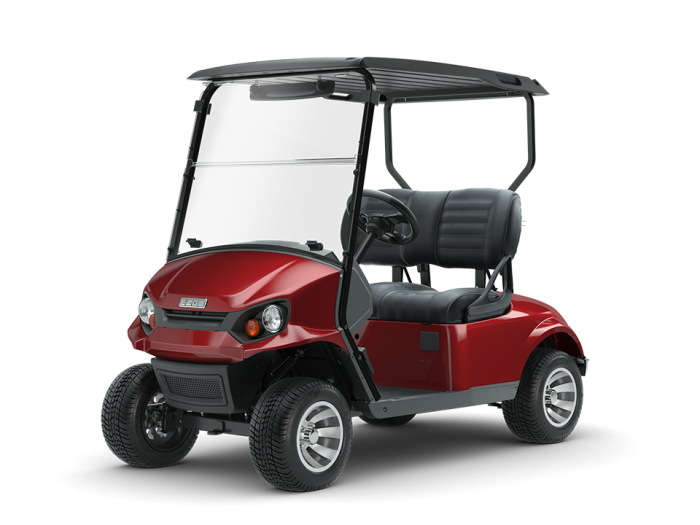

| AVAILABLE BODY COLORS | Black, Bright White, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Grey, Platinum, Slate |
| AVAILABLE BODY COLORS | Black, Grey on Black Stitched, White on Beige Stitched |
| AVAILABLE PREMIUM SEAT COLORS | Black, Grey and Mushroom |
