E-Z-GO ALL-NEW VALOR

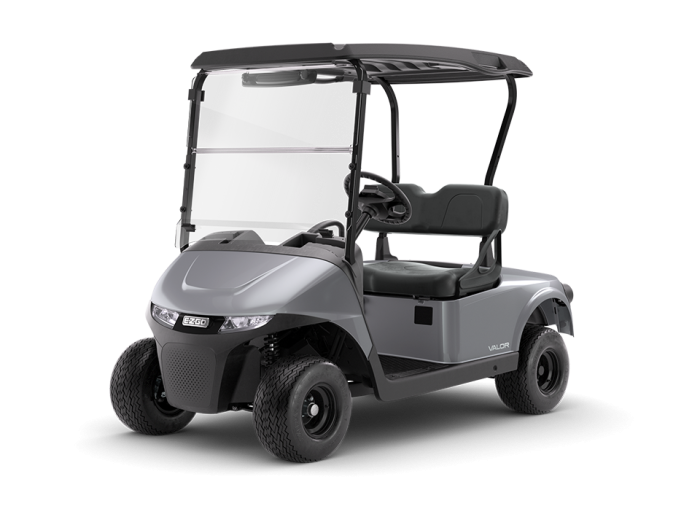

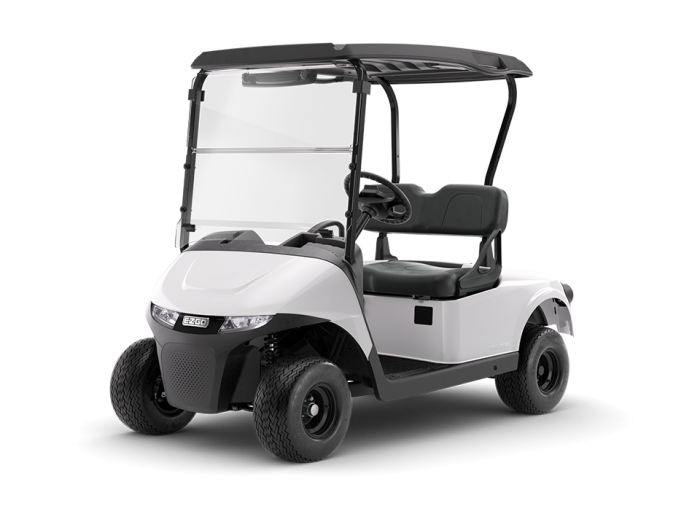

All-New Valor
The Valor is the perfect E‑Z‑GO for any way you like to go. With endless opportunities to customize, the Valor offers a tailored experience for your lifestyle. Powered by a 48-Volt AC powertrain or an EX1 closed-loop EFI gas engine, the Valor offers the best ride for wherever the road takes you.
Key Features
Premium Performance

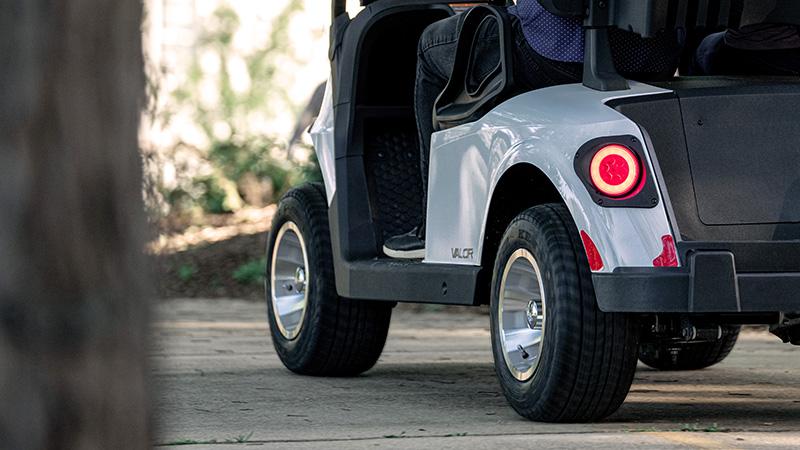

Light your path with the energy-efficient LED headlights and taillights, now standard on the Valor.
Independent Front Suspension
With an independent front suspension, the Valor provides a smooth ride to get you to your next destination.
Modernized Front End & Dash
The newly designed Valor gives you a more streamlined experience for greater ease and unparalleled efficiency wherever you go.

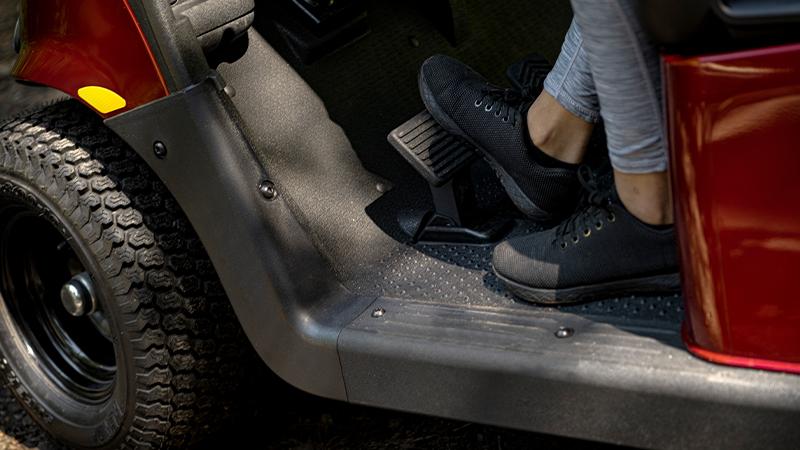

IntelliBrake™ Technology with Automatic Parking Brake
Experience superior efficiency with an automatic parking brake with IntelliBrake technology – only offered with electric powertrains.
Specs
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| OVERALL LENGTH | 94.5 in (240 cm) | |
| OVERALL WIDTH | 47 in (119 cm) | 47.0 in (119 cm) |
| OVERALL HEIGHT (W/O ROOF) | 48.5 in (121 cm) | 47.5 in (126 cm) |
| OVERALL HEIGHT (W/ ROOF) | 71 in (178 cm) | 70 in (178 cm) |
| WHEEL BASE | 65.7 in (167 cm) | 66.0 in (168 cm) |
| FRONT WHEEL TRACK | 35.5 in (90 cm) | |
| REAR WHEEL TRACK | 38 in (97 cm) | |
| GROUND CLEARANCE @ DIFFERENTIAL | 4 in (10 cm) | 4.5 in (11 cm) |
| EX1 GAS | ELITE LITHIUM | |
|---|---|---|
| POWER SOURCE | 4-Cycle, 9.15 cu in (150 cc) | 48 Volt DC |
| VALVE TRAIN | Single Cylinder OHV | – |
| MOTOR TYPE | Single Cylinder OHV, 4 Cycle, 9.15 cu in (150 cc) | 48 Volt AC |
| FUEL SYSTEM | Closed-Loop Electronic Fuel Injection | N/A |
| HORSEPOWER (KW) | 11.5 hp (8.6 kW) J1995 Standard | 4.4 hp (3.3 Kw) Continuous |
| ELECTRICAL SYSTEM | Brushless DC Internal Starter Generator | 48 Volt |
| BATTERIES (QTY/TYPE) | One, 12 Volt Maintenance Free | Four, 12 Volt Deep Cycle |
| KEY OR PEDAL START | Pedal | |
| AIR CLEANER | Industrial-Rated Dry Filter | N/A |
| LUBRICATION | Pressurized Oil System | N/A |
| OIL FILTER | Removaable Oil Screen | N/A |
| COOLING SYSTEM | Air Cooled | N/A |
| FUEL CAPACITY | 5.82 Gallon (22.03 L) Tank | N/A |
| BATTERY CHARGER | N/A | 48 VDC QE, 120 VAC, UL & CSA |
| SPEED CONTROLLER | N/A | 250 Amp Solid State Controller |
| DRIVETRAIN | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| TRANSAXLE | Differential with Helical Gears | Limited Slip Differential |
| GEAR SELECTION | Forward-Reverse | Forward-Neutral-Reverse |
| REAR AXLE RATIO | 11.47:1 (Forward) 14.35:1 (Reverse) | 16.99:1 |
| EX1 GAS | 48V ELECTRIC | |
|---|---|---|
| SEATING CAPACITY | 2-Passenger or 4-Passenger | |
| DRY WEIGHT | 676 lb (307 kg) | 635 lb (257 kg) |
| CURB WEIGHT | 692 lb (314 kg) | 935 lb (411 kg) |
| VEHICLE LOAD CAPACITY | 800 lb (364 kg) | 800 lb (360 kg) |
| OUTSIDE CLEARANCE CIRCLE | 19 ft (5.8m) | 19 ft (5.8 m) |
| SPEED (LEVEL GROUND) | 19.0 mph ± 0.5 mph (31.0 kph ± 0.8 kph) | 19 mph ± 0.5 mph (31 kph ± 0.8 kph)) |
| EX1 GAS | 48V ELECTRIC | |
|---|---|---|
| STEERING | Double Ended Rack & Pinion | |
| SUSPENSION | Independent A-Arm Coil Over Shock (Front) – Mono-Lead Springs with Hydraulic Shocks (Rear) | |
| SERVICE BRAKE | Rear Wheel Mechanical Self-Adjusting Drum | Induction Motor |
| PARKING BRAKE | Self-Compensating, Single Point Engagement | Automatic Electro-Magnetic |
| TIRES | 20 x 8 -10 Turf Tire on Black Wheel | 20 x 8 -10 Turf Tire on Black Wheel |
| ELITE LITHIUM | GAS | |
|---|---|---|
| FRAME | WWelded Steel with Powder-Coat Protection | |
| BODY & FINISH | Injection Molded TPO | |
| AVAILABLE BODY COLORS | Platinum/White | Inferno Red/Black |
| AVAILABLE BODY COLORS | Black, Stone Beige | |
