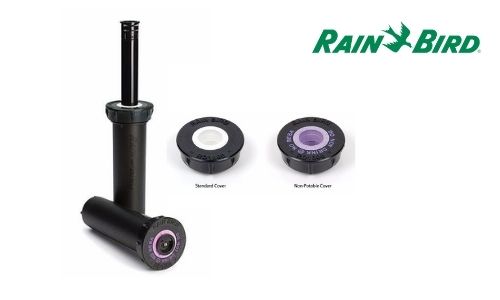

RAIN BIRD 1800 Series Spray Heads
4",6",12"(10.2 cm; 30.5 cm)
- Patented, Triple-Blade Wiper Seal precisely balances flushing, flow-by and debris protection to optimize performance and durability at pop-up and retraction. Precision-controlled flushing at pop-up and retraction clears debris, ensuring positive stem retraction in all soil types
- Unique debris pockets hold grit in place, removing it from circulation and preventing long-term damage. Parts resistant to corrosion in treated recycled water containing chlorine
- RD1800™ SAM PRS Series: Incorporates all RD1800 Series SAM and
PRS features. Meets the needs of all spray areas, regardless of changing
elevation or water pressures - RD1800™ Flow-Shield™ Series: Provides low flow vertical water jet visible from +200’ line of sight when a nozzle has been removed
SPECIFICATIONS
- SAM capability: Holds up to 4.2 m of head; 0.3 bar
- Flow-by: SAM Models: 0 at 1.0 bar or greater; 10 l/h otherwise
All Other Models: 0 at 0.7 bar or greater; 10 l/h otherwise - SAM-PRS models regulate nozzle pressure to an average 2.1 or 3.1 bar
with inlet pressures of up to 6.9 bar - Side inlets featured on non Seal-A-Matic™ (SAM) models only
- Five-year trade warranty
OPERATING RANGE
- Spacing: 2.5 to 24 feet (0.8 to 7.3m)
- Pressure: 15 to 100 psi (1.0 to 6.9 bar)
DIMENSIONS
- ½” (15/21) NPT female threaded inlet
