RAIN BIRD SMART-Y
Accurate - Reliable - Smart

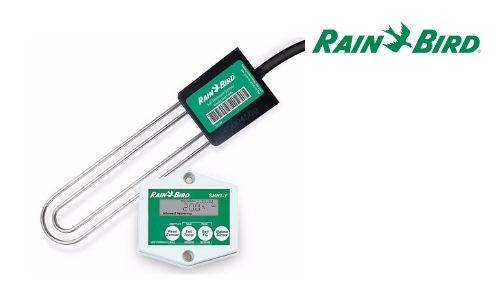

It’s time for a little feedback from the roots. With the new SMRT-Y Soil Moisture Sensor Kit from Rain Bird, an irrigation controller is directly linked to the absolute moisture requirements of a site’s vegetation.
When the sensor detects dry conditions, the next scheduled watering cycle is allowed. If a site’s soil moisture level is above the threshold, the irrigation cycle is suspended. There are just two basic components: an in-ground sensor and a user interface at the controller.
FEATURES
- Turns any controller into a water saving smart controller
- Healthier landscapes less prone to nutrient depletion, fungus, and shallow root growth
- Typical water savings exceed 40%
- TDT digital sensor enables highly accurate readings that are independent of soil temperature and electrical conductivity (EC)
- Displays soil moisture content, soil temperature and EC
- Corrosion-resistant in-ground sensor made of high-grade 304 stainless steel
SPECS
Operating Specifications
- 25 Volts AC at 12W
- Operating temperature: -4°F to 158°F (-20°C to 70°C)
- Survival temperature: -40°F to 185°F (-40°C to 85°C)
Certifications
- cULus [US and Canada], FCC Part 15b [US], CE [European Union], Smart Approved WaterMark [Australia]
SMRT-Y Kit Includes
- Controller Interface
- In-Ground Soil Moisture Sensor
- Anodized, rust-proof screws, 1.5″ (two per package)
- Wire nuts – 5 blue, 2 gray, 1 yellow
- Multilingual instruction manual, “Quick Start” Guide, and Soil Moisture sticker
Controller Interface Dimensions
- W: 3.0″ (76mm); H: 3.0″ (76mm); D: 0.75″ (19mm)
In-Ground Soil Moisture Sensor Dimensions
- W: 2.0″ (50mm); L: 8.0″ (200 mm); D: 0.5″ (12mm)
- 18 AWG wire leads @ 42 in. (106.7 cm) length
MODELS
- SMRT-Y: Soil Moisture Sensor Kit
- SMRT-YI: International Soil Moisture Sensor Kit
