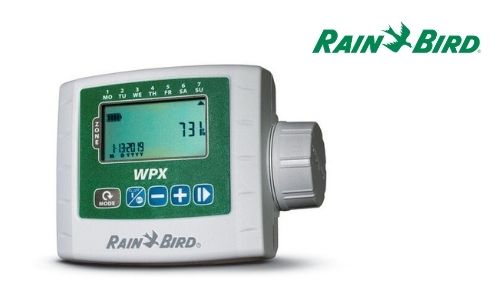

RAIN BIRD WPX Series
WPX — An Improved Battery-Operated Controller
The Rain Bird® WPX Controller has been enhanced with the harshest conditions in mind, so you can install unmatched reliability in some of the most difficult locations. An intuitive user interface simplifies programming and allows contractors, property managers, and homeowners to build programs with ease. A strengthened lens seal shields your controller from all the elements with IP-68-rated water protection. Plus, an industry-leading battery life (2+ years) and a 3-year warranty ensure you’re always covered.
FEATURES
SPECS
MODELS
FEATURES
Controller Features
- Waterproof case ensures long life, even when installed in a valve box
- Common programming features are easily accessed on one screen, making programming quick and easy
- Operates for approximately one full year using one 9-volt alkaline battery, or two years with two 9-volt alkaline batteries
- Large LCD display with easy to navigate user interface
- Sensor input with bypass override
- Master valve/pump-start circuit (multi-zone units only)
- Non-volatile (100-year) program memory
- IP68 certified for protection against dust and water intrusion
- Plastic controller case has outstanding resistance to weather, yellowing and aging
Scheduling Features
- Dedicated manual watering button for easy operation
- Automatic zone-stacking ensures that only one valve irrigates at the same time. WPX will automatically irrigate the lower number zone first if zones are scheduled to water at the same time
- Contractor Rapid Programming™ automatically copies the start times and watering days from zone 1 to all remaining zones at initial setup
- Run times, start times, and watering days are customizable by zone
- 6 start times per zone
- 4 watering day options per zone: Custom days of the week, Cyclic, and ODD or EVEN calendar days
- Delay watering (1 to 9 days)
SPECS
Certifications
- cULus, CE, IP68. For current
- certifications visit: www.rainbird.com/WPX
Controller Dimensions
- Width: 13.59 cm•
- Height: 10.26 cm
- Depth: 6.15 cm
- Weight: 907 g
LCD Screen Size
- Width: 5.72 cm
- Height: 3.18 cm
Optional Wall Mount Dimensions
Width: 10.76 cm
- Height: 17.60 cm
- Depth: 4.99 cm
- Weight: 107 g
MODELS
- WPX1: 1-Zone Controller
- WPX2: 2-Zone Controller
- WPX4: 4-Zone Controller
- WPX6: 6-Zone Controller
- WPX1SOL: 1-Zone + 9V Solenoid
- WPX1DVKIT: 1-Zone + 1” DV Valve
- 9VMOUNT: Wall-mount kit
