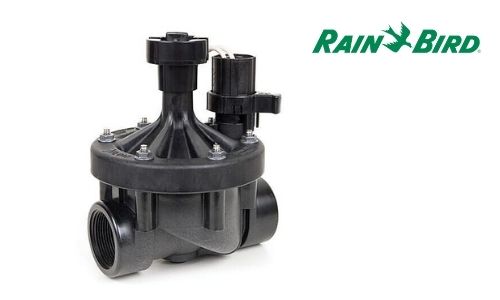

RAIN BIRD PEB/PESB SERIES
Best-in-class professional series plastic irrigation valves
The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.
The PESB series incorporates patented scrubber technology for reliable performance in dirty water irrigation applications.
FEATURES
- Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
- Globe configuration
- Normally closed, forward flow design
- Slow closing to prevent water hammer and subsequent system
damage - Low flow capability for a wide range of applications
- One-piece solenoid design with captured plunger and spring for easy
servicing. Prevents loss of parts during field service - Flow control handle adjusts water flows as needed
- Manual internal bleed manually operates the valve without allowing
water into the valve box; allows pressure regulator to be adjusted
without turning the valve on at the controller first - Manual external bleed permits flushing debris from the system.
Recommended for system start up and after repairs - Stainless steel studs molded into the body. Bonnet can be attached
and removed more easily and more often without damaging threads - Nylon scrubber scrapes a stainless steel screen to clean and break
down grit and plant material. Prevents debris build-up and clogging
(PESB Series only) - Five-year trade warranty
SPECIFICATONS
- Pressure: 1.4 to 13.8 bar
- Flow without PRS-D option: 0.06 to 45 m3/h; 0.02 to 12.60 l/s
- Flow with PRS-D option: 1.14 to 45 m3/h; 0.32 to 12.60 l/s
- Temperature: Up to 66° C
- 24VAC 50/60Hz (cycles/sec) solenoid power requirement
- Inrush current: 0.41A (9.9VA) at 50/60Hz
- Holding current: 0.14A (3.43VA) at 50/60Hz
- Solenoid coil resistance: 30-39 Ohms, nominal
