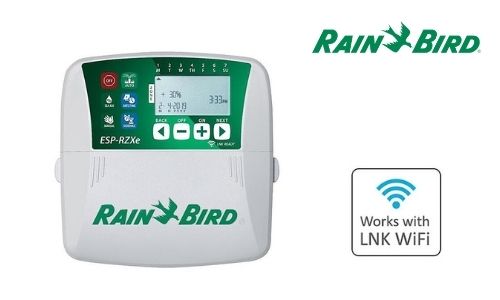

RAIN BIRD ESP-RZXe Series Controllers
Indoor or Outdoor Zone-based Controller with LNK WiFi compatibility
(Available in International Markets Only)
The ESP-RZXe Controller provides zone based set up that is easier to understand by untrained users. Fixed 4, 6 and 8 zone models are available. The ESP-RZXe provides flexible scheduling features that make the controller ideal for a wide variety of applications including residential and light commercial irrigation systems.
Easy to Use
The ESP-RZXe Controller was designed with ease of use in mind. Zone-based scheduling allows every valve to be scheduled independently; no more explaining “programs” to end users, virtually eliminating call-backs. The large LCD display shows all of the programming for each zone at the same time. The simple graphic-based user interface is easy to explain and presents every controller feature at your fingertips.
LNK WiFi Ready
Combined with Rain Bird’s LNK WiFi Module (sold separately), you can receive internet-based weather data that adjusts irrigation schedules on a daily basis for up to 30% water savings.
Controller Features
- Simple user interface is easy to explain and presents every controller feature on a single screen
- Requires only two mounting screws
- Large LCD display with easy to navigate user interface
- Weather Sensor input with software override
- Master valve/pump start circuit
- Non-Volatile (100-year) program memory
- Programmable under battery power
Scheduling Features
- Zone-based scheduling allows for independent schedules assigned to each zone (Run times, Start Times and watering days are customizable by zone)
- Contractor Rapid Programming™ automatically copies the start times and watering days from zone 1 to all remaining zones at initial set up
- 6 independent Start Times per zone
- 4 Watering Days options by zone: custom days of the week, Odd calendar days, EVEN calendar days, Cyclic (every 1 – 14 days)
- Manually water ALL or SINGLE zone on demand
Advanced Features
- Electronic diagnostic circuit breaker
- Contractor Rapid Programming™ and “copy previous Zone” for faster initial set up
- Contractor Default™ save / restore
- Weather Sensor bypass
- Weather Sensor bypass by Zone
- LNK WiFi Ready
Controller Hardware
- Plastic wall-mount case
- 4, 6 or 8 station units
- 2 x AAA batteries for time and date backup (included)
Operating Specifications
- Station timing: 0 to 199 min
- Seasonal Adjust: -90% to +100%
- Independent schedule per zone
- 6 Start Times per zone
- Program Day Cycles include Custom days of the week, Odd, Even, & Cyclical dates
- Manual SINGLE zone
- Manual ALL zones
Electrical Specifications
- International models: 230 VAC ± 10%, 50Hz
- Output: 24 VAC 650mA
- Power back-up: 2 x AAA batteries maintain time and date while nonvolatile memory maintains the programming
Certifications
- CE [European Union], IRAM [Argentina] (indoor only), IPX4 (outdoor only), RCM [Australia and New Zealand] (outdoor only).
Indoor Controller Dimensions
- Width: 6.65 in. (16,9 cm)
- Height: 6.40 in. (16,3 cm)
- Depth: 1.54 in. (3,9 cm)
Outdoor Controller Dimensions
- Width: 7.92 in. (20,1 cm)
- Height: 7.86 in. (20,0 cm)
- Depth: 3.51 in. (9,0 cm)
Available in International Markets Only
- RZXe4i- 230v Indoor, 4 stations
- RZXe6i- 230v Indoor, 6 stations
- RZXe8i- 230v Indoor, 8 stations
- RZXe4- 230v Outdoor, 4 stations
- RZXe6- 230v Outdoor, 6 stations
- RZXe8-230v Outdoor, 8 stations
