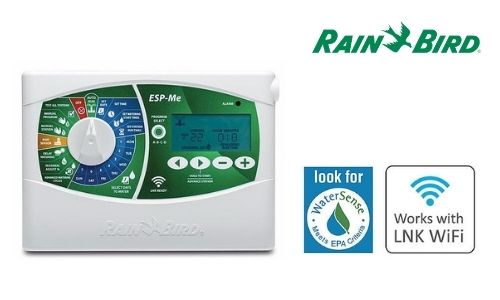

RAIN BIRD ESP-Me Series Controllers
A flexible irrigation controller solution, supporting from 4 - 22 stations and a WiFi upgrade.
With 4- to 22-station scalability, the ESP-Me helps you better serve your customers. Install the same controller on residential and light commercial sites – the more stations you add, the more you save, providing you and your customers with more value for the money.
Best of all, you can upgrade the ESP-Me by simply installing a LNKâ„¢ WiFi Module, without having to replace the entire unit.
Make your controller SMART with EPA WaterSense certification by adding the LNK WiFi module and a WR2 rain sensor.
FEATURES
OPERATING SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
DIMENSIONS
FEATURES
- Upgradeable for WiFi-based remote monitoring and control via iOS and Android mobile devices (with LNK WiFi Module sold separately) Â
- Internet-based weather information can be used to make daily adjustments to the irrigation schedule, saving up to 30% in water (with LNK WiFi Module sold separately) Â
- Large LCD display with easy to navigate user interface Â
- Master valve/pump start circuit Â
- Non-Volatile (100 year) storage memory Â
- Remotely Programmable under 9V battery power (not included) Â
- Program based scheduling allows 4 individual programs with 6 independent start times per program for 24 total start times Â
- Watering schedule options: By days of week, ODD calendar days, EVEN calendar days, or Cyclic (every 1 – 30 days) Advanced Features Â
- Advanced diagnostics and short detection with LED alert Â
- Contractor Defaultâ„¢ Program Save/Restore saved program(s) Â Â
- Rain Sensor bypass by Station Â
- Delay Watering up to 14 days (applies only to stations not set to ignore Rain Sensor) Â
- Manual Watering option by program or station Â
- Seasonal Adjust applied to all programs or individual program Â
- Adjustable delay between valves (default set to 0) Â
- Master Valve on/off by station
OPERATING SPECIFICATIONS
- Station timing:Â 1 minute to 6 hours
- Seasonal Adjust:Â 5% to 200%
- Max operating temperature: 149°F (65°C)
ELECTRICAL SPECIFICATIONS
- Input required: 120V∿, 60Hz, 0.3A  (International models: 230V∿, 50Hz, 0.2A)
- Output: 25.5V∿, 60Hz, 1A (International models: 25.5V∿, 50Hz, 1A)
- Master Valve/Pump Start Relay
- Operating Voltage:Â 24VAC 50/60Hz
- Max Coil Inrush:Â 11VA
- Max Coil Holding:Â 5VA
- Idle/Off power draw 0.06 amps at 120VAC
- Power back-up not required. Nonvolatile memory permanently saves the current programming and a 10-year life lithium battery maintains the controllers time and date during power outages
DIMENSIONS
- Width:Â 10.7 in. (27.2 cm)
- Height:Â 7.7 in. (19.5 cm)
- Depth:Â 4.4 in. (11.2 cm)
