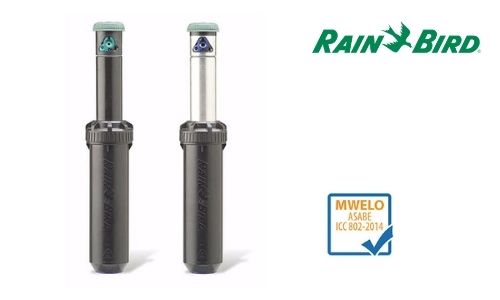

RAIN BIRD 8005 Series
Protect Your Turf with High Performance, Vandal and Abuse Resistant Rotors from 11.9 to 24.7 m
- Vandal resistance, brass reinforced turret for increased sideimpact durability
- Memory Arc® returns the rotor to its original arc setting
- Non-strippable drive mechanism prevents damage from vandals
- Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle. Full and part circle operation in one unit
- Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
- SAM Seal-A-Matic check valve
- 3-port, color-coded Rain Curtain nozzles for optimal long-range, midrange, and close-in watering
- 5 year warranty
OPTIONS
- Stainless steel (SS) riser helps deter vandalism on public turf areas
- Purple cover (NP) for non-potable systems
- Optional Sod Cup

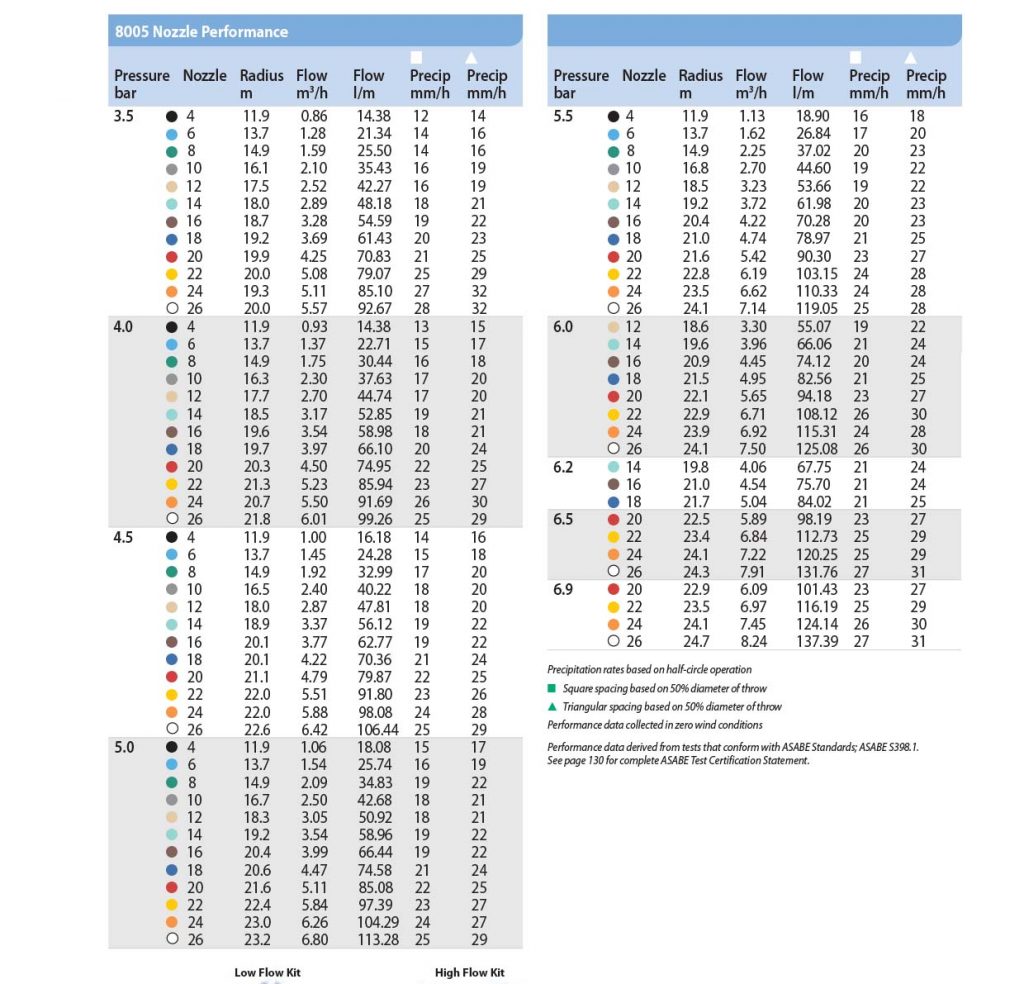

OPERATING RANGE
- Radius: 11.9 to 24.7 m
- Precipitation rate: 12 to 31 mm/h
- Pressure: 3.5 to 6.9 bar
- Flow: 0.86 to 8.24 m3/h; 14.4 to 137.4 l/m
- 1″ NPT or BSP female threaded inlet
- SAM Seal-A-Matic™ check valve holds up to 3.1 m of elevation change
- Nozzle outlet trajectory is 25º
- Rain Curtain™ Nozzles: Included with rotor, other sizes available
upon request; 10-grey, 12-beige, 14-light green, 16-dark brown,
18-dark blue
MODELS
- 8005: 8005 Part/Full Circle, Less Nozzle
- 8005NP: 8005 Part/Full Circle, Less Nozzle W/NP Cover
- 8005SS: 8005 Part/Full Circle, Stainless Steel, Less Nozzle
- 8005NPSS: 8005 Part/Full Circle, Stainless Steel, Less Nozzle
w/ NP Cover - I8005: 8000 Series 1″ BSP Part/Full Circle
- I8005NP: 8000 Series 1″ BSP Part/Full Circle Non-Potable
- I8005SS: 8000 Series 1″ BSP Stainless Stee
- I8005NPSS: 8000 Series 1″ BSP Non-Potable Stainless Stee
