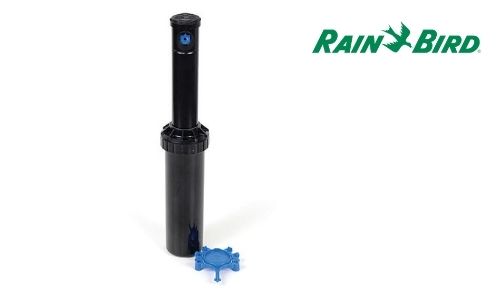

RAIN BIRD 3500 Series
Compact Residential Rotor. Big on Value and Convenience
- Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
- Oversized wiper seal prevents leaks and protects internals from debris
- Arc adjustment through the top of the rotor requiring only a flat-blade screwdriver • 3 year trade warranty

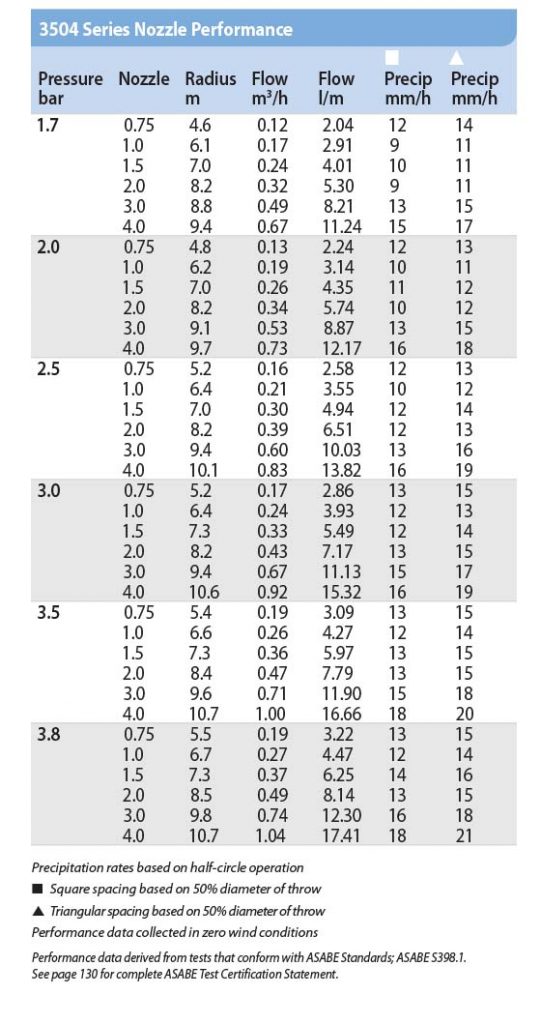

OPERATING SPECIFICATIONS
- Precipitation rate: 9 to 21 mm/h
- Radius: 4.6 to 10.7 m
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 1.7 to 3.8 bar
- Flow rate: 2.0 to 17.4 l/m
- 1⁄2″ NPT female bottom threaded inlet
- Reversing full- and part-circle adjustment 40° – 360°
- Nozzle trajectory of 25°
MODELS
Select models shown. Review your regional price list for complete
availability
- 3504-PC: 4″ part/reverse full circle
- 3504-PC-SAM: 4″ part/reverse full circle with SAM
- 3504-PC-SAM-NP: 4″ part/reverse full circle with SAM and NP cover
