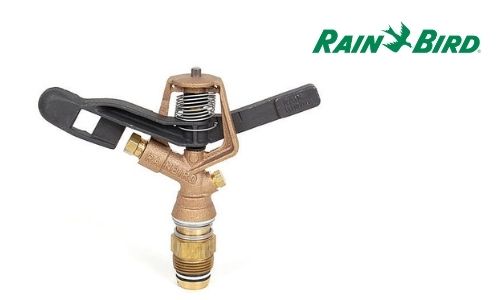

RAIN BIRD 70CH/70CHM
1” 25 mm Full Circle, Brass Impact Sprinkler
- Heavy duty brass construction
- 70CH Female NPT Bearing
- 70CHM has Male bearing Integral Straightening Vanes
FEATURES
- Stainless steel springs and fulcrum pin
- Chemically resistant washers
- Dual nozzle ports
SPECIFICATION
- Bearing: 1″ (25mm) Female NPT, Brass (70CH)
- Bearing: 1″ (25mm) Male NPT, Brass (70CHM)
- Trajectory Angle: 21°
- Operating Range: 40-80 psi (2.8-5.5 bar)
- Flow Rate: 8.8-45.8 gpm (2.00-10.40 m3/h)
- Radius: 57-82 ft. (17.39-25.01 meters)
- Nozzle Port: 3/8” Female NPT
- Spreader Nozzle Port: 3/8” Female NPT
BENEFITS
- Low angle ideal for windy conditions
- Integral straightening vanes increase distance of throw
- Wide range of flow rates
- Corrosion and grit resistant
- Built to last
- Five-year Customer Satisfaction Policy
