RAIN BIRD-BPES Brass Valves
BPES Brass Valves

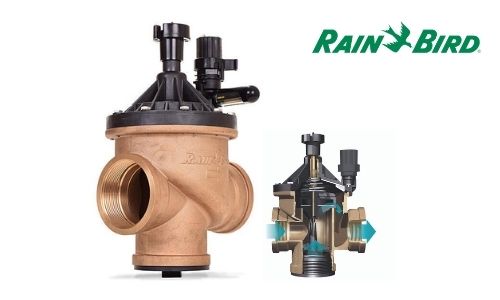

Rain Bird’s 3″ BPES brass irrigation valves are built tough to offer long life and efficient, trouble-free performance under harsh conditions.
Featuring a unique combination construction of brass body and glass-filled nylon bonnet, these valves are designed to withstand extreme pressure surges, effluent water and clogging debris.
For additional protection, the BPES is equipped with a patented scrubber mechanism to actively fight dirt and particles.
FEATURES
- Unique hybrid construction featuring durable red brass body andglass-filled nylon bonnet for long life at a value price
- Normally closed, forward flow design
- Slow closing to prevent water hammer and subsequent system damage
- Robust solenoid provides dependable performance even duringconstant operation
- Flow control handle adjusts water flows as needed and incorporates a brass thread insert for longer life
- Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning
the valve on at the controller - Manual external bleed permits flushing debris from the system. Recommended for system start up and repairs
- Highly efficient operation with extremely low pressure loss
- Patented nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging
- Three-year trade warranty
OPTIONS
- Accommodates field-installed PRS-D pressure regulating module toensure optimum sprinkler performance
- Purple flow control handle for non-potable water applications (BPE-NP-HAN)
- Latching solenoid for use with Rain Bird battery-operated controllers up to 10.4 bar
SPESIFICATION
- Pressure: 1.4 to 13.8 bar
- Flow with/without PRS-D option: 13.6 to 68.1 m3/h; 3.78 to 18.90 l/s)
- Temperature: up to 60° C
- Power: 24 VAC 50/60 Hz (cycles per second) solenoid
- Inrush current: 0.41 A (9.8 VA) at 50/60Hz
- Holding current: 0.28 A (6.7 VA) at 50/60Hz
- Coil resistance: 28 Ohms, nominal
