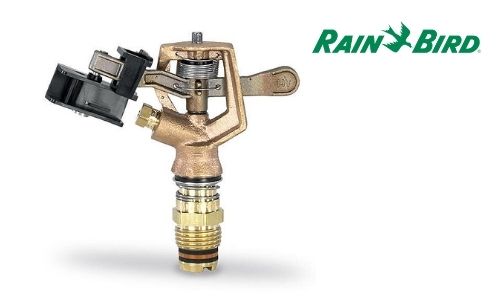

RAIN BIRD 14H
1/2" (13mm) Full Circle, Brass, Wedge Drive Impact Sprinkler
Used in undertree, overtree, overvine and row crop solid set and permanent systems. Excellent frost-protection/ irrigation sprinkler. Patented self-flushing nylon “V” wedge makes it a strong-driving sprinkler, even with the smallest nozzles.
FEATURES
SPECS
BENEFITS
PERFORMANCE
FEATURES
- 1/2″ (13mm) male NPT brass inlet bearing
- Full circle operation
- Patented, self-flushing wedge drive to operate with smaller nozzles and lower operating pressure
- Durable brass die-cast arm
- Stainless steel springs and fulcrum pin
- Chemically resistant washers
- Back by five-year Customer Satisfaction Policy
- For use with Rain Bird SBN-1 Straight Bore Nozzle, sold separately
SPECS
- Bearing: 1/2″ Male NPT, Brass
- Trajectory Angle: 23 degrees
- Operating Range: 20-60 psi (1.4-4.1Â bar)
- Flow Rate: 0.56-2.68 gpm (0.14-0.61 m3/h)
- Radius: 29-38 ft. (9.0-11.70 m)
- Nozzle Port: 1/8″ Female NPT
BENEFITS
• Wedge drive runs on smaller nozzles and
lower pressures
• Self-flushing design reduces
wear from grit
• Corrosion and grit resistant
• Built to last

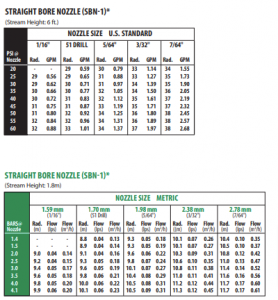

PERFORMANCE
TONTON VIDEO
