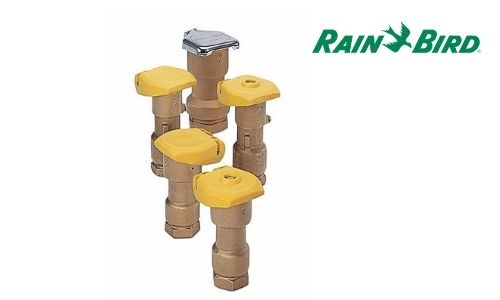

RAIN BIRD QUICK-COUPLING VALVES
Convenient water access in potable and non-potable systems
- Optional locking cover on models 33-DLRC, 44-LRC, 5-LRC, 33-DNP, 44-NP, and 5-NP (use 2049 key to unlock). Metal cover on model 7 only
- One-piece body design (models 3-RC, 5-RC and 7)
Two-piece body design for easy servicing (models 33-DRC, 44-LRC, 44-RC, 33-DNP, and 44-NP) - Strong corrosion-resistant stainless steel spring prevents leakage
- Thermoplastic cover for durability
- 33-DNP, 44-NP, and 5-NP covers marked with “Do Not Drink!” warnings in English and Spanish
- Three-year trade warranty
SPECIFICATIONS
- Pressure: 5 to 125 psi (0.35 to 8.63 bar)
- Flow: 10 to 125 gpm (2.27 to 28.38 m3⁄h; 37.8 to 473 l/m)
- 33-DNP, 44-NP, and 5-NP flow: 10 to 70 gpm (2.27 to 15.89 m3⁄h; 37.8 to 265 l/m)
DIMENSIONS
- 3-RC: Height 4¼” (10.8 cm)
- 33-DRC: Height 4 3⁄8″ (11.1 cm)
- 33-DLRC: Height 4 5⁄8″ (11.7 cm)
- 44-RC: Height 6″ (15.2 cm)
- 44-LRC: Height 6″ (15.2 cm)
- 5-RC: Height 5½” (14.0 cm)
- 5-LRC: Height 5½” (14.0 cm)
- 7: Height 5¾” (14.6 cm)
- 33-DNP: Height 4 3/8″ (11.1 cm)
- 44-NP: Height 6″ (15/2 cm)
- 44-NP ACME: Height 6″ (15.2 cm)
- 5-NP: Height 5½” (14.0 cm)
MODELS
- 3-RC: 3⁄4”(20/27) Rubber Cover, 1-PieceBody
- 33-DRC: 3⁄4”(20/ 27) Double Track Key Lug,Rubber Cover, 2-Piece Body
- 33-DLRC: 3⁄4”(20/27) Double Track Key Lug, Locking Rubber Cover, 2-Piece Body
- 44-RC: 1”(26/34) Rubber Cover, 2-Piece Body
- 44-LRC: 1”(26/34) Locking Rubber Cover, 2-Piece Body
- 5-RC: 1”(26/34) Rubber Cover, 1-Piece Body
- 5-LRC: 1”(26/34) Locking Rubber Cover,1-Piece Body
- 7: 11⁄2”(40/49) Metal Cover, 1-Piece Body
- 5-RC-BSP: 1”(26/34) Rubber Cover, 1-Piece Body, BSP threaded
- 5-LRC-BSP: 1”(26/34) Locking RubberCover, 1-Piece Body, BSP threaded
- 33-DNP: 3⁄4”(20/27) Non-potable, Purple Locking Rubber Cover, 2-Piece Body
- 44-NP: 1”(26/34) Non-potable, Purple Locking Rubber Cover, 2-Piece Body
- 44-NP ACME: 1”(26/34) Non-potable,Purple Locking Rubber Cover, 2-PieceBody, ACME thread
- 5-NP: 1”(26/34) Non-potable, Purple Locking Rubber Cover, 1-Piece Body
