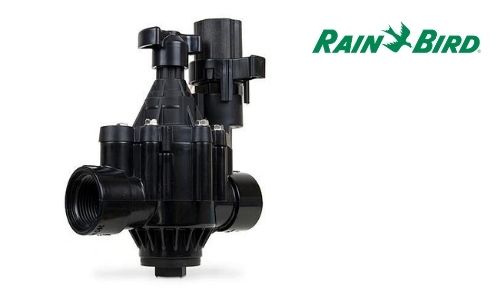

RAIN BIRD PGA Series
Plastic Globe and Angle Valves. The Toughest, Most Reliable Valves In their Class
Built for high-end residential and light commercial applications, Rain Bird® PGA series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure. For maximum peace of mind, PGA series valves also offer a best-in-class, three-year trade warranty. Because you care about your reputation—and so do we.
FEATURES
OPTIONS
SPECIFICATIONS
DIMENSIONS
MODEL
FEATURES
- Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
- Robust construction and electrical design for quiet performance you can count on
- Filtered pilot flow to resist debris and clogging
- Slow closing to prevent water hammer and subsequent system damage
- Normally closed, forward flow design Accepts latching solenoid for usewith Rain Bird battery-operated controllers
- Multi-drive screws (Phillips, flathead, hexagonal) for easy maintenance*
- Manual internal bleed operates the valve without allowing water into
- the valve box. This allows the pressure regulator to be adjusted withoutturning the valve on at the controller
- One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
- Three-year trade warranty
- Accommodates optional, field-installed PRS-D pressure regulating dialto ensure optimum sprinkler performance
- Accepts latching solenoid for use with Rain Bird battery-operated controllers
OPTIONS
- Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance
- Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 10.35 bar
- Compatible with ESP-LXD decoders
SPECIFICATIONS
- Pressure: 1.04 to 10.4 bar
- Flow without PRS-D option: 0.45 to 34.05 m3/h; 7.8 to 568 l/m
- Flow with PRS-D option: 1.14 to 34.05 m3/h; 19.2 to 568 l/m
- Water temperature: Up to 43° C – refer to chart
- Ambient temperature: Up to 52° C
- 24VAC 50/60Hz (cycles/sec) solenoid power requirement
- Inrush current: 0.41A (9.9VA) at 50/60Hz
- Holding current: 0.14A (3.43VA) at 50/60Hz
- Solenoid coil resistance: 30-39 Ohms, nominal
DIMENSIONS
Model Height Length Width
• 100-PGA 18.4 cm 14.0 cm 8.3 cm
• 150-PGA 20.3 cm 17.2 cm 8.9 cm
• 200-PGA 25.4 cm 19.7 cm 12.7 cm
MODEL
- 100-PGA: 1″
- 100-PGA-9V: 1″
- 150-PGA: 11⁄2″
- 150-PGA-9V: 11⁄2″
- 200-PGA: 2″
- 200-PGA-9V: 2″
