IMPLEMENT PEMOTONG RUMPUT

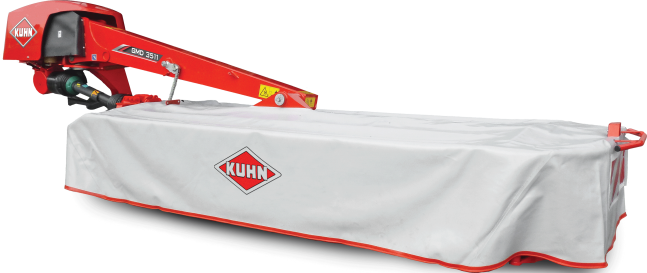

KUHN GMD 11 SERIES adalah implementasi yang di tarik oleh traktor yang berfungsi untuk memotong rumput pada kebun untuk keperluan pakan ternak dan lain sebagainya. di design dengan poros mendatar untuk memudahkan dalam  pengangkutan sekalipun di jalanan yang sempit sekalipun.

MODELKUHN GMD 3511KUHN GMD 4011KUHN GMD 4411
Working width 11'6"(3.5m) 13"(4.0m) 14'4"(4.4m)
Transport width 5'9"(1.8m) 6'7"(2.0m) 6'7"(2.0m)
Number of discs 8 9 10
Disc type Optidisc Elite Optidisc Elite Optidisc Elite
Blade retention system Fast-Fit Fast-Fit Fast-Fit
Removable Protectadrive® disc bearing stations Standard Standard Standard
Cutterbar transport lock with remote control from tractor Standard Standard Standard
Hydraulic lift mechanism Standard Standard Standard
Cutterbar suspension Lift-Control Hydropneumatic suspension Lift-Control Hydropneumatic suspension Lift-Control Hydropneumatic suspension
Safety guards Standard Standard Standard
Cutting height 1.4" - 2.6" (35-65mm) 1.4" - 2.6" (35-65mm) 1.4" - 2.6" (35-65mm)
Suspension travel 18.5"(47cm) 18.5"(47cm) 18.5"(47cm)
Safety breakaway system Non-stop hydraulic Non-stop hydraulic Non-stop hydraulic Secondary PTO shaft Friction slip clutch standard Friction slip clutch standard Friction slip clutch standard
Average swath width 9'2"(2.8) 10'10(3.3m) 12'2"(3.7m)
Hitch Cat. 2, 3-point mounted Cat. 3, 3-point mounted Cat. 3, 3-point mounted
Primary PTO 1 3/8"-21-spline yoke 1 3/8"-21-spline yoke 1 3/8"-21-spline yoke
Safety breakaway system Non-stop hydraulic Non-stop hydraulic Non-stop hydraulic Secondary PTO shaft Friction slip clutch standard Friction slip clutch standard Friction slip clutch standard
PTO Speed 1000 rpm 1000 rpm 1000 rpm
Friction slip clutch Standard with friction slip clutch Standard with friction slip clutch Standard with friction slip clutch
Minimum PTO power requirement 93 Hp (70 kw) 110 Hp (82kw) 120 Hp (90kw)
