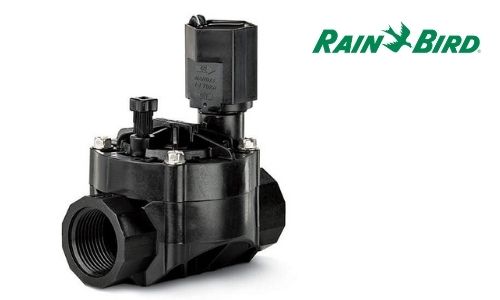

RAIN BIRD HV SERIES
Outstanding performance. Unmatched durability.
Diaphragm Valve – The Industry Leader for Over 25 Years
FEATURES
SPECIFICATIONS
FEATURES
- Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
- Buna-N, balanced pressure diaphragm with self-cleaning 200 micron pilot water filter and captive spring
- Energy-efficient, low-power encapsulated solenoid with captured plunger and 200 micron solenoid filter
- Unique, easy-to-turn pressure assisted flow control mechanism (DVF models only)
- External bleed to manually flush system of dirt and debris during
installation and system start-up - Internal bleed for spray-free manual operation
- Accepts Rain Bird TBOS latching solenoid for use with most batteryoperated controllers
- Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
- Not recommended for use with two-wire control systems

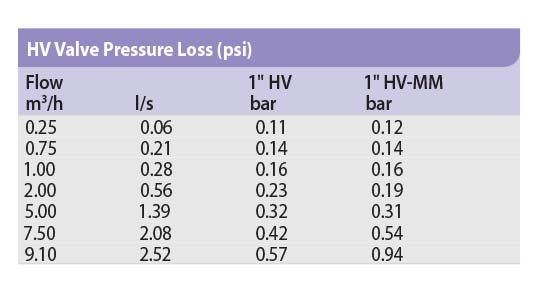

SPECIFICATIONS
- Pressure: 1,0 to 10,3 bar
- Flow: 0,05 to 6,82 m3/h; 0,01 to 1,89 l/s; for flows below 0,68 m3/h; 0,19 l/s or any Landscape Drip application, use a 200 mesh filter installed
upstream - Operating Temperatures: Water temperature up to 43° C; ambient temperature up to 52° C
- 24 VAC 50/60 Hz (cycles/sec.) solenoid
- Inrush current: 0.290A at 50/60 Hz
- Holding current: 0.091A at 50/60 Hz
- Solenoid Coil resistance: 70-85 Ohms (4.4° C – 43° C)
