LOW RATE: 3.7 TO 30.6 GPH (13.8 to 115.7 l/h)

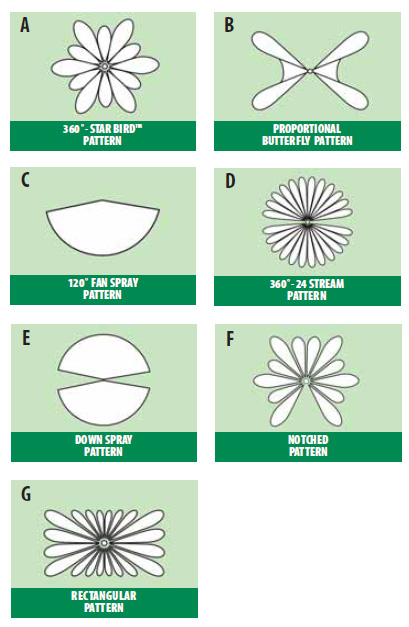

The unique design of the Rain Bird® micro spray deflectors allows the system to grow along with the maturation of the crop. Micro-Quick™ Sprays help provide for a more efficient use of water, chemicals, and energy.

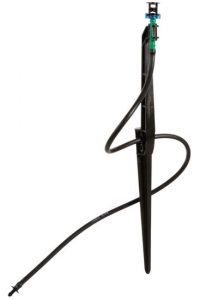

RAIN BIRD MICRO QUICK SPARAY
Operating Pressure 10 to 30 psi (0.69 to 2.07 bar)
Flow Range 3.7 to 30.6 gph (13.8 to 115.7 l/h)
Wetted Diameter Range 3 to 28 feet (0.91 to 8.5m)
Filtration Recommendation varies by nozzle selection & Ranges from 80 to 200 mesh (74 to 180 micron)
Distribution/Transfer Tubing Standard length in assembly: 36” (0.91 m), call for custom length options 1-800-HELLO-AG & Tubing Size: OD: 0.25” (6.4 mm), ID: 0.17” (4.3 mm), wall thickness: 0.04” (1mm)
Packaging Data Assembled sprays can be ordered in increments of 1; case quantity of 400, Nozzles and deflectors can be ordered in increments of 200 pieces; case quantity of nozzles is 3,000, case quantity of deflectors is 5,000, Stakes can be ordered in increments of 1; case quantity of 130 & Transfer assemblies can be ordered in increments of 100; case quantity of 700
