RAIN BIRD Cyclik Wireless

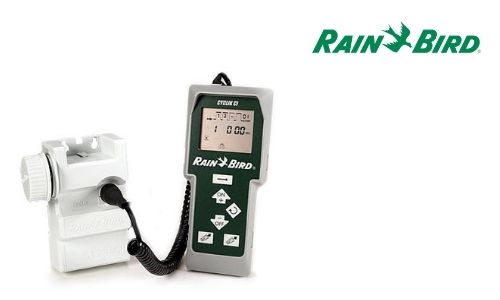

Cyclik Wireless Automatic Control System
The only Rain Bird controller that allows multiple valves to be time synchronized, providing greater flexibility and control. Connect the control module to the solenoid, and the solenoid to the valve. Now download your easily programmed irrigation schedule from the Field Transmitter to the Control Module via a weatherproof optical port. It’s that easy.
The Rain Bird® CYCLIK™ wireless control system is battery operated for economical automation of an irrigation system, without AC power and without control wires.
- The CONTROL MODULE has a 9-volt battery located in a weatherproof enclosure and operates latching solenoids to interrupt water flow to the valve chamber and provide on/off control of up to four valves.
- The FIELD TRANSMITTER uses simple programming steps to create a coordinated irrigation schedule for up to 85 control modules. Programs are loaded into the optical port of the control modules through an infra-red link.
- The simple programming menu in the field transmitter is used to set up the irrigation schedule for each valve. Then, the transmitter is taken to the field to load the program into each control module via the optical port. After the programs are loaded, each valve will operate until a new program is entered. The programming can be created to repeat a sequence, or operate one time, then remain off.
-
Additional Features
Manual control
All Cyclik products have the option of manual control with the field transmitter to close or open a valve immediately.
ON/OFF Control
An ON/OFF mode is also available. In the OFF mode, the program is kept from operating (and valves are not allowed to open) until the control modules receive an ON command. This feature is used often during rainy periods when the grower does not wish to irrigate, but wants to store the program in the control modules for activation in the future.
Program Review
The system also allows the grower to take the field transmitter to the field and review the program in each control module by connecting the optical port and choosing this key.
There are two models of field transmitters for different irrigation applications:
JA1100: CYCLIK CI Field Transmitter
Open and close valves in a sequence.
Key Features
- Works with single station control modules
- Max irrigation time is 23 hours 55 minutes
- Max valve overlap is 120 seconds
- Max 14 days between irrigation cycles
- Up to 85 control modules
JA1300 : CYCLIK Micro Field Transmitter
Open and close valves at specific times per day.
Micro Mode A Key Features
- 1, 2, or 4 station control modules
- Stations control up to 8 start/run times a day
- Assign an independent program to each station
Micro Mode B Key Features
- Up to 2 irrigation operating windows per day
- 10 seconds to 99 minute run time
- 1 minute to 99 minute “soak time”
Additional Items
- 118253: 2-Way Latching Solenoid
- JA3000: 3-Way Latching Solenoid
- JA3001: Control Module – 1 Station
- JA3002: Control Module – 2 Stations
- JA3004: Control Module – 4 Stations
- 71P51018: Bracket (attach control module to valve)
