PT. SAHABAT AGRITAMA

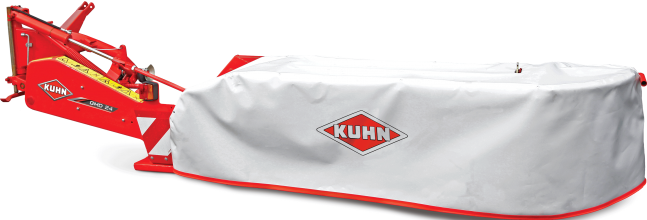

KUHN GMD SELECET SERIES
IMPLEMET PEMOTONG RUMPUT KEBUN
KUHN GMD Selecet Series adalah implementasi yang di tarik oleh traktor yang berfungsi untuk memotong rumput pada kebun untuk keperluan pakan ternak dan lain sebagainya. di design dengan poros mendatar untuk memudahkan dalam pengangkutan sekalipun di jalanan yang sempit sekalipun.
| KUHN GMD SELECET SERIES | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| GMD 16 | GMD 20 | GMD 24 | GMD 28 | ||||||
| Working width | 5'3" (1.6 m) | 6'7" (2.0 m) | 7'10" (2.4 m) | 9'2" (2.8 m) | |||||
| Transport width | 5'7" (1.69 m) | 5'7" (1.69 m) | 5'8" (1.72 m) | 5'8" (1.72 m) | Mowing angle | +35 (Drajat) -22 (Drajat) -400 with optional kit) | +35 (Drajat) -22 (Drajat) -400 with optional kit) | +35 / -15 Drajat | +35 / -15 Drajat |
| Transport height | 7'(2.13 m) | 8'4" (2.54 m) | 9'7" (2.91 m) | 10'11" (3.32 m) | |||||
| Cutterbar | 100 Series | ||||||||
| Disc type | Standard Disc | ||||||||

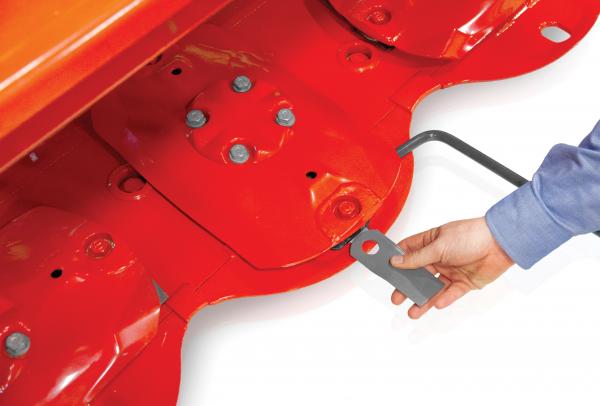

| Blade retention system | Bolted | ||||||||

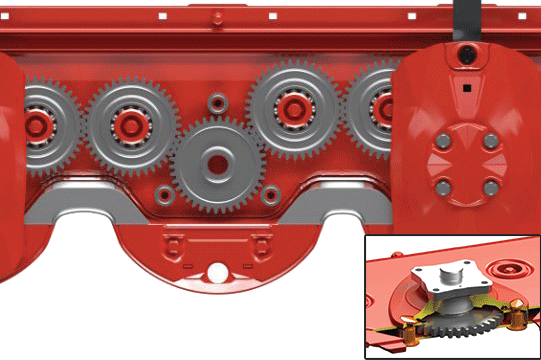

| Removable Protectadrive® disc bearing stations | Standard | ||||||||
| Hydraulic lift mechanism | Standard | ||||||||
| Cutterbar suspension | Spring | ||||||||
| Safety breakaway system | Mechaninal Lock | ||||||||
| Unlocking system from the tractor cab | Via Rope | ||||||||
| Transport width | 5'7" (1.69 m) | 5'7" (1.69 m) | 5'8" (1.72 m) | 5'8" (1.72 m) | Mowing angle | +35 (Drajat) -22 (Drajat) -400 with optional kit) | +35 (Drajat) -22 (Drajat) -400 with optional kit) | +35 / -15 Drajat | +35 / -15 Drajat |
| Adjustable lower links | Standartd | ||||||||
| Headland turn position | Tractor hitch lift plus hydraulic valve | ||||||||
| Average swath width | 3'7" (1.1 m) | 4'7" (1.4 m) | 7'7" (1.7 m) | 6'7" (1.7 m) | |||||
| Outside swath wheel | Standard | ||||||||
| Hitch | Cat. 1 or 2 | Cat. 1 or 2 | Cat. 2 | Cat. 2 | |||||
| Transport position | Vertical folding via hydraulic cylinder | ||||||||
| PTO Speed | 540 RPM | ||||||||
