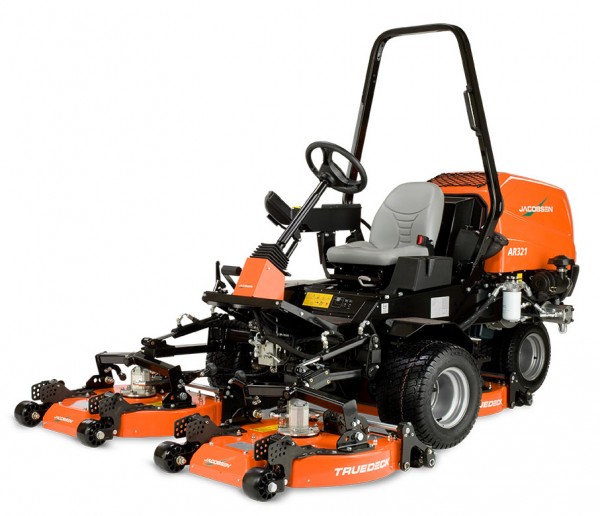

JACOBSEN AR321
AR321 CONTOUR ROTARY TRIM MOWER
Jake’s Signature Cut Trusted by Generations combines with contour following to give your golf course the after cut finish it deserves. Adjustments and maintenance on the AR321 articulated rotary mower are quick and easy, so you can spend more time on the course.
KEY ATTRIBUTES
| MOWER CUTTING WIDTH | 72″ (182.88 cm) |
|---|---|
| MOWER HEIGHT OF CUT | 0.75-3.5″ (19-88 mm) |
| MOWER ENGINE | Kubota® 24.8 HP (18.6kW) diesel |
| CUTTING CAPACITY | 4.5 acres/hr at 6mph (1.83 ha/hr. at 10km/h) |
| TRANSPORT SPEED | 8.7 mph (14 km/h) |
| FUEL/BATTERY CAPACITY (+RUN TIME) | 7.6 gal. (28.7 L) |
| MOWER WARRANTY | 2 Years |
DECKS AND CUTTING UNITS
| NUMBER AND SIZE | 3 x 27″ (68.58 cm) TrueDeck rotary cutting units |
|---|---|
| BLADE MATERIAL | Hardened, carbon steel alloy |
| DECK LIFT/LOWER | Armrest mounted switch |
| WEIGHT TRANSFER | Adjustable hydraulic, electronically activated operator control |
| DECK CONSTRUCTION | 9-gauge, stamped modular deck construction |
TRACTION, BRAKES AND SPEED
| TRACTION DRIVE | Parallel-series”on demand” 3WD |
|---|---|
| DECK DRIVE | Fixed displacement hydraulic |
| HYDRAULIC SYSTEM | 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil. |
| SERVICE BRAKES | Dynamic braking through hydrostatic drive |
| PARKING BRAKES | Service-free electronic wet disc | STEERING | Hydraulic power steering with tilt wheel |
| MOWING SPEED | 6.2 mph (10 km/h) |
| REVERSE SPEED | 3.7 mph (6 km/h) |
WEIGHT AND DIMENSIONS
| WEIGHT | 1986 lb. (901 kg) |
|---|---|
| WEIGHT | 1986 lb. (901 kg) |
| LENGTH | 122″ (3.10 m) |
| HEIGHT (ROPS UP) | 82″ (2.06 m) |
| WHEEL BASE | 61″ (1.54 m) |
| TRANSPORT WIDTH | 77″ (1.96 m) |
| WORKING WIDTH | 77″ (1.95 m) |
