PT. SAHABAT AGRITAMA
EMDEK MOUNTED SPRAYER
IMPLEMENT PENYEBAR PESTISIDA
Emdek mounted sprayer adalah implement traktor yang dirancang untuk melakukan penyebaran pupuk, pestisida dan herbisida pada perkebunan seperti: Perkebunan tebu, sawit, karet dll. Tersedia dalam beberapa model pilihan. Dapat digunakan dengan traktor 15 sampai 100 HP. Sprayer Boom Veritkal 1.5 Meter dan Horizontal 12 Meter.

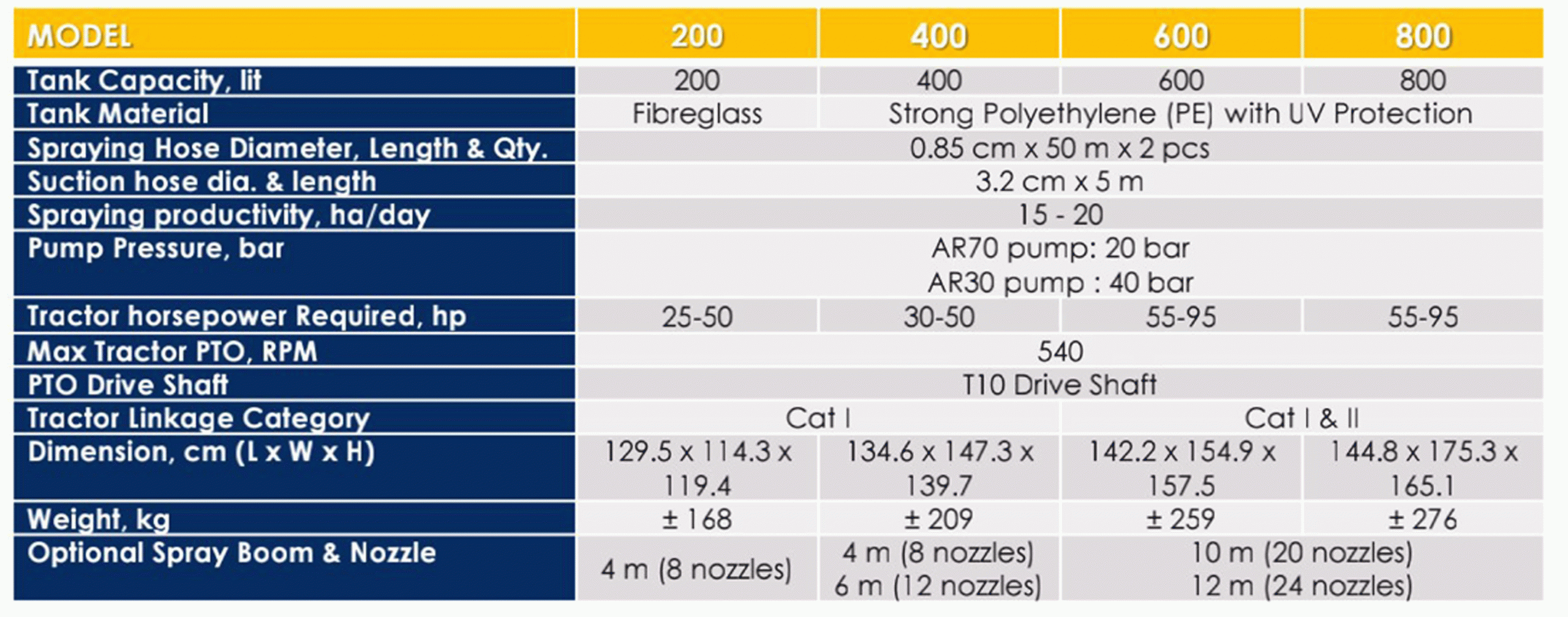

| MODEL | 200 | 400 | 600 | 800 | |
|---|---|---|---|---|---|
| Tank Capacity (Liter) | 200 Liter | 400 Liter | 600 Liter | 800 Liter | |

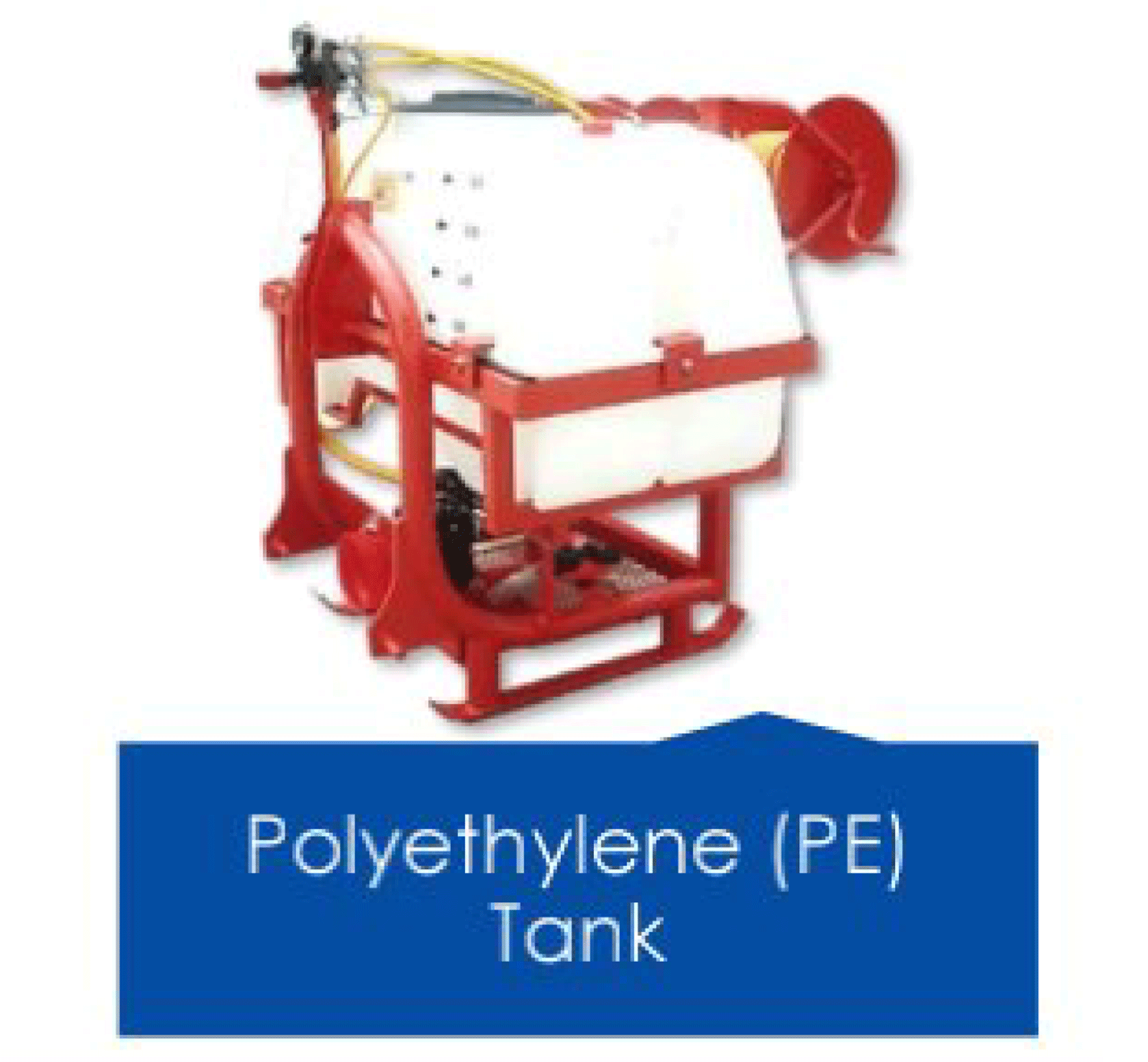

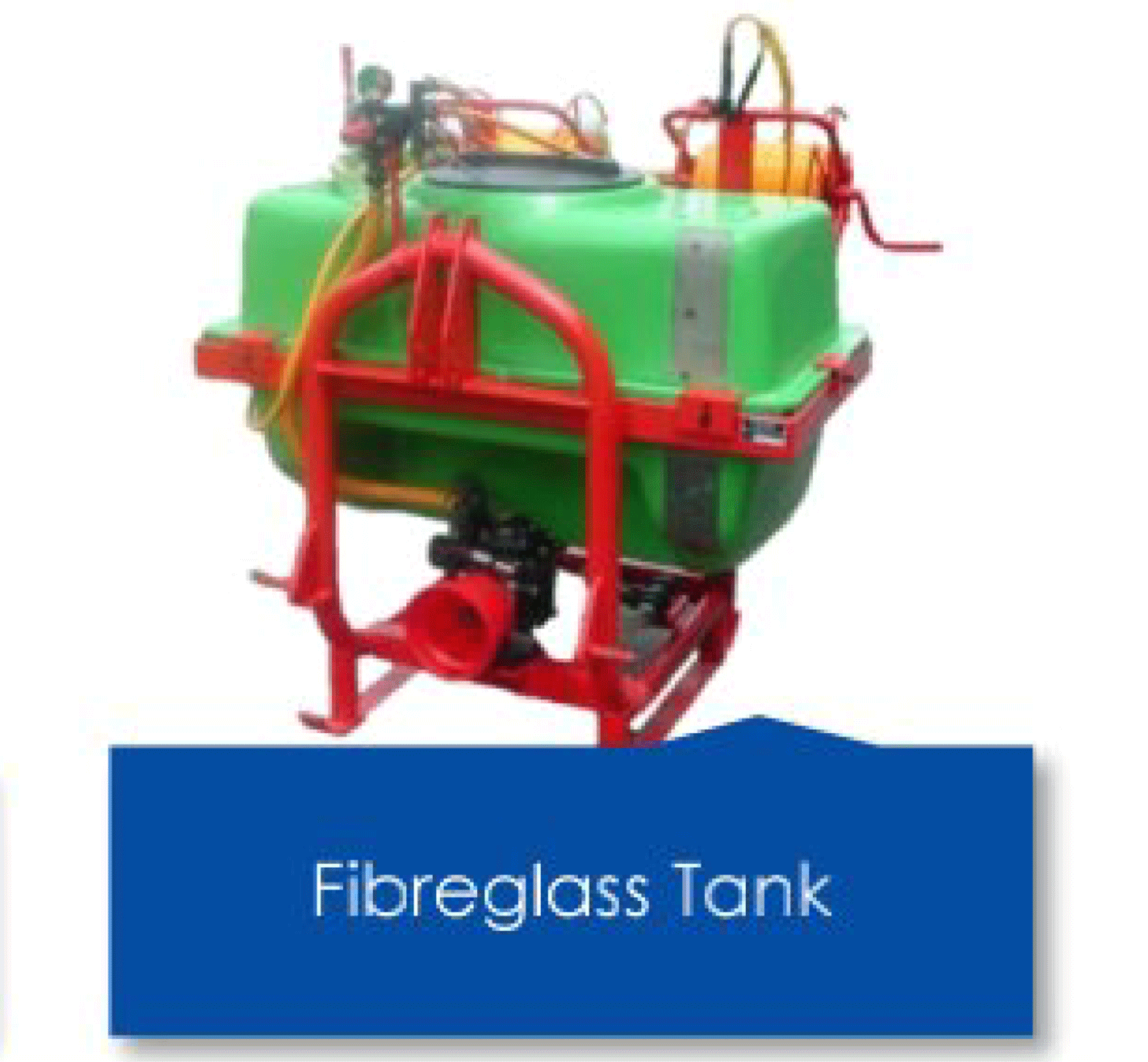

| Material fo Tank | Fiberglass or Polythylene (PE) | ||||

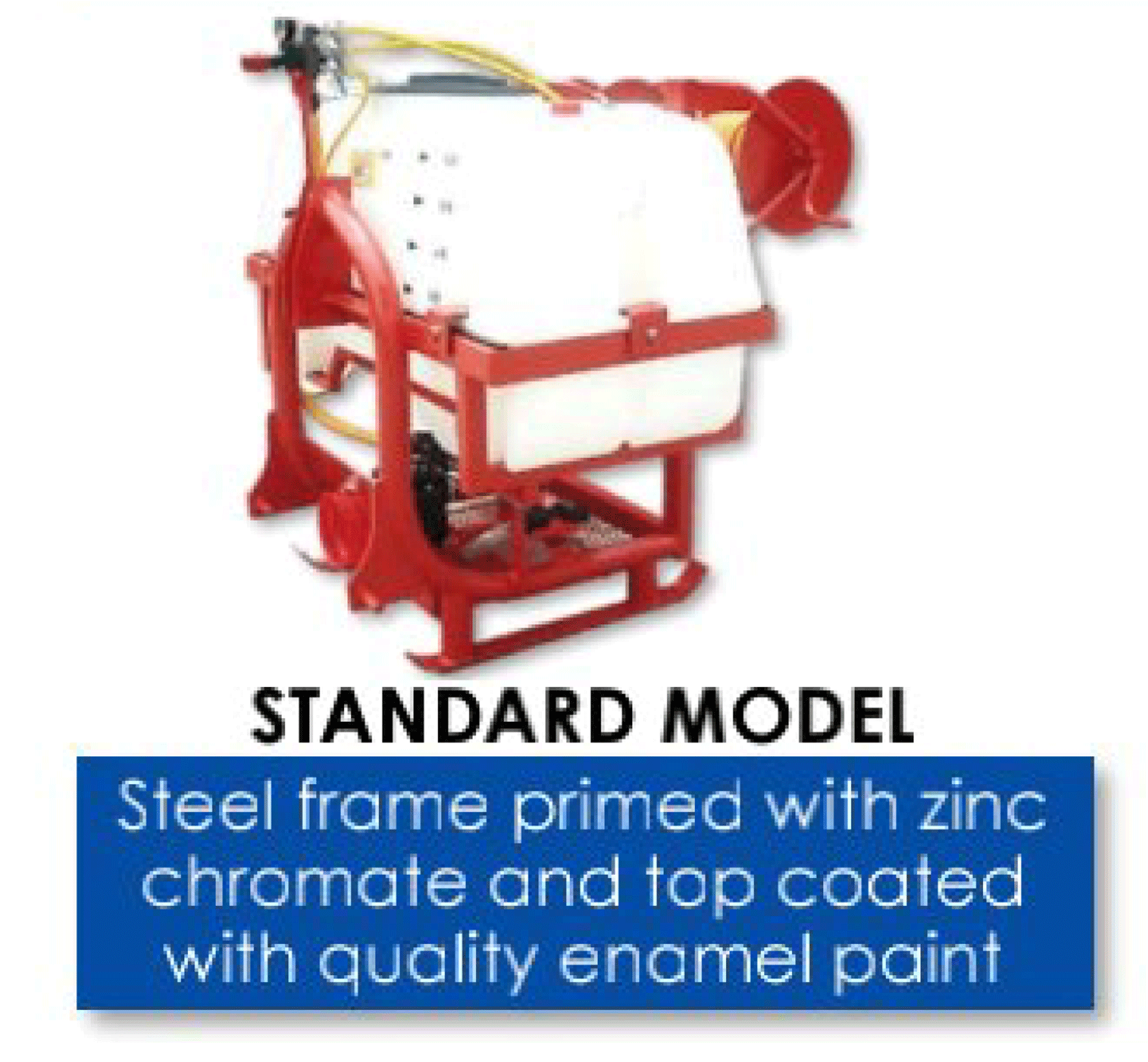

| Frame of standard model | Primed with zinc chromate and top coated with quality enamel paint | ||||

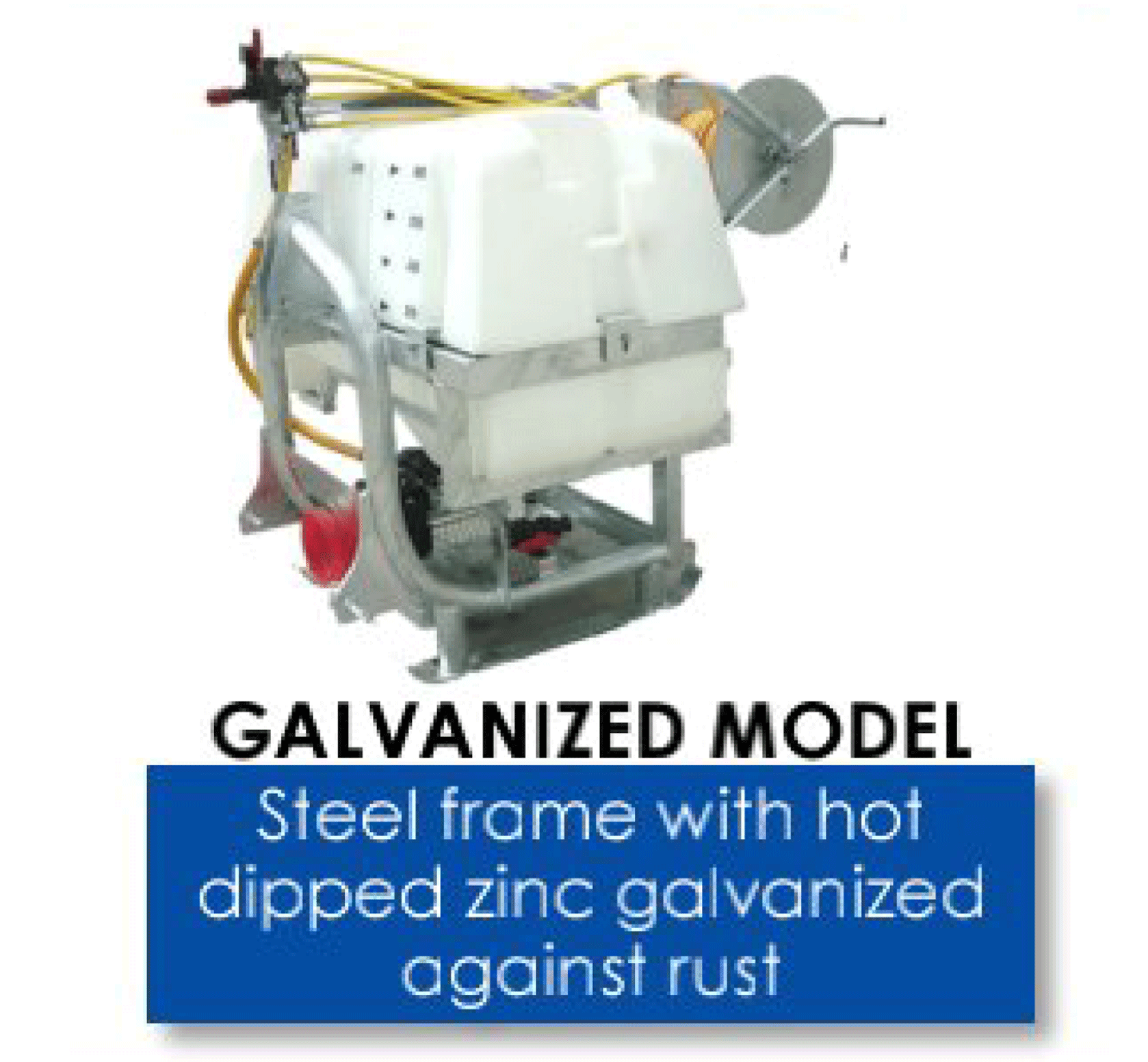

| Frame for galvanized model | Hot dipped zinc galvanized | ||||
| Tractor pto rpm | 540 | 540 | 540 | 540 | |
| Cat 1 | Cat 1 | Cat 1 | Cat 2 | Cat 2 | |
| Tractor HP | 15 - 50 | 25- 50 | 60- 100 | 60- 100 | |
| Diaphragm Pump | AR30/70 | AR30/70 | AR30/70 | AR30/70 | |
| Pressure Control Unit | VDR50/VDR20 | VDR50/VDR20 | VDR50/VDR20 | VDR50/VDR20 | |
| PTO Drive shaft | T10 | T10 | T10 | T10 | |
| Hose Reel | 2 | 2 | 2 | 2 | |
| High pressure spray hose | 50m | 50m | 50m | 50m | |
| Hand Lances | 1 | 1 | 1 | 1 | |
| Agitator | 1 | 1 | 1 | 1 | |
| 3 Way Valve | 1 | 1 | 1 | 1 | |
| Extternal Suction Filter | 1 | 1 | 1 | 1 | |
| Suction strainer with 5m hose | 1 | 1 | 1 | 1 | |
| Hand wash tank (10 L) | 1 | 1 | 1 | 1 | |
